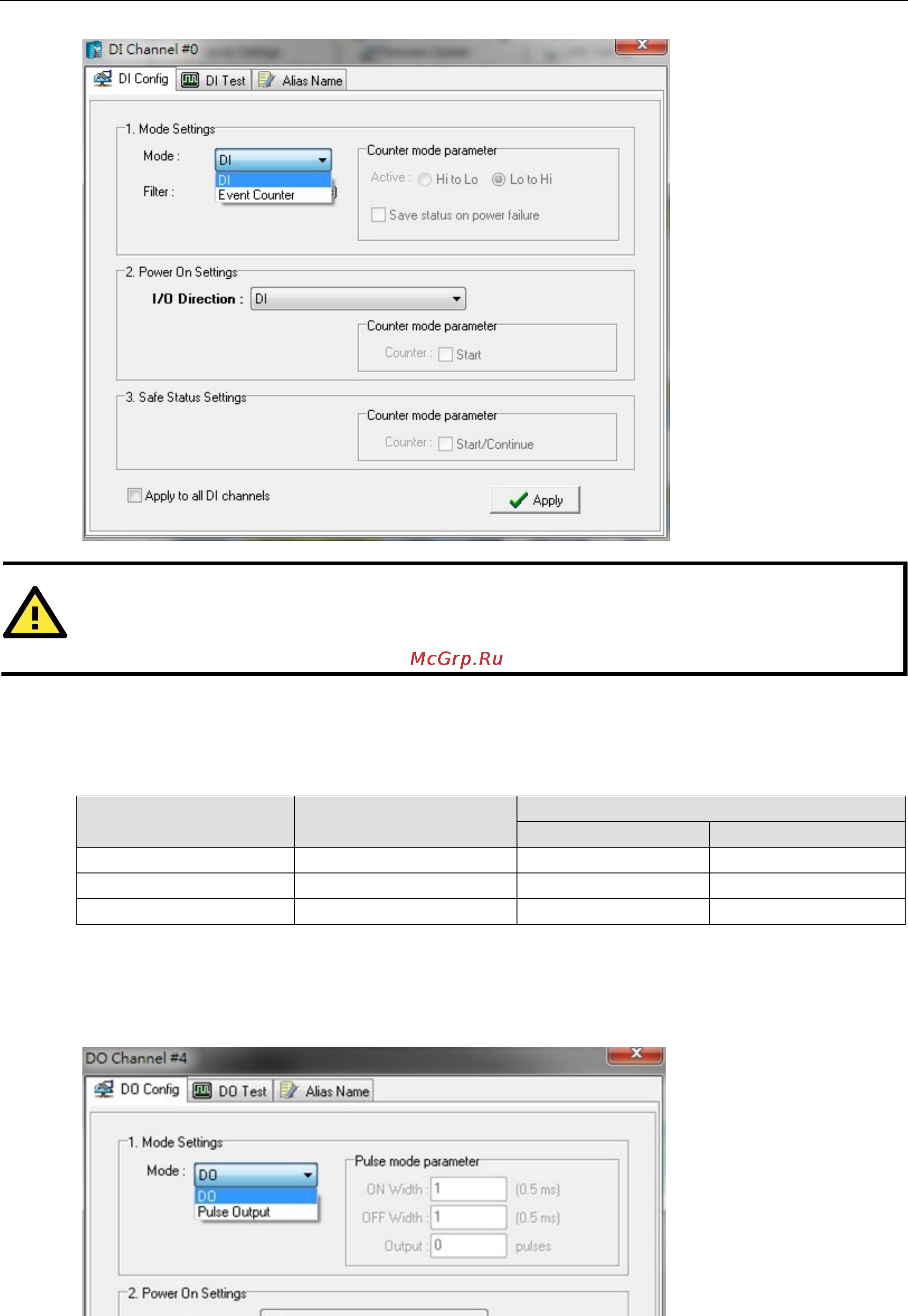

ioLogik W5300 Click&Go Logic
4-6
ATTENTION
On this
panel, be sure to select Start under Counter mode parameter on Power On Settings to
activate
the Event Counter channel.
Digital Output Mode Selection
A DO channel can be set to DO or Pulse Output mode. The Relay Output behavior is the same as DO.
Model
Number of Digital
Output Channels
Mode Selection
DO Pulse Output
ioLogik W5340-HSPA 8 DIOs + 2 Relays
ioLogik W5340 8 DIOs + 2 Relays
ioLogik W5312 8 DOs + 4 DIOs
When logged in as an administrator, double click on a channel on the I/O Configuration panel to configure
that channel’s settings. A window will open with configuration options for that channel. Each DO channel will be
configured to act as either a DO or Pulse Output channel, according to the Mode Settings. To switch between
DO and Pulse Output channel operation, select the desired mode under Mode Settings.
