ioLogik W5300 The ioAdmin Utility
3-17

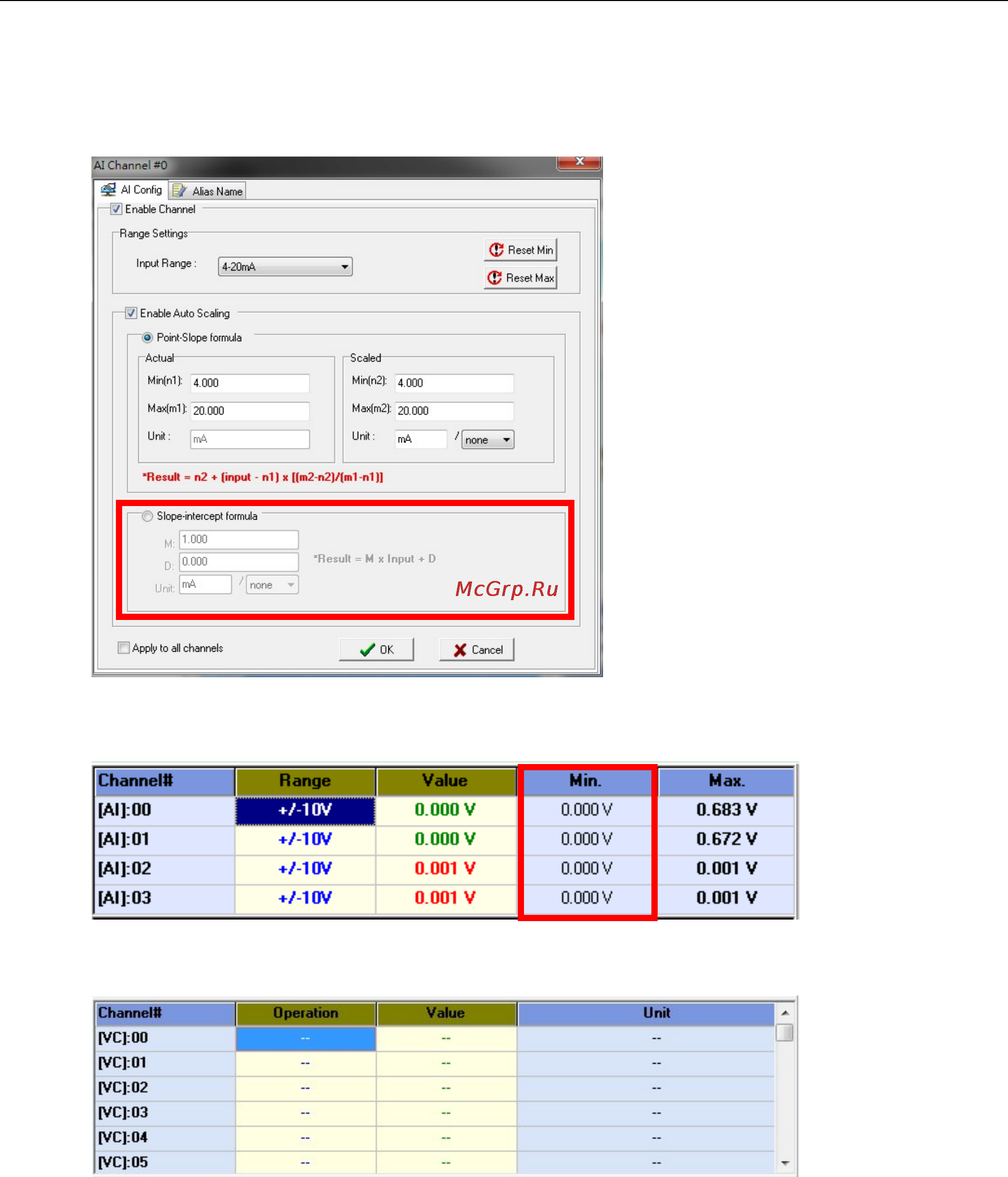

Auto Scaling with the slope-intercept formula provides linear conversion with one ratio (M) and offset (D).
Offset can be an initial value of field device. Ratio can help enlarge or reduce the scale by specifying a
proportion. It is also easy to modify the values in the database if we need to use new ratio and offset values in
the future.
The Reset Min and Reset Max buttons will clear the minimum or maximum values recorded and displayed in
the ioAdmin main window.
Configuring Virtual Channels
