![Moxa ioLogik W5340-HSPA [124/194] Log file upload with ftp](/img/pdf.png)
Moxa ioLogik W5340-HSPA [124/194] Log file upload with ftp
![Moxa ioLogik W5340-T [124/194] Log file upload with ftp](/views2/1201254/page124/bg7c.png)
ioLogik W5300 Planning and Assistance
5-16
Log File upload with FTP

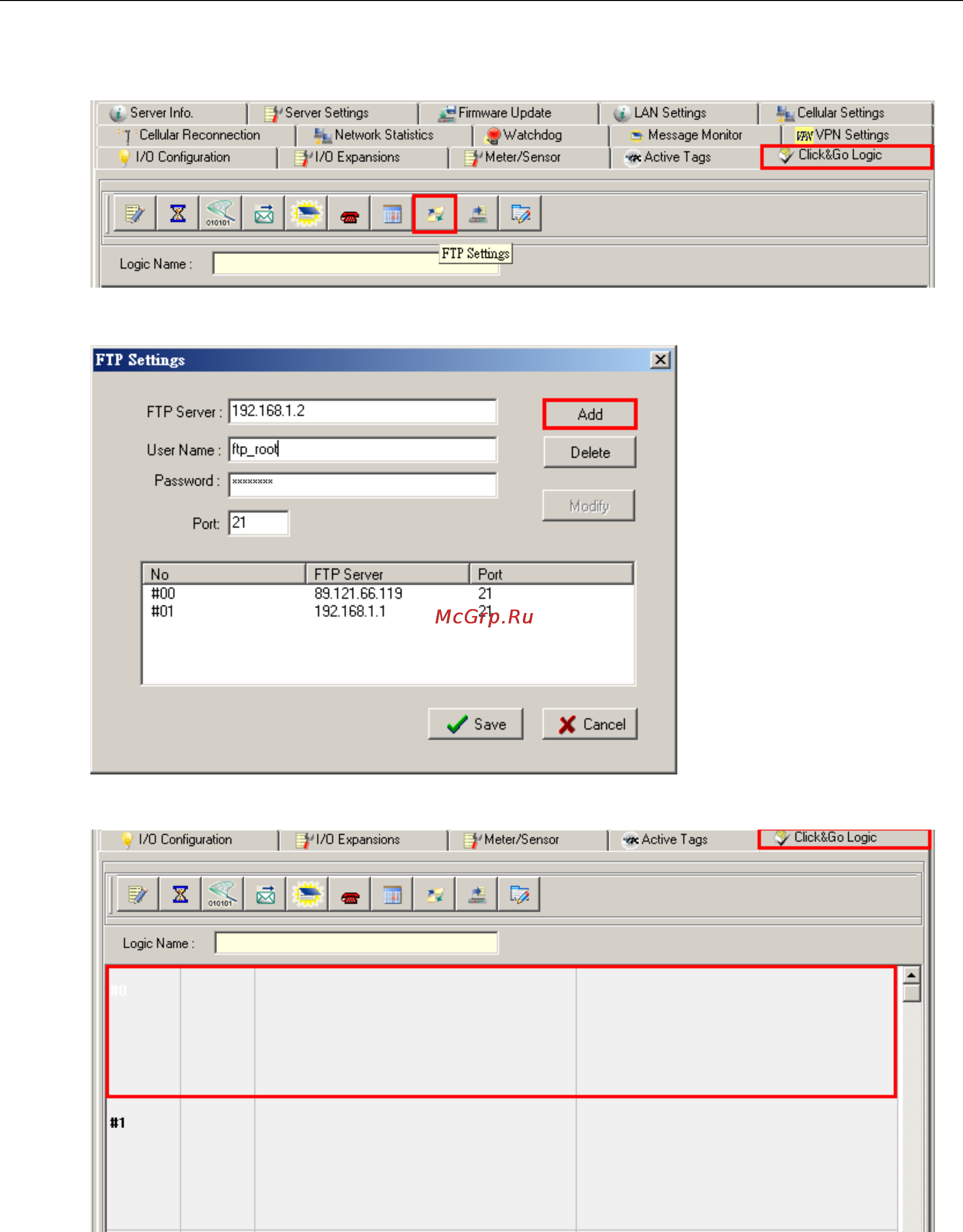

Step 1: Click the FTP settings icon on the Click&Go Global Variables toolbar.
Step 2: Specify the FTP server address and account, and then click Add.
Step 3: Double click on the Click&Go rule entry.
