ioLogik W5300 Click&Go Logic
4-35
Activating the Rule-set
Upload, Restart, and Run
The rules that are displayed on the Click&Go Logic panel include the current rule-set, which acts as the brain of
your ioLogik system. The rule-set must be activated as follows for the ioLogik to commence local control
operation:
1. The rule-set must first be ioAdmin to the ioLogik. To download the rule-set, click Upload
to ioLogik from the Rule-set Management bar.

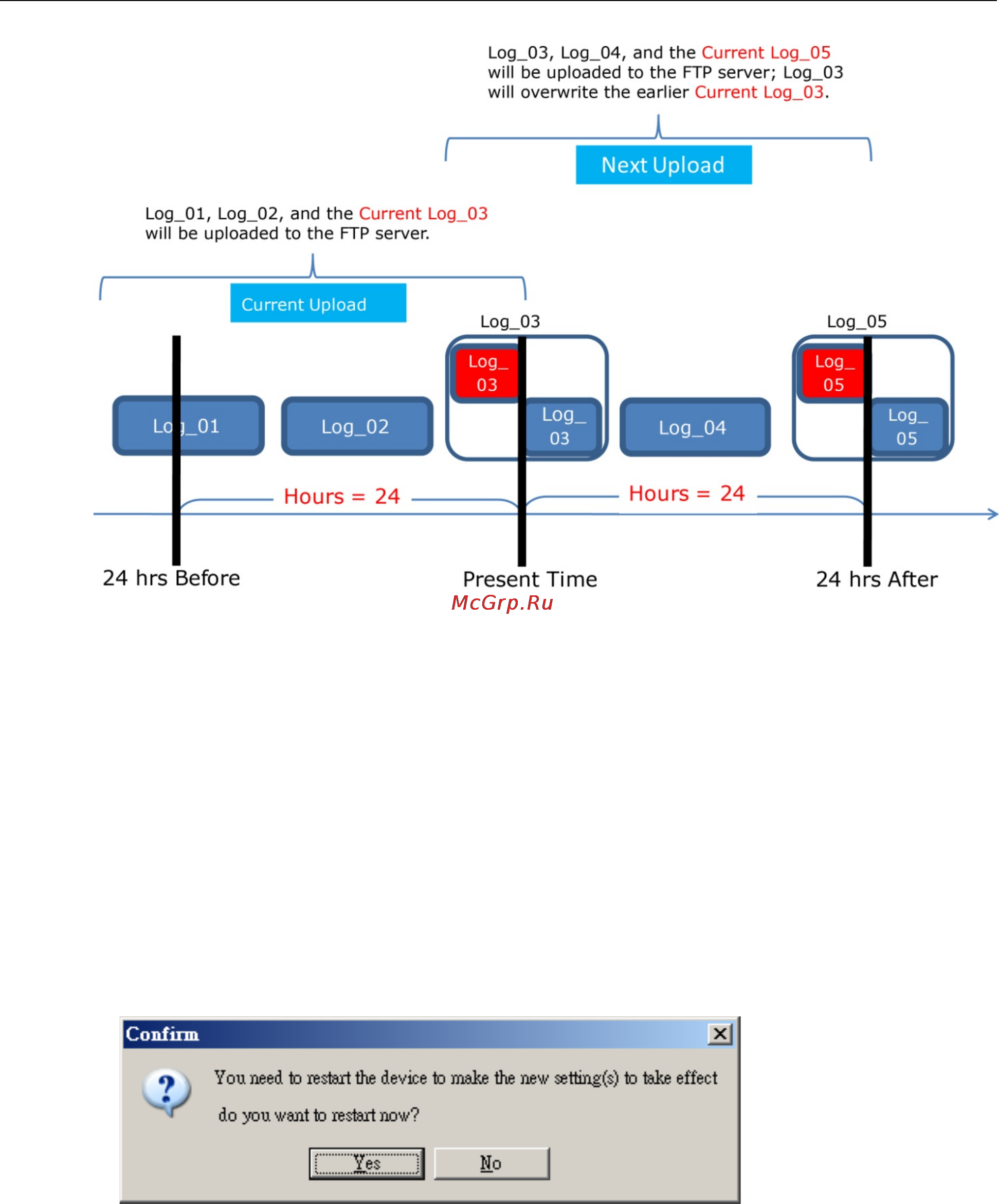

2. After the rule-set has been downloaded, ioAdmin will prompt to restart the ioLogik automatically after
clicking “yes” to confirm. Do not use the reset button, since doing so will load all factory defaults and erase
your rule-set from memory.
3. After the ioLogik has been restarted, the rule-set must be activated. Log in to ioAdmin as administrator, go
to the Click&Go Logic panel and click Run in the Rule-set Management bar. The rules in the rule-set will now
be active.
When the rule-set has been activated, it will remain active even when the ioLogik is disconnected from the host
computer or from the network. If the ioLogik is turned off, cellular I/O operations will resume when it is turned
back on, allowing you to use the ioLogik W5300 for PC-independent automation.
