ioLogik W5300 Getting Started
2-12
Detailed instructions:
1. Power off the ioLogik W5300.
2. Insert a SIM card that can connect to the cellular network.
3. Connect to ioAdmin via the Ethernet port of the ioLogik.
4. Power on the ioLogik and start ioAdmin.
5. After connecting ioAdmin and the ioLogik W5300, log in with the administrator password.

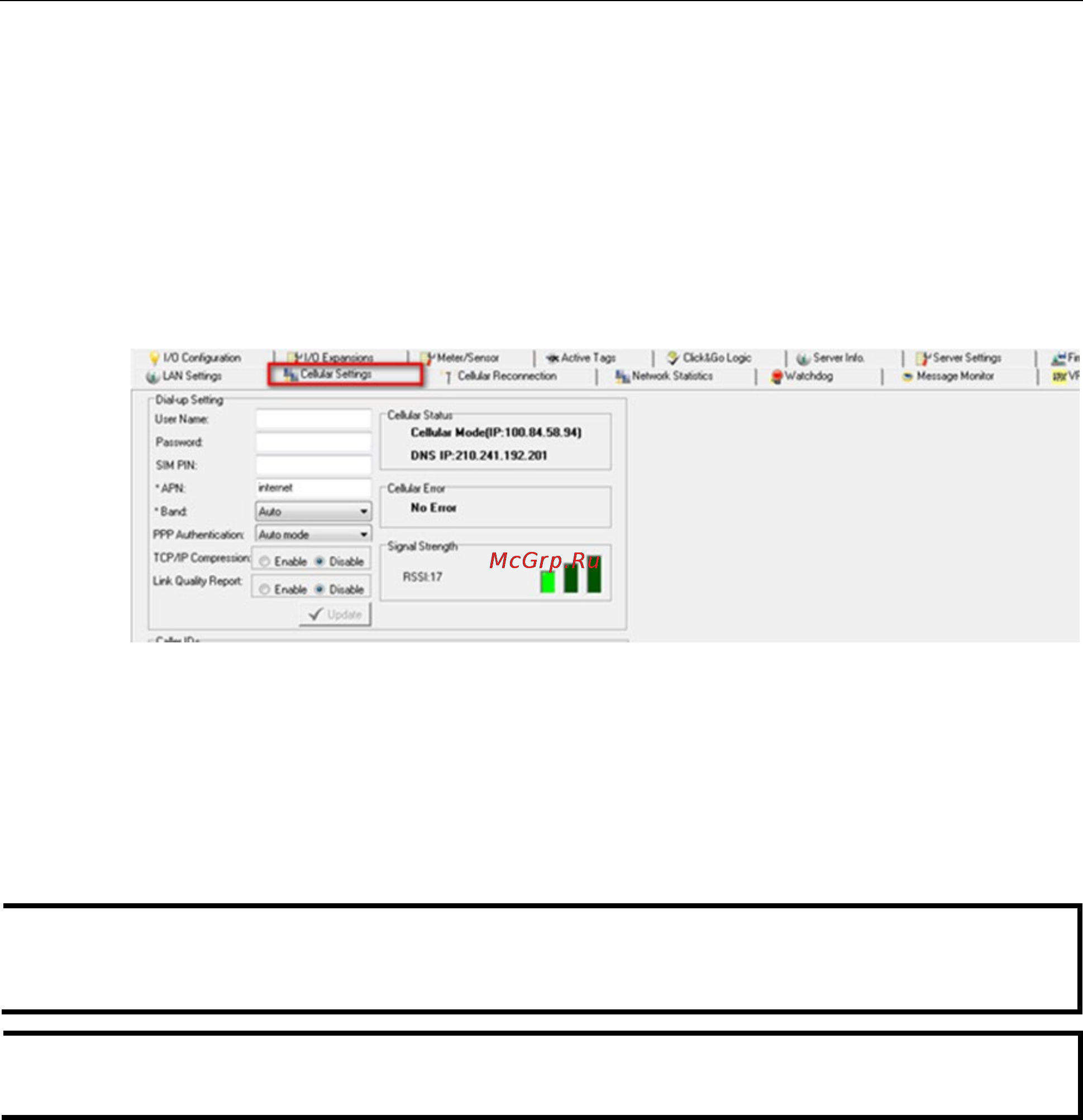

6. To set up your cellular connection, click the Cellular Settings tab and enter your User name, Password,
SIM pin code, and APN of your Cellular Provider (contact your local Cellular Service Provider for assistance)
than click Update. When you click Update, the system will prompt you to restart to activate the new
settings.
7. The Operation Mode must also be correctly selected for your application.
(Default Operation Mode: Cellular Always On)
8. After rebooting, the W5300 will try to connect to the Cellular network, with the connection status shown in
the Cellular Status column. If the connection is established, the IP address will appear in this column. If
the connection is not successful, you will receive an Error message. Additional details can be found in
Appendix F.
9. For testing, Once you have obtained the public IP address for the ioLogik W5300, try to PING from the DOS
shell (e.g., type C\:>ping 61.56.74.10). If the W5300 is using a private IP, you can skip this step.
NOTE
Be sure to configure the LAN settings first to make sure the LAN IP Address is on the same subnet
as the PC running ioAdmin.
Follow the instructions to restart the ioLogik and then proceed with the settings
on the Cellular Settings page.
NOTE
Be sure to select the Cellular Setting
Operation Mode Cellular Always ON when performing the
connection test.
Installing AOPC on a Host with a Static IP Address
Moxa’s Active OPC Server™ is an OPC software driver for an HMI or SCADA system. It seamlessly connects
Moxa’s ioLogik products to a wide variety of SCADA systems, including the most popular: Wonderware, Citect,
and iFix. Active OPC Server™ conforms to the OPC Foundation’s DA 3.0 data access standard. Active OPC
server must use public, static IP address.
1. To install Active OPC Server, it can be downloaded from Moxa’s Website, and may be found from the
support page, www.moxa.com/support/. After downloading the AOPC software, unzip it and run setup.exe.
The installation program will guide you through the installation process and install the Active OPC Server
Utility.
For more details on AOPC installation and use, refer to the Active OPC User’s Manual.
