ioLogik W5300 Planning and Assistance
5-25

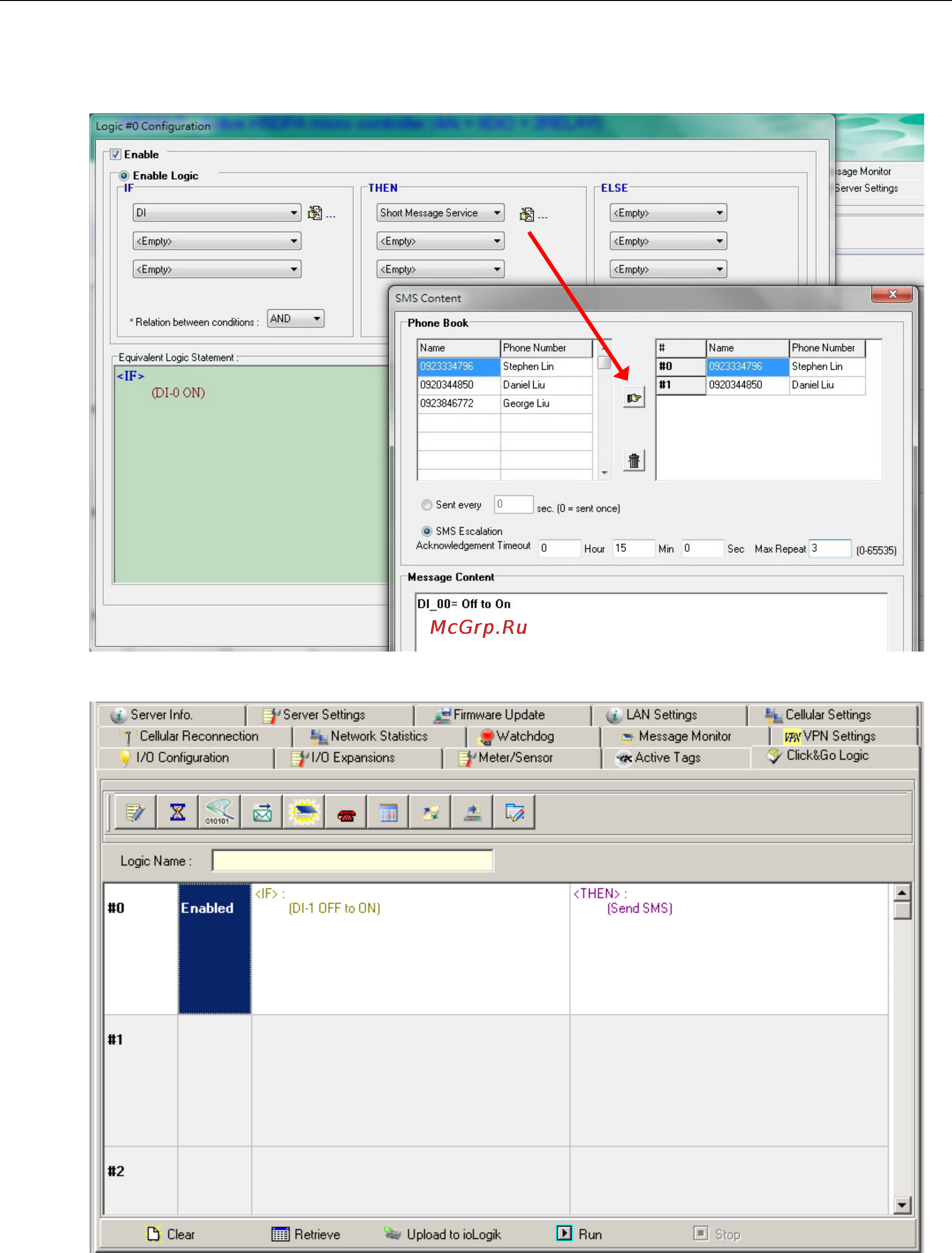

Step 3: In the THEN settings, select Short Message Service and click the Properties button to see detailed
settings. On the SMS Content panel, select the receivers from the phone book. Note that multiple receivers
can be selected. Select SMS Escalation to activate this function.
Step 4: Click Upload to ioLogik and Run to activate the logic.
