ioLogik W5300 The ioAdmin Utility
3-42
• Modbus Serial Tags: This function allows users to attach a serial Modbus/RTU meter to the ioLogik
W5300’s serial port and create the serial tags in the Active OPC Server so that a SCADA system can access
this serial data directly via OPC connections. In this case, the Modbus/RTU serial devices will appear to be
embedded in the ioLogik W5300.
ATTENTION
If
the Serial Tunnel setting is used, Cellular Setting
Operation Mode
Cellular should be set to
“Cellular
Always On.”
Otherwise, the Cellular connection will disconnect and a serial tunnel will not be created.
ATTENTION
Because t
here are major structural differences between firmware versions, you should upgrade from earlier
version
s to firmware V1.3 or above for the ioLogik W5312 series, and V1.5 or above for the ioLogik W5340
series
to reset all settings to the factory defaults. You should NOT perform the upgrade remotely over the
Internet.
Network Statistics

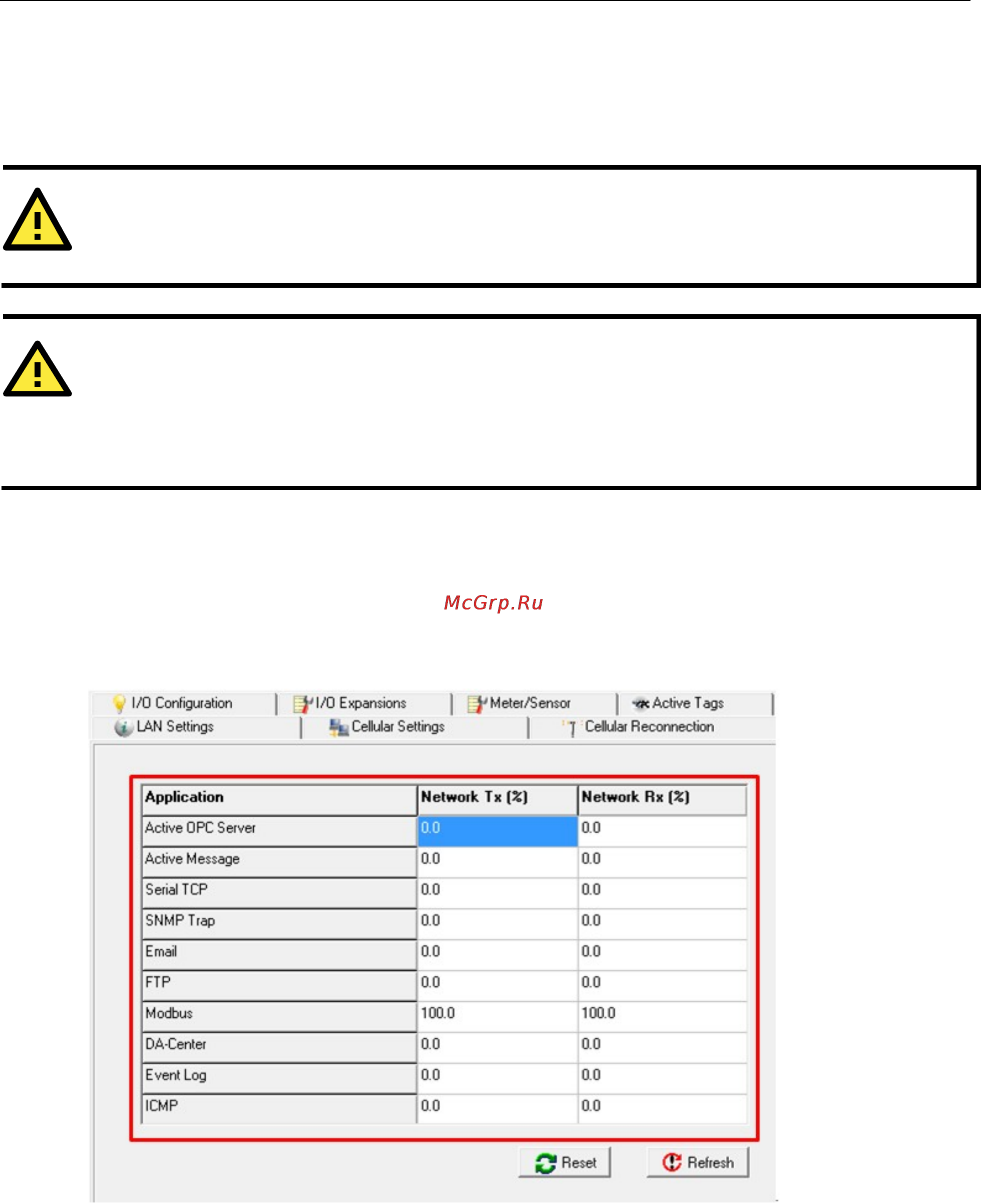

Network Statistics help monitor the usage of all applications’ network flow. The applications include Active OPC
server, active message server, serial TCP, SNMP trap, Email, FTP, Modbus, DA Center, Event Log, and ICMP.
The Network Statistics Page will help you understand the overall usage of the network.
