ioLogik W5300 The ioAdmin Utility
3-8
ioAdmin Quick-Link Buttons
Quick links are a collection of commonly used features. Starting with the rightmost icon, they include search,
and a series of sorting buttons: by connection, by device type, by the device’s 58 character location descriptor
(defined in the The Server Settings Panel), or show all devices which have an AOPC client installed on them.
Auto-Scan ioLogik Devices
Auto Scan ioLogik devices
allows users to search and locate an ioLogik on the same physical
netw
ork, or specify a remote IP address to connect to a remote ioLogik.

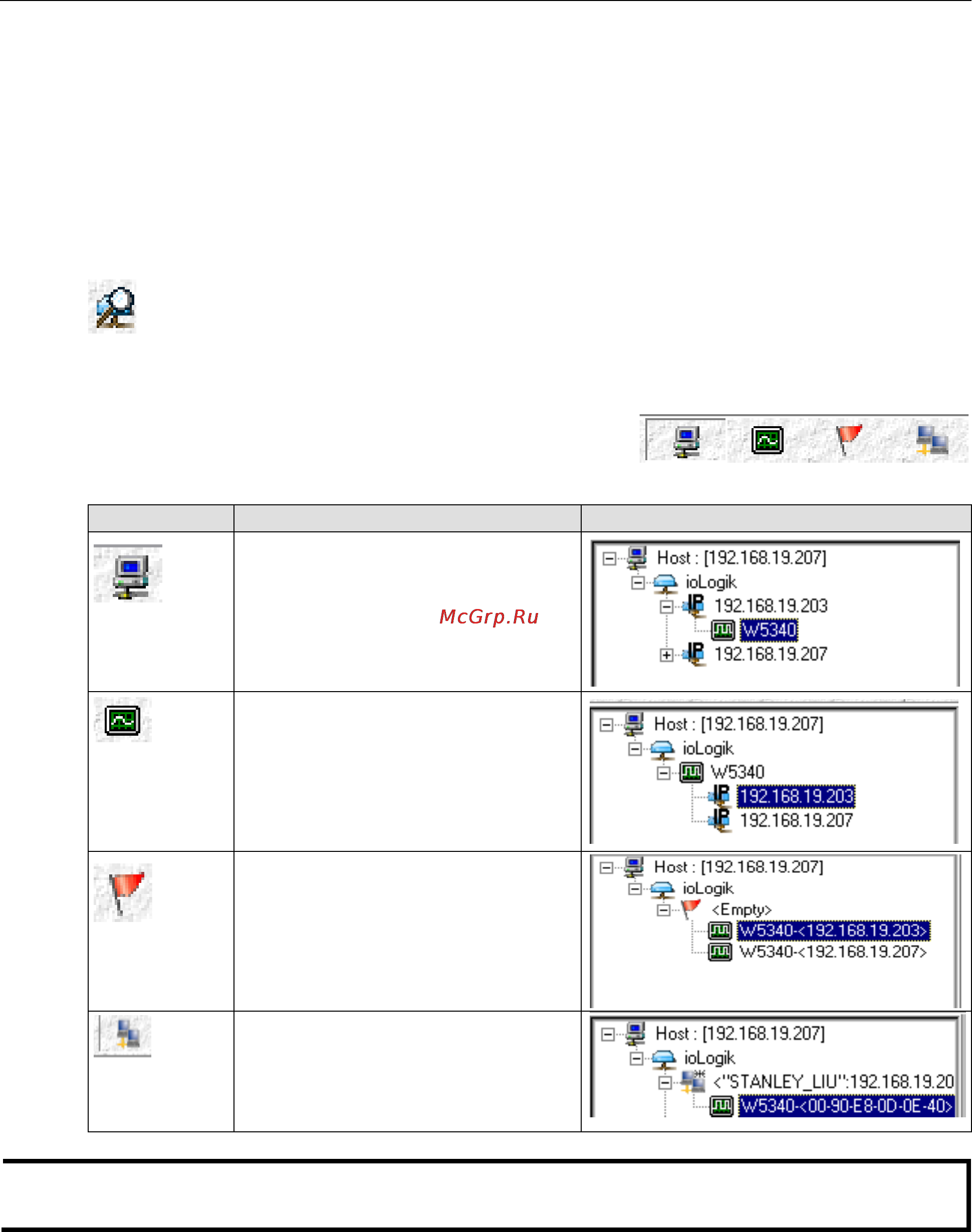

Sorting Views
These buttons give four different ways of re
-ordering devices in
the ioAdmin navigation panel. The icons are shown at right, and
explained in the table below.
ICON Navigation Panel View
Sort according to the connection:
using subnets and IP addresses
Sort according to device type
using the ioLogik model number
Sort by the ioLogik’s location field; this is
a descriptor that is defined in the
ioAdmin’s The Server Settings Panel
Show all devices that support an Active
OPC client
NOTE
The default location is
Empty. If you have not set the location field when setting up
the ioLogik W5300, the
navigation panel will
register its location as Empty, and group all devices configured so together.
