ioLogik W5300 Click&Go Logic
4-32

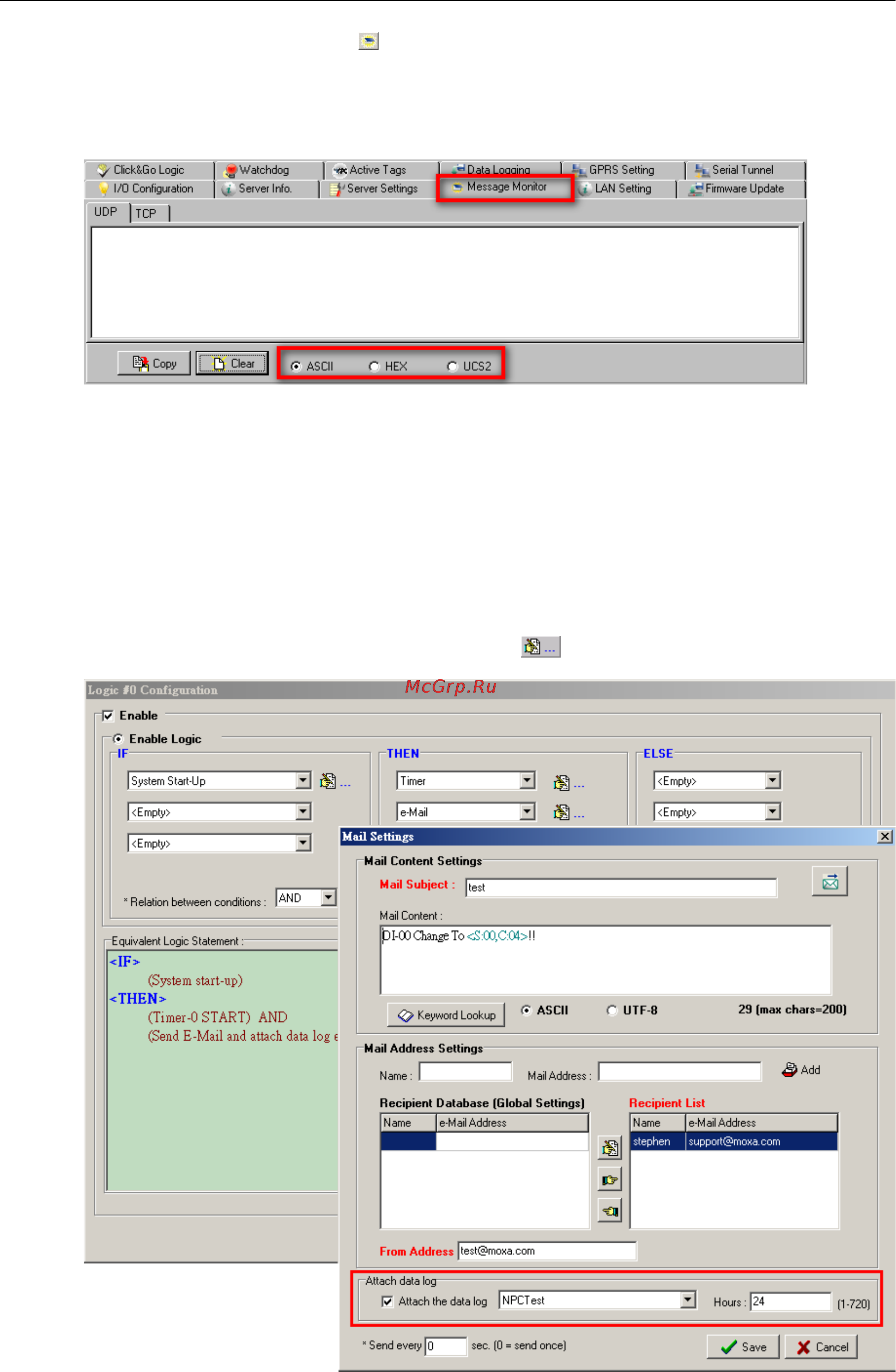

Click the Set Active Message button ( ) to configure the default parameters such as the messaging protocol
(TCP or UDP), socket port (9000 by default), and the up to 10 target message servers.
Active Messages can be received by a program using standard sockets, Moxa MXIO library, or ioAdmin’s
Message Monitor, as shown in the following screen shot:
When sending a message in HEX, each HEX value must be separated by commas. View the incoming message
on the Message Monitor panel and select the HEX checkbox. Note that certain numbers are control characters
that will not show up in the Message Monitor. When sending a unicode message, the UCS2 checkbox must be
selected. View incoming messages on the Message Monitor panel and select the UCS2 checkbox. Note that
certain numbers are control characters that will not show up on the Message Monitor panel. The maximum
number of characters is 200.
Email
The E-mail function sends a customizable e-mail to one or more mail boxes or Blackberry devices. Select the
THEN/ELSE action to e-mail and click the property button ( ) to enter the Mail Settings window.
