ioLogik W5300 The ioAdmin Utility
3-38
Authentication mode: Select the incoming/outgoing authentication mode
Authentication key: Enter the incoming/outgoing authentication key
Authentication mode Length (Bytes)
MDS 16
SHA1 20
ISAKMP/PSK
Local Identify

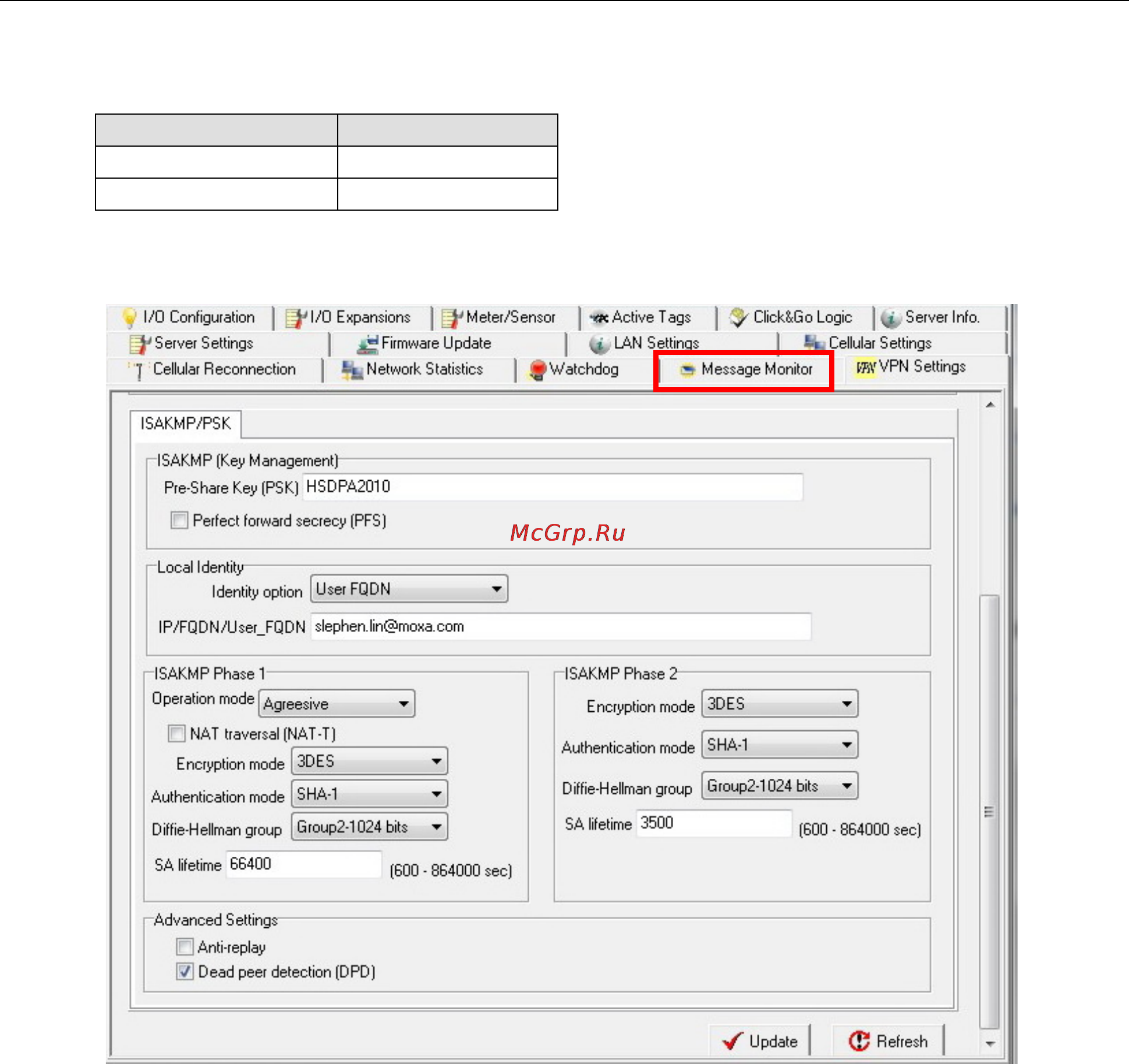

Pre-Share Key (PSK): Sets the VPN ISAKMP Pre-Shared key settings
Perfect forward secrecy (PFS): Enable or disable Perfect Forward Secrecy. PFS is an additional security
protocol (default = disable)
Identity option: Select additional ID authentication requirements for the VPN using a specific IP Address,
FQDN, or User FQDN settings
IP/FQDN/User_FQDN: Enter an ID (IP/FQDN/User_FQDN) to identify and authenticate the local VPN
Endpoint
