ioLogik W5300 Planning and Assistance
5-20

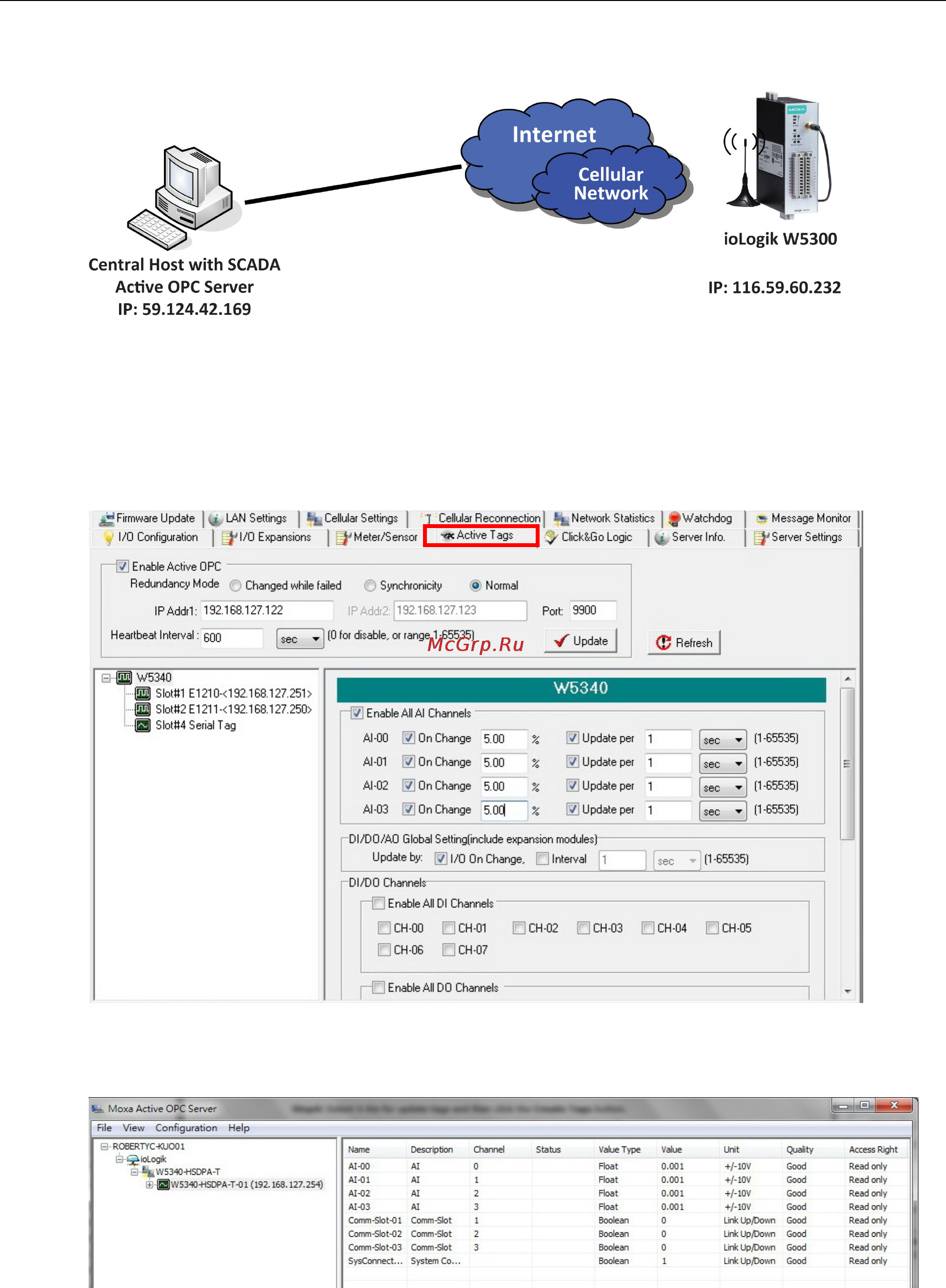

Diagram
Setup Procedure
Step 1: Install the SCADA system and Active OPC server on the same host PC with IP address 59.124.42.169.
Step 2: Open ioAdmin as administrator.
Step 3: Choose Active Tags and input the host PC IP address in the Active OPC Server Address column.
Step4: Select 4 AIs for update tags and then click the Create Tags button.
Step 5: ioAdmin will prompt you to restart the device.
Step 6: Open Active OPC server. You will see the device and data for 4 AIs in the display window.
Step 7: Connect to the SCADA system and choose the OPC server as Moxa Active OPC Server.
Step 8: Follow SCADA instruments to create data tags for these 4 analog inputs.
Step 9: After creating these 4 tags, place them in a suitable position on the SCADA screen. You can find these
values in the SCADA display.
