ioLogik W5300 Click&Go Logic

4-33

After entering the subject of an e-mail, enter the message in the Mail Content area. Dynamic fields such as

time, date, IP address, and I/O status can be inserted in your message by clicking Keyword Lookup.

NOTE

Content in the same logic entry can be sent by either Active Message or e

-mail, in which case

the content of

the messages will be the same. If you would like to send an Active Message and e

mail based on the same

event but with different content, you will need to use two separate logic entries

—

one for the Active Message

and one for the e

-mail.

SMTP server information including username/password, and the recipient database can be configured by

clicking the Set Mail Address button ( ). Click the finger icon ( ) to move the selected address from

the Recipient Database to the Recipient List.

To manually add e-mail addresses to the Recipient Database, enter the Name and Mail Address and click Add.

Once the address has been added to the Recipient Database, use the finger icons to move it to or from the

Recipient List. Select Attach data log to specify that the log profile and period will be attached to the email.

Set Hours to 24 if you would like to receive all logs generated in the past 24 hours.

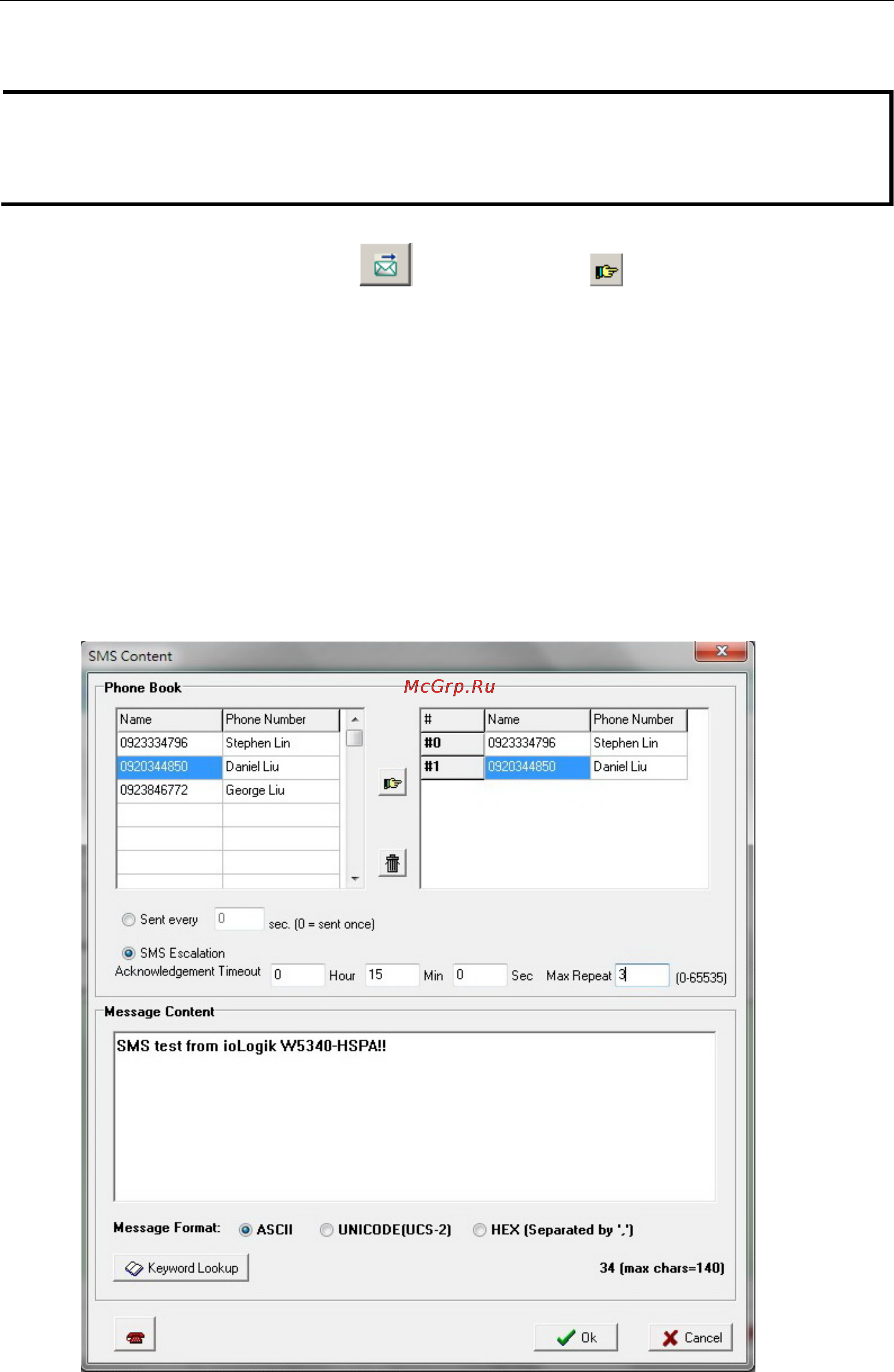

Short Message Service

The Short Message Service function allows the user to configure the SMS in detail, including selecting

recipients from the phone book, defining the escalation and acknowledgements, and defining the content of the

SMS. If you select Send every__sec, the SMS will be sent to all the recipients at the same time; if you select

SMS Escalation, the SMS will be sent out in the sequence listed in the recipient list, and using the timeout

interval. A recipient will stop receiving the SMS alarm when the preset maximum repeat times is reached, or

when one receiver acknowledges receiving the SMS.
