ioLogik W5300 The ioAdmin Utility
3-32

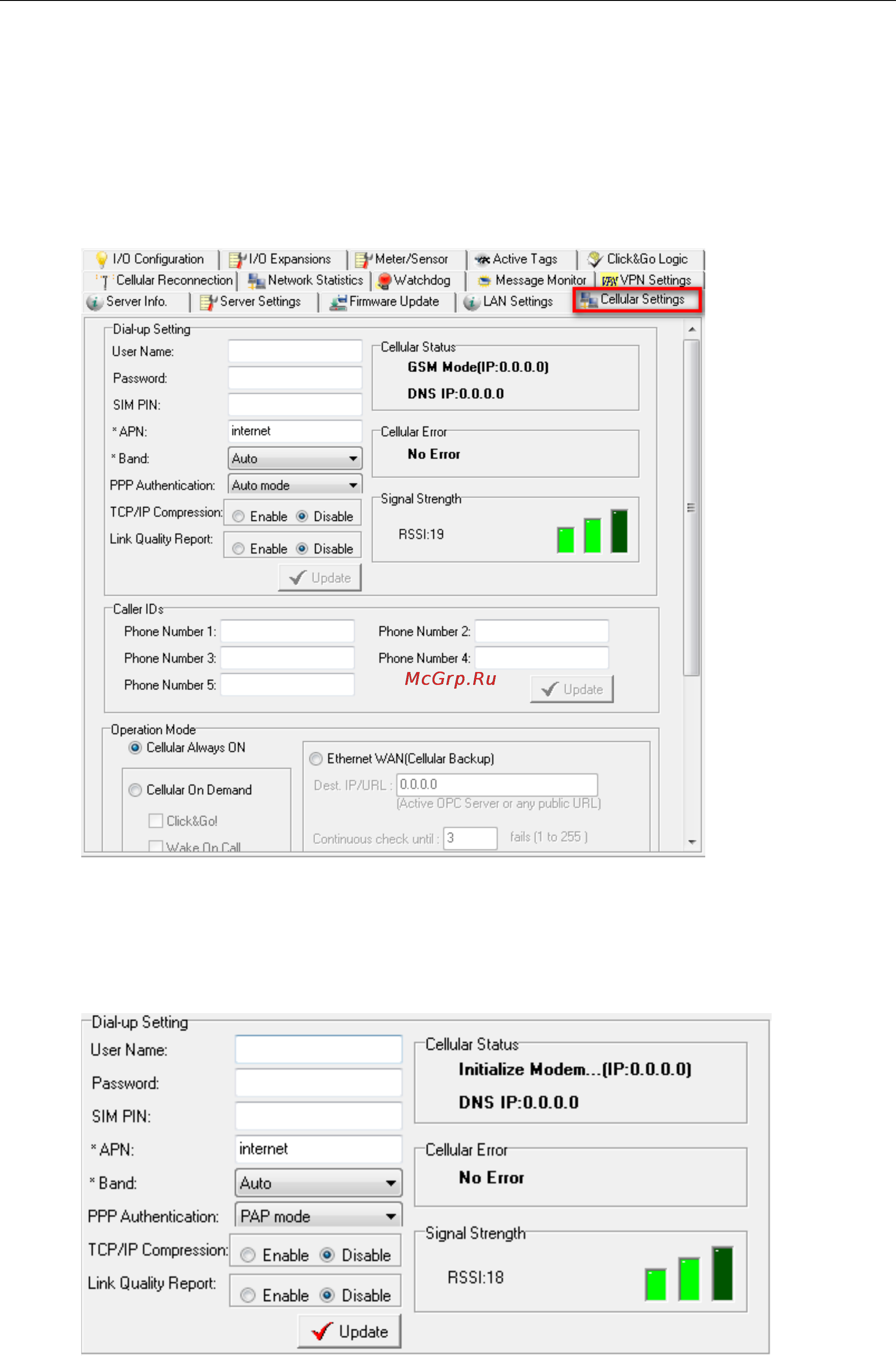

The Cellular Settings Panel
The Cellular Settings Panel includes:
• Dial-up Settings
• Caller IDs
• Operation Modes
• DDNS Settings
• Port Forwarding Settings
Dial-up Setting
The cellular Access Point Name—or APN—is a critical field one must configure when connecting a device to
a cellular network. Check with your cellular service provider for details. Some cellular connections require more
detailed setups, such as PPP Authentication, TCP/IP Compression, and Link Quality Reports, as well.
