Moxa ioLogik W5340-HSPA [34/194] Menu bar sort
![Moxa ioLogik W5340 [34/194] Menu bar sort](/views2/1201254/page34/bg22.png)
ioLogik W5300 The ioAdmin Utility
3-6

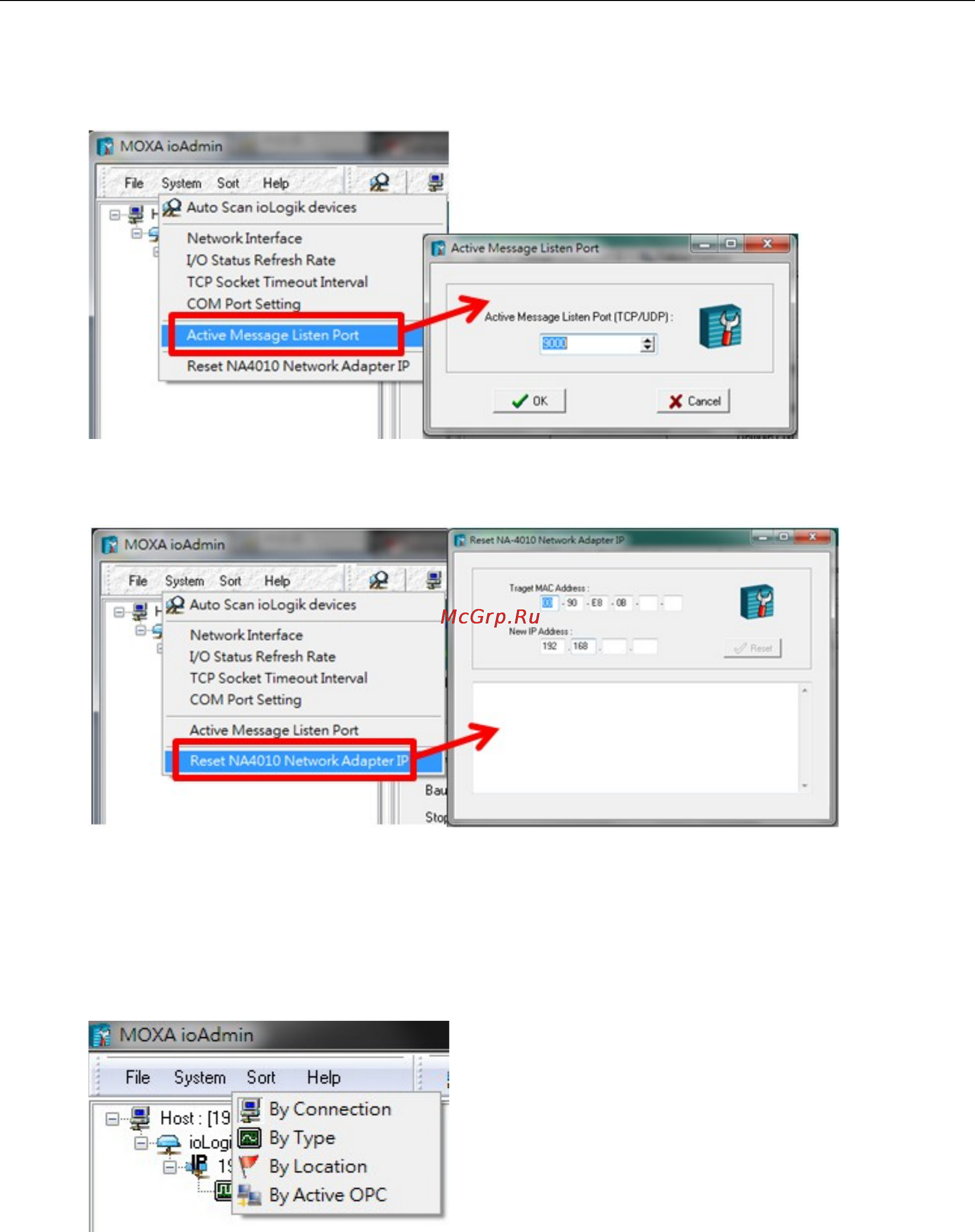

Active Message Listen Port specifies the port number over which the ioLogik will listen for Active Messages.
If the active messages are traveling across a network firewall you must be sure to open the port on your firewall
settings to ensure that messages can get through.
Reset NA4010 Network Adaptor IP is used to re-assign an IP address to the NA-4010 network as reported
by the ioLogik W5300 series adapter.
Menu Bar: Sort
The Sort menu re-orders the list of devices shown in the navigation panel according to their connection/IP
address, model, location (as defined in the location field, aa 58 character descriptor that may be set in the
The Server Settings Panel), or whether or not the device suports an Active OPC client.
