ioLogik W5300 The ioAdmin Utility
3-33
If you already have a PIN configured for your SIM card, be careful to enter it correctly because after three failed
attempts you will be locked out. To avoid this problem, the ioLogik W5300 will try to connect to the cellular
network one time only. If it fails, then the W5300 will stop trying to connect to the cellular network. You can
leave the username, password, and SIM PIN fields blank for most cases because they are seldom used.
After all information has been configured correctly, click Update. The ioLogik W5300 must reboot in order for
the settings to take effect. Connection information is displayed on the right side of the block, such as Signal
Strength (RSSI), Cellular Status, which includes the device’s IP address for the Cellular Network, and Cellular
Error.
NOTE
Band, PPP authentication, TCP/IP Compression and Link Quality Report are
only supported on the ioLogik
W5340
-HSPA.

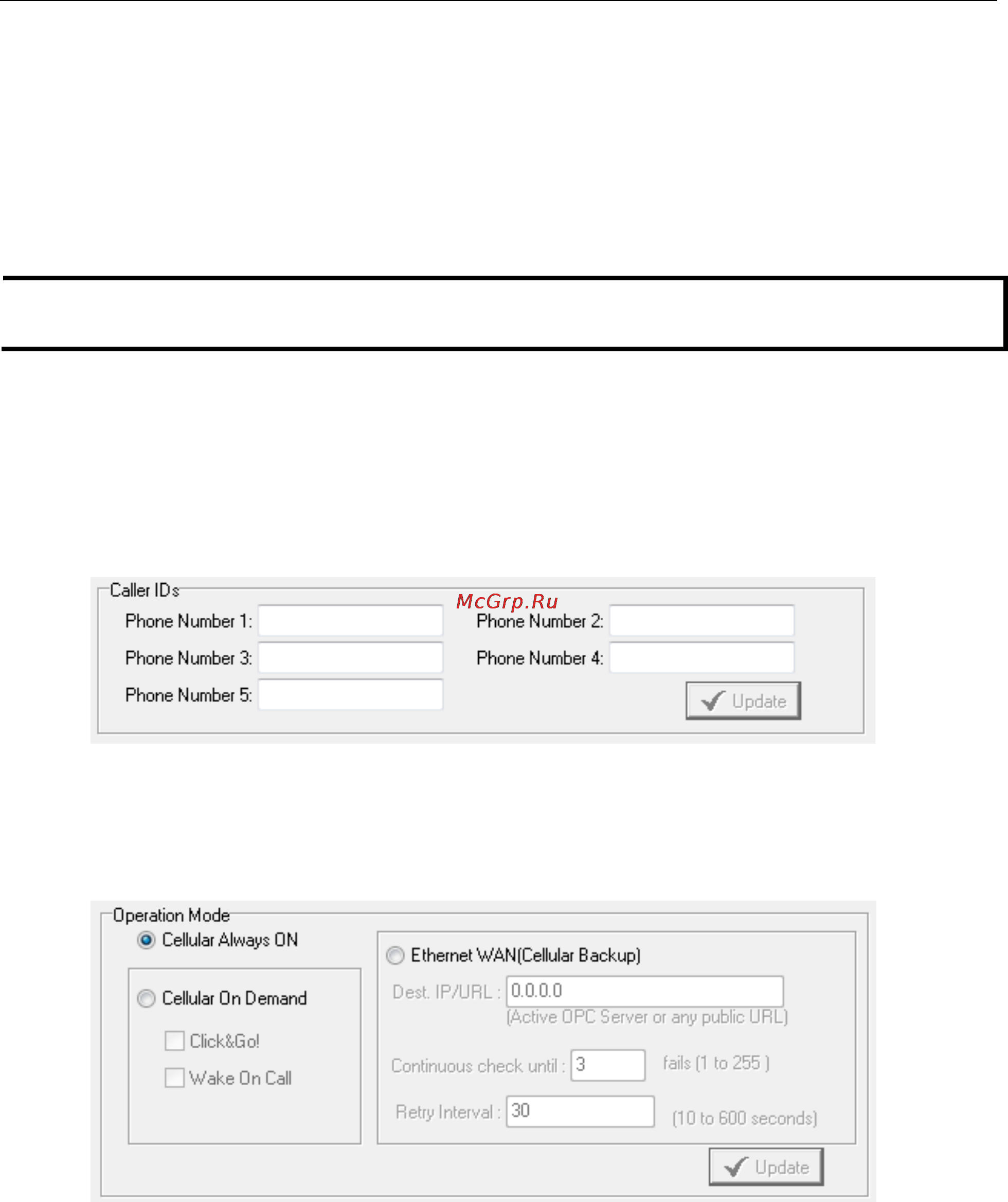

Caller IDs
In order to use the the ioLogik W5300 cellular wake up feature, you must configure a series of caller ID
settings. This is because, when the ioLogik W5300 is in Sleep Mode, it switches to GSM standby; it is only
once the ioLogik receives a phone call from an authorized caller ID that the W5300 hangs up the phone,
switches to cellular mode, and reconnects to the cellular network. After successfully associating with a cellular
access point, the device will forward its new IP address to AOPC server.
Operation Mode
The ioLogik W5300 provides two operation modes to connect to a Cellular network, and a network redundancy
mode (Ethernet WAN: Cellular Backup).
1. Cellular Always ON:
The ioLogik W5300 is connected to the cellular network at all times.
2. Cellular On Demand:
This mode allows the ioLogik W5300 to conserve a very low power consumption by flipping into sleep mode
whenever there is no need to transmit information. When in sleep mode, the ioLogik W5300 disables the
cellular connection and stays in GSM standby mode, saving all I/O records in the data log, on the SD card.
The ioLogik W5300 will only wake up when either:
1) it receives an activate message from Click&Go, or
2) it receives a call from an authorized caller ID.
