ioLogik W5300 Click&Go Logic
4-11

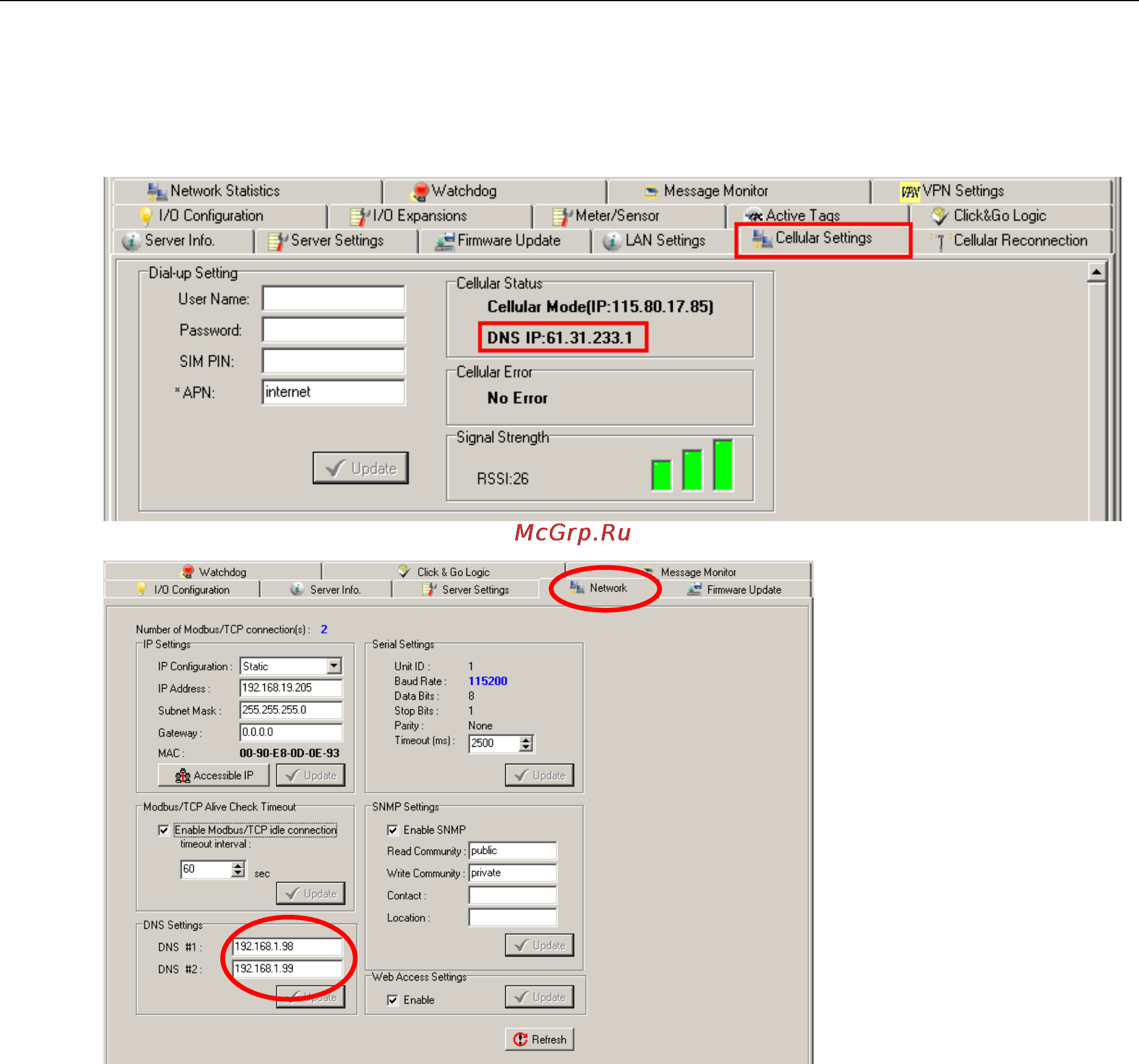

Under Mail Server Settings, you must configure the address of the SMTP server with your username and
password. When using an FQDN (Fully Qualified Domain Name) address, such as ms.moxa.com, you must
specify the ioLogik’s DNS settings or check the Cellular Settings to see if the DNS settings were retrieved by the
cellular connection.
