ioLogik W5300 The ioAdmin Utility
3-43

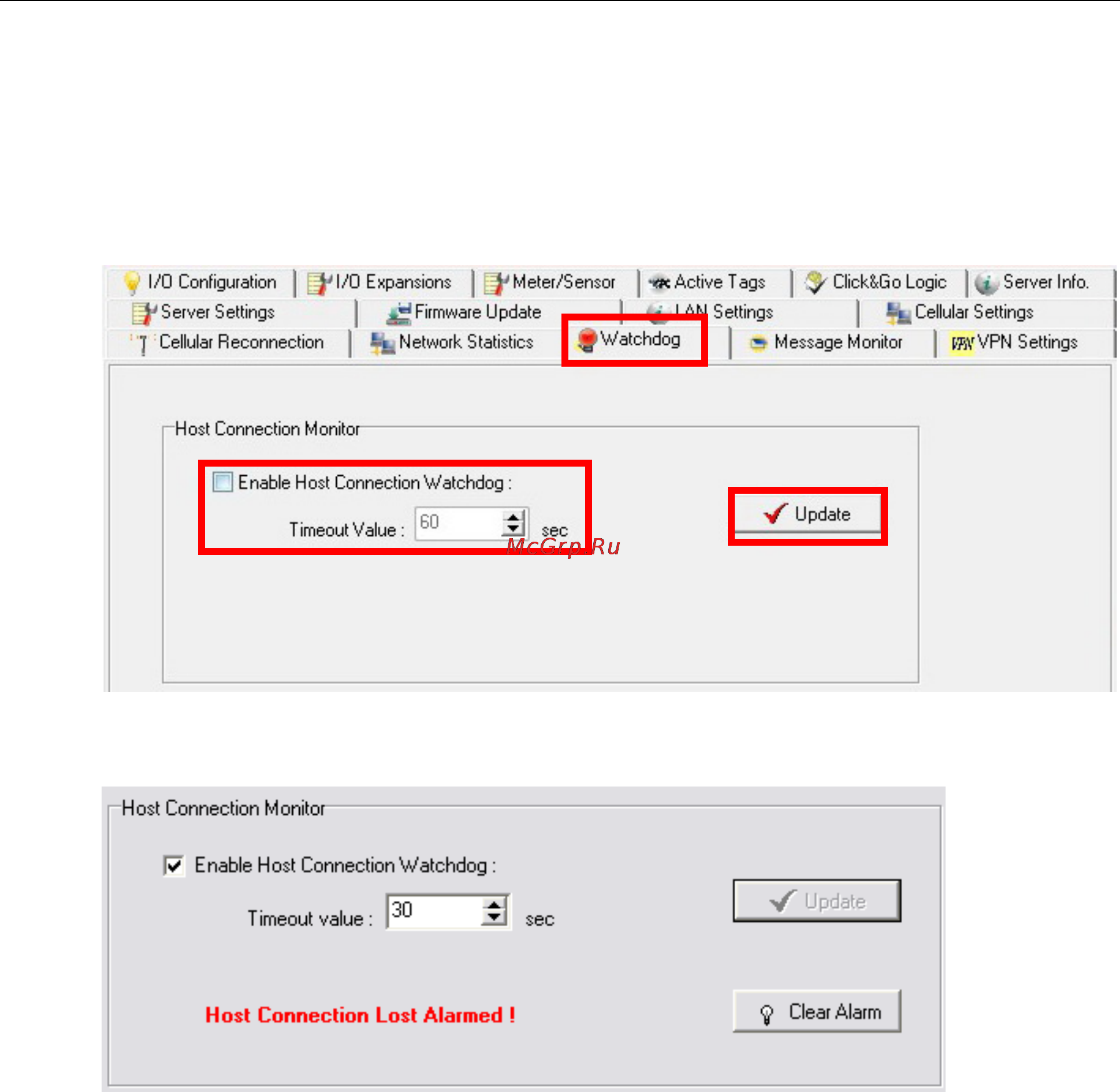

Watchdog Panel
The Watchdog panel is available after you log in as administrator. When enabled, the Host Connection
Watchdog monitors the network connection. If the connection is lost for the specified Timeout Value, the
watchdog will display a warning and activate the Safe Status settings for each DO channel and event counter
channel. By default, the watchdog is disabled. To enable the watchdog, make sure that Enable Host
Connection Watchdog is checked, set the Timeout Value, and then click Update.
After the watchdog is enabled, a warning will be displayed on the Watchdog Panel if the network connection
is lost.
After you restore the network connection, click Clear Alarm to reset the Watchdog and return to normal
operation.
