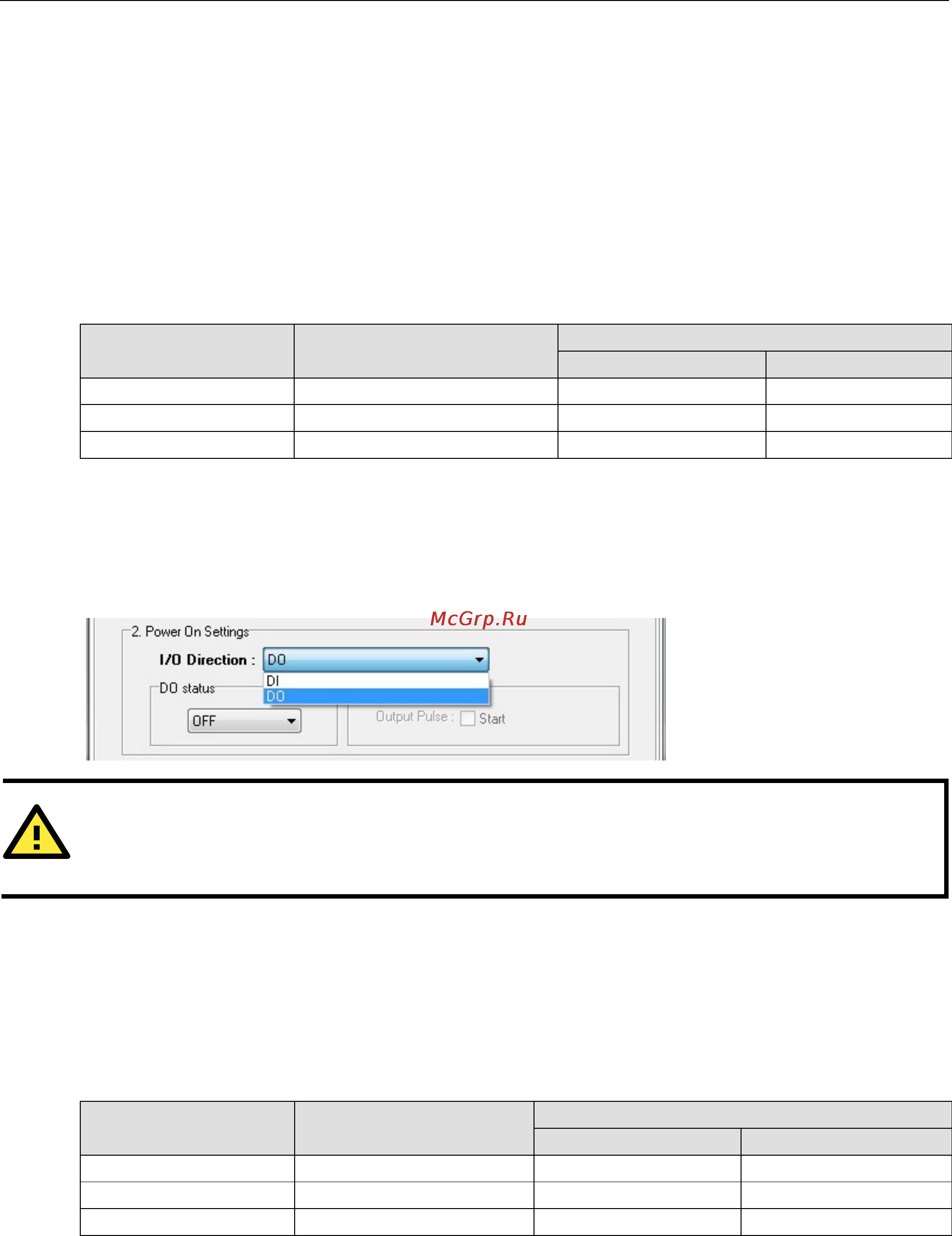

ioLogik W5300 Click&Go Logic
4-5
I/O Configuration
ioLogik products are embedded with various types of I/O channels, and the mode of each input/output channel
must be configured before using the channels. Channels are divided into five categories: digital inputs, digital
outputs, analog inputs, analog outputs, and virtual channels.
Configurable DIO Channel Mode Selection
For models that support the configurable DIO channels, configure the specific DIO to DI or DO to meet the
requirements.
Model
Number of Configurable
DIO Channels
Mode Settings
Digital Input Digital Output
ioLogik W5340-HSPA 8
ioLogik W5340 8
ioLogik W5312 4
When logged in as an administrator, double click on a channel in the I/O Configuration panel to configure
that channel’s settings. A window will open with configuration options for the channel. Each DIO channel will be
configured to act as either a DI or DO channel, according to the Power On Settings. To switch between DI and
DO channel operation, select the desired mode in the I/O Direction field under Power On Settings. After
clicking Apply, you will need to restart the ioLogik for the new setting to take effect.
ATTENTION
Switch
ing between DI and DO channel requires
restarting the ioLogik for the new setting to take effect. You
must restart the ioLogik b
efore proceeding with configuration or programming.
Digital Input Mode Selection
A DI channel can be set to DI or Event Counter mode. In DI mode, the channel connects to wet/dry contacts.
In Event Counter mode, the channel accepts limit or proximity switches and counts events according to the
ON/OFF status. When Lo to Hi is selected, the counter value increases when the attached switch is pushed.
When Hi to Lo is selected, the counter value increases when the switch is pushed and released.
Model
Number of Digital Input
Channels
Mode Settings
DI Event Counter
ioLogik W5340-HSPA 8
ioLogik W5340 8
ioLogik W5312 8 DIs+4 DIOs
When logged in as administrator, double click on a channel in the I/O Configuration panel to configure that
channel’s settings. A window will open with configuration options for that channel. Each DI channel will be
configured to act as either a DI or Event Counter channel, according to the Mode Settings. To switch between
DI and Event Counter channel operation, select the desired mode under Mode Settings.
