ioLogik W5300 The ioAdmin Utility
3-19

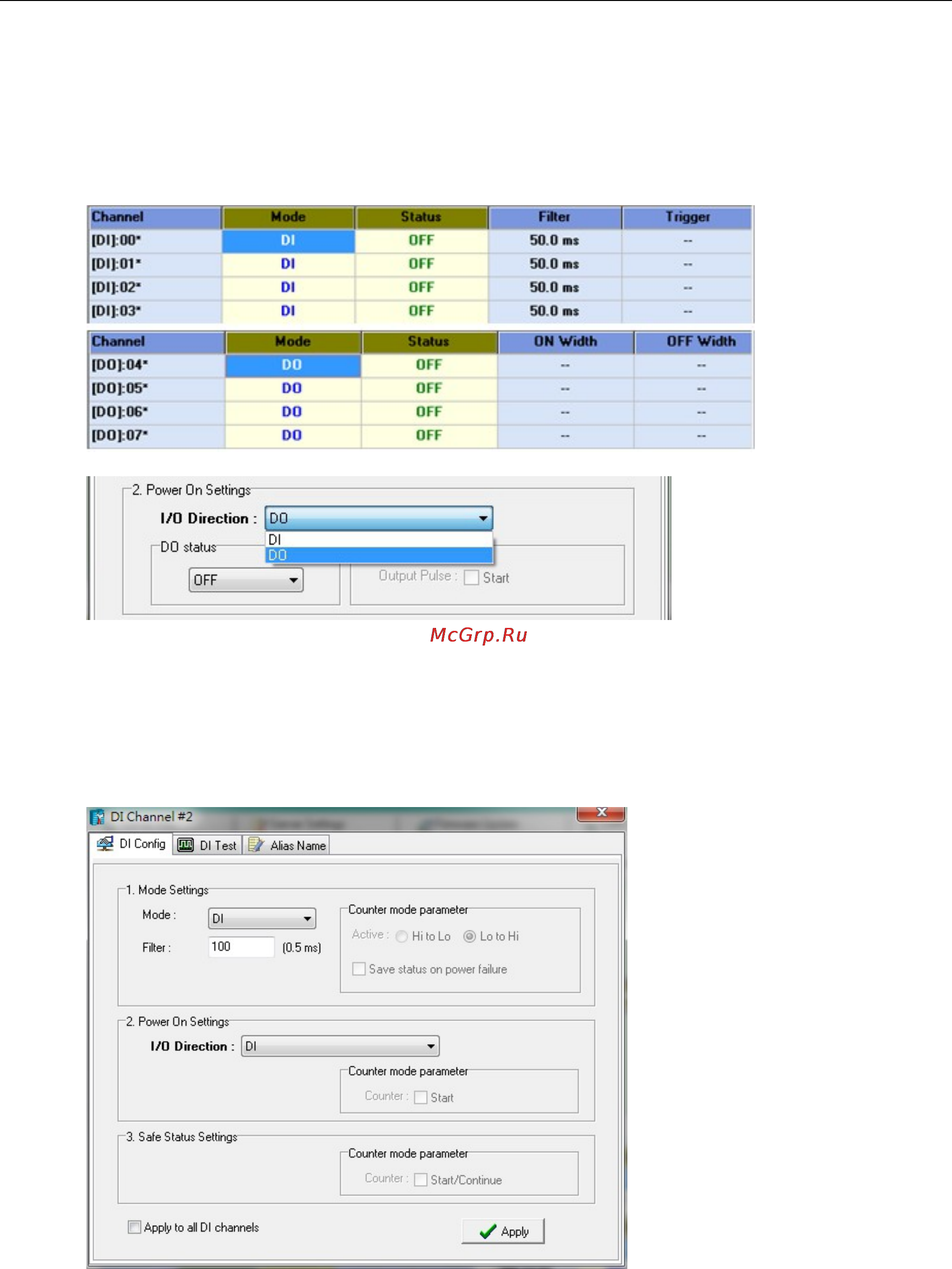

Configuring Digital I/O Channels
Digital I/O channels may be configured for either input or output. When the ioLogik W5300 is turned on, each
digital I/O channel will be configured to act as either DI or DO, according to the Power On Settings. To switch
a channel between input and output, select the desired mode in the I/O Direction field under Power On
Settings. After clicking Apply, you will need to restart the ioLogik W5300 for the new setting to take effect.
Configuring Digital Input Channels
The ioLogik W5300 can provide up to 12 digital input (DI) channels. To configure software filtering for a channel,
set the Mode dropdown in section 1 Mode Settings to Filter. Software filtering is used to avoid switch
bounces. The filter is configurable in multiples of 0.5 ms and accepts values between 1 and 65535. For example,
a setting of 100 would mean a 50 ms filter (100 × 0.5 ms).
