ioLogik W5300 Getting Started
2-13

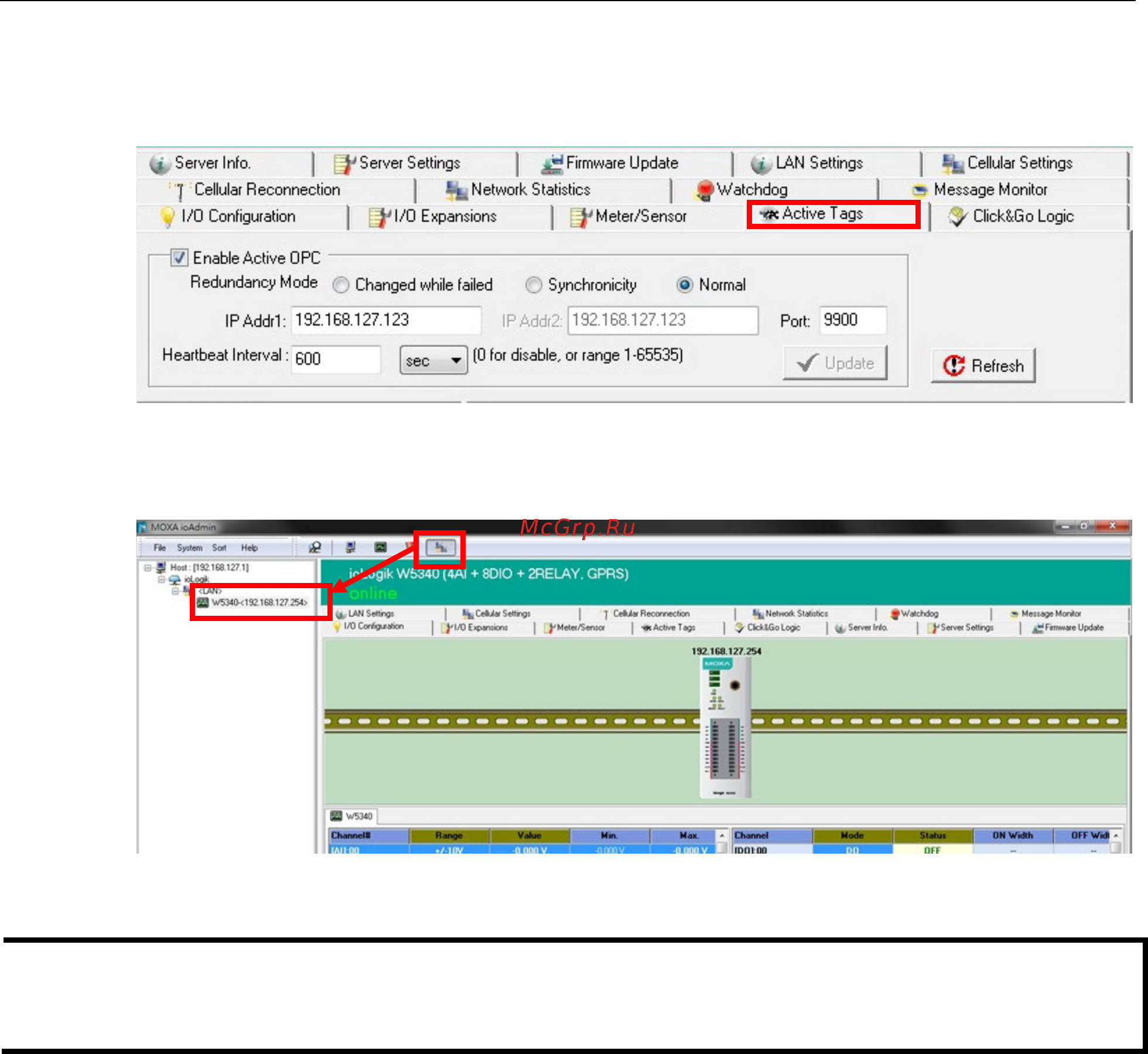

2. Start the ioAdmin utility and set up the Active OPC Server IP address on the Active Tags panel. ioAdmin
will prompt you to reboot the ioLogik W5300 after clicking the Update button. Click yes to restart the
ioLogik.
3. Start Active OPC Server; a new ioLogik W5300 will be created.
4. In ioAdmin’s search menu, manually add the IP address for Active OPC Server. The ioLogik W5300 will
appear under Active OPC Server. The ioAdmin search menu is set by default to sort by Active OPC.
5. You can now test and monitor I/O status in ioAdmin.
NOTE
In this scenario,
Active OPC Server is acting as middleware between the
central configuration/control software
and the ioLogik W5300 remote I/O unit served over a cellular interface. To minimize bandwidth usage, click the
Refresh
button manually to retrieve the settings.
