ioLogik W5300 The ioAdmin Utility
3-10

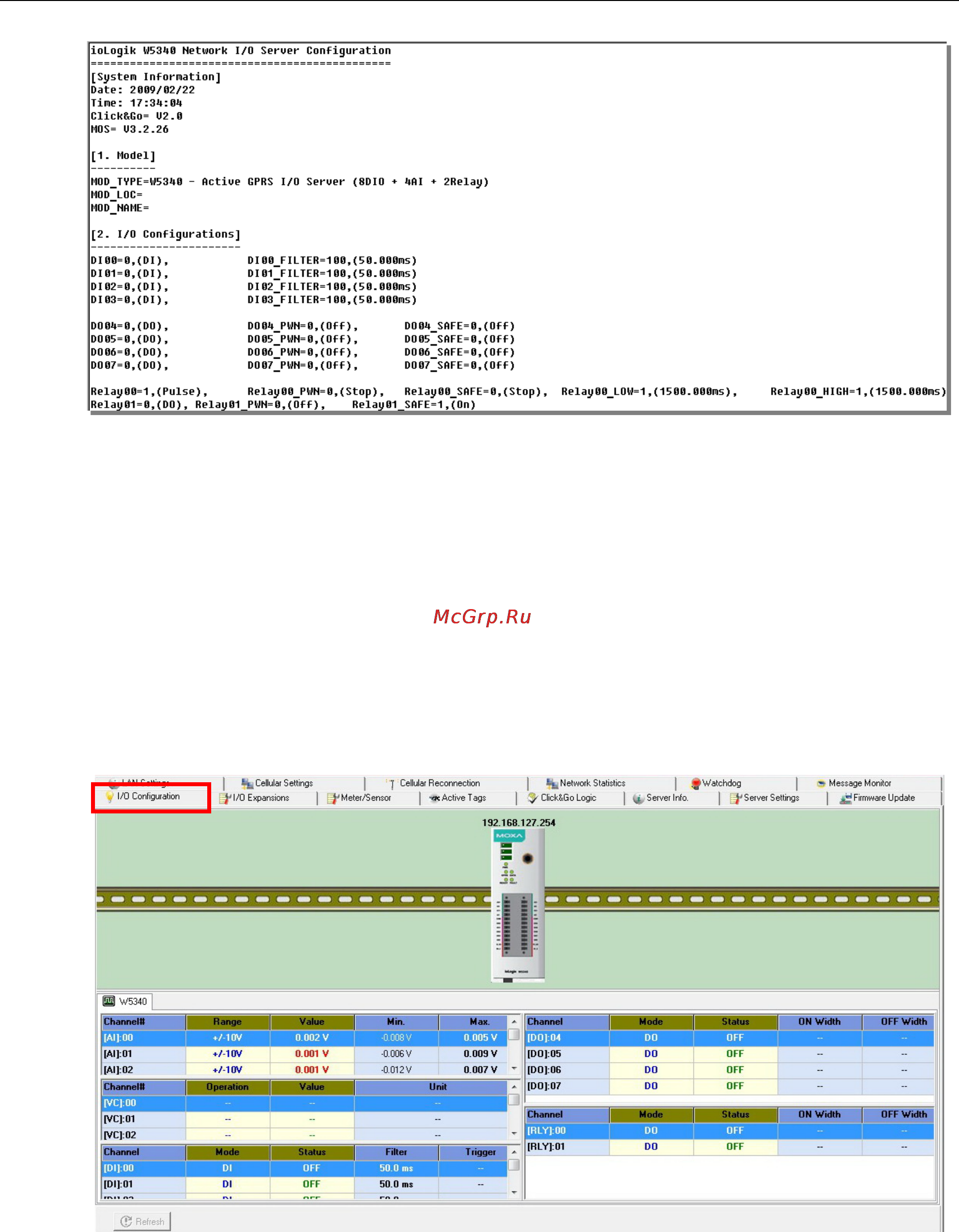

Main Window
The main window allows users to view I/O status, ioLogik system information, and check messages from the
message monitor without requiring logging in to the ioLogik. However, you will need to log in to perform
configuration and operation tasks.
I/O Configuration Panel (General)
The I/O Configuration panel shows the status of every I/O channel. This is the default panel when you first
open ioAdmin. Input channels are listed on the left and output channels are listed on the right. For more
information about configuring I/O, see the section The I/O Configuration Panel, below.
