ioLogik W5300 Planning and Assistance
5-27
NOTE
Output control via SMS is forbidden if the output channel is currently in use
by
the Click&Go logic. Integrate the
Internal
Register function for output control.
NOTE
When
using the SMS related function, be sure to get an appropriate data plan from your cellular provider
. For
example, a SIM card
that only supports data service has the lowest priority to send or receive an
SMS. In such
case
s, users must activate the voice service on this SIM to ensure faster response for the SMS.
We
strongly recommend checking with your service provider for details.
NOTE
The function is dependent on the firmware version. Be sure to use
firmware V1.3 or above for the ioLogik
W5312 series and firmware V1.5 or above for the ioLogik W5340 series.

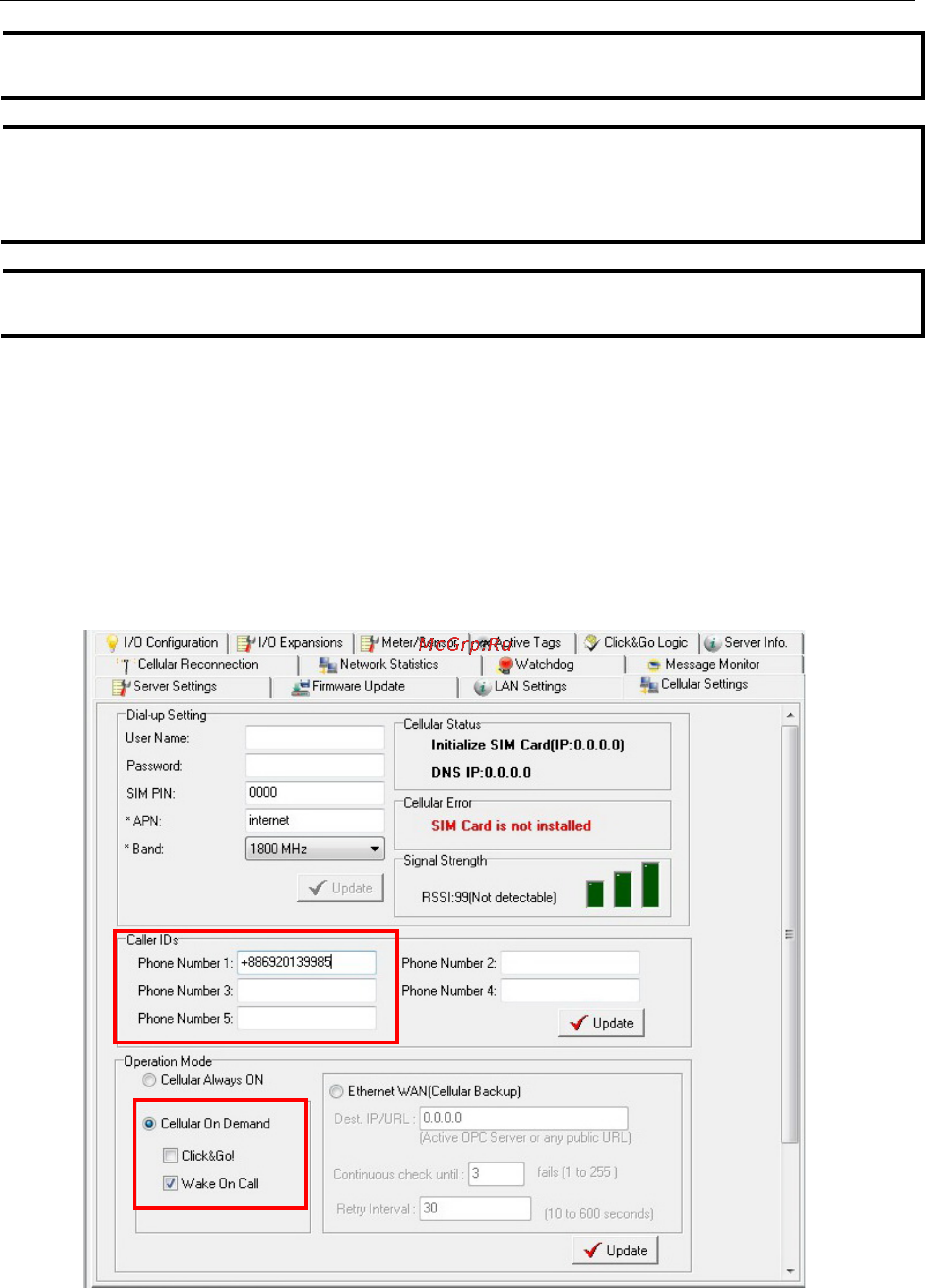

Enabling the Power Saving Function and Secure
Wake on Call
Scenario: In this example we describe how to use the ioLogik W5300’s power management function.
Setup Procedure
Step 1: Start ioAdmin as administrator.
Step 2: Select the Cellular Settings tab and set the operation mode to On Demand. The Cellular will remain
in GSM standby mode. The I/O function, Click&Go, and Data Logging functions will continue to work properly.
Step 3: Checkmark the “Wake on Call” checkbox.
Step 4: Input the appropriate phone numbers in the Caller ID column. You may input a maximum of 5 phone
numbers.
Step 5: After restarting the system, you can use your cell phone to connect the device to the Cellular network.
