ioLogik W5300 Planning and Assistance
5-8

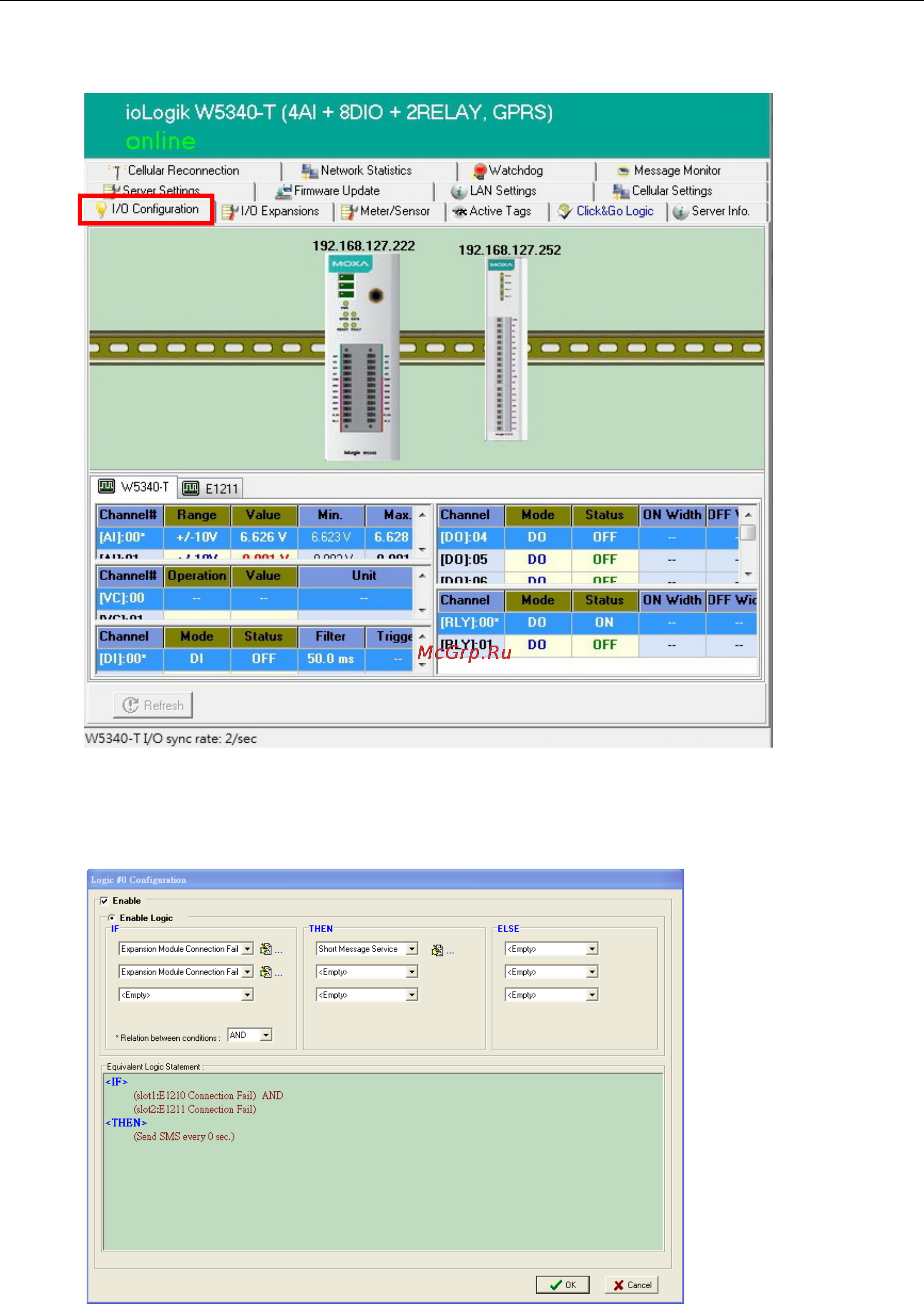

Step 9: After rebooting, log in to ioAdmin as Administrator and choose “I/O Configuration.” You will see the
following screen, which indicates that the additional I/O channels were successfully installed.
Step 10: Click&Go will continue running when the connection between the ioLogik W5300 and expansion
modules is down,. You can use the trigger condition “Expansion module connection fail” to let Click&Go warn
you when the connection is down. To do this, choose the Click&Go Tab, adding the rules as shown in the
following figure.
Step 11: Save the logic settings and restart the system. After restarting, click the “Run” button on the
Click&Go panel to make sure the Click&Go rule is running.
Step 12: When a disconnection occurs, an SMS alarm message will be sent to the predefined mobile phone.
