ioLogik W5300 The ioAdmin Utility
3-21
The counter value resets to zero whenever power is disconnected. To make sure the counter value is saved
whenever power is disconnected, select Save Status on Power Failure. Once power is reconnected the value
will remain the same as when power was cut.
To enable the counter to resume counting immediately upon powering up, go to the Power On Settings
section of the DI Config tab. The counter starts logging signals only after configured to do so by a Modbus or
a Click&Go command. You can also specify counting to begin automatically whenever the ioLogik is powered on.
To configure automatic counting, select Start under Counter mode parameter in the Power On Settings,
which is located under the DI Config tab within the DI Channel Window.

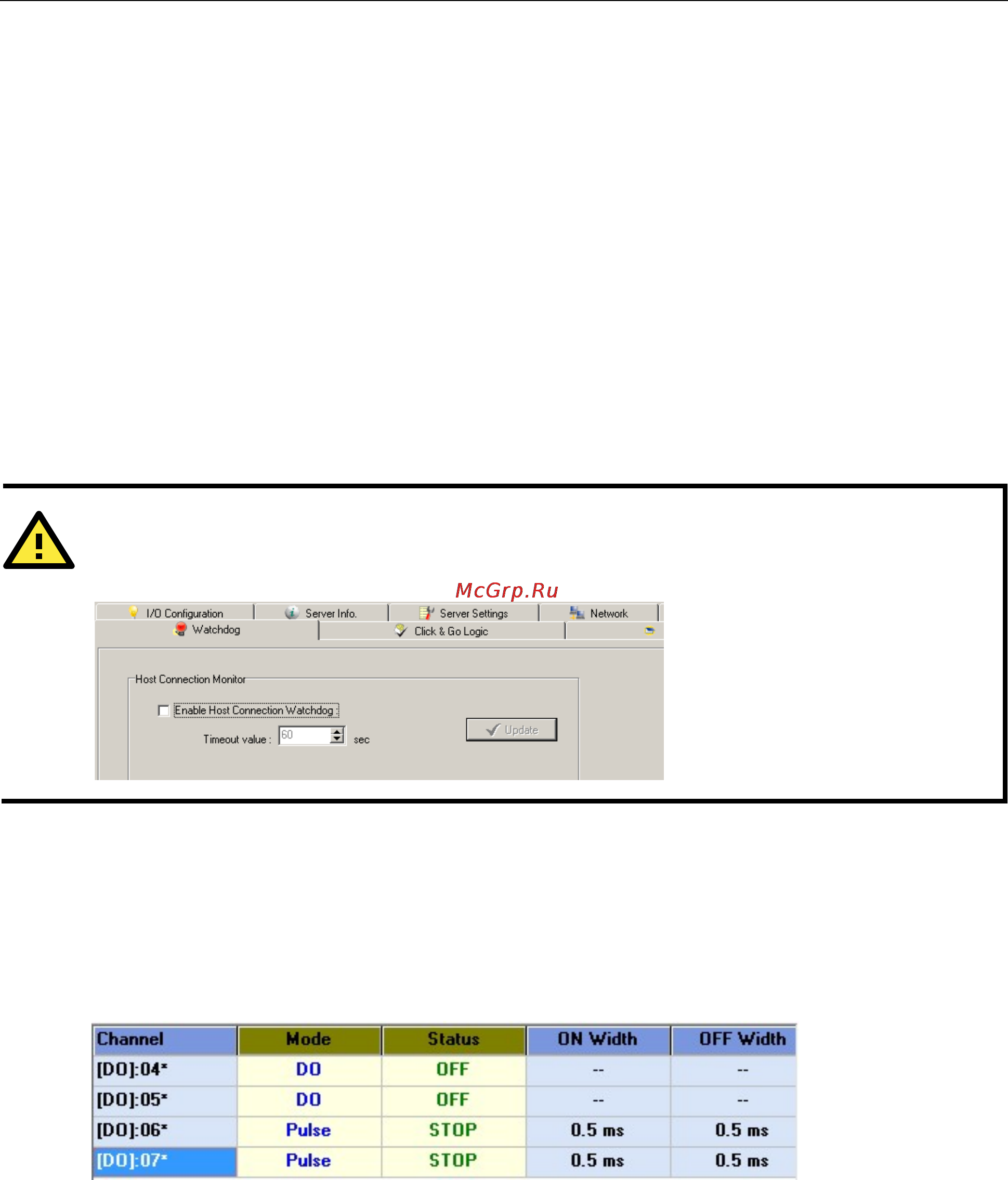

You can configure how a counter behaves during a network disconnect by navigating to the Watchdog panel
(click on the Watchdog tab in the main window) and configuring the Safe Status Settings and Host
Connection Watchdog. When the watchdog is enabled, any disconnection from the network will activate a
safe state; the counter may be configured to continue counting throughout the safe state by selecting
Start/Continue (found under the Counter Mode Parameters). If Start/Continue is not enabled, the
counter will suspend counting. If the Host Connection Watchdog is not enabled, then 阿 Safe Status
Settings will be ignored and the counter will continue counting during a network disconnection.
ATTENTION
The
Host Connection Watchdog is disabled by default and must be enabled for Safe Status Settings
to
take effect.
The Apply to All Channels option applies all settings to all DI channels on the selected device.
Configuring Digital Output / Relay Output Channels
The ioLogik W5340 and W5340 HSPA can be configured to provide up to 8 digital output channels and 2 relay
output channels, while the ioLogik W5312 provides up to 12 digital output channels. All of these channels may
be treated as output channels. A DO channel can be set to either DO or Pulse Output mode.
