Handling Front-End Events and Alarms

Scenario: This application uses many unmanned sites, and the customer would like to receive an alarm if the

monitored status changes. We assume that the water level of the water tank is measured with DI-1. The DI-1

starts as OFF, which indicates a normal water level. If the water’s level reaches the high limit, the DI-1 status

will change to ON. In addition, the SMS alarm will be initiated and sent directly to your mobile phone.

Setup Procedure

Step 1: We will assume that DI-1 is already connected with the water level (On/Off) sensor.

Step 2: Start ioAdmin as administrator.

Step 3: Click the Click&Go Logic tab and double click the blank rule.

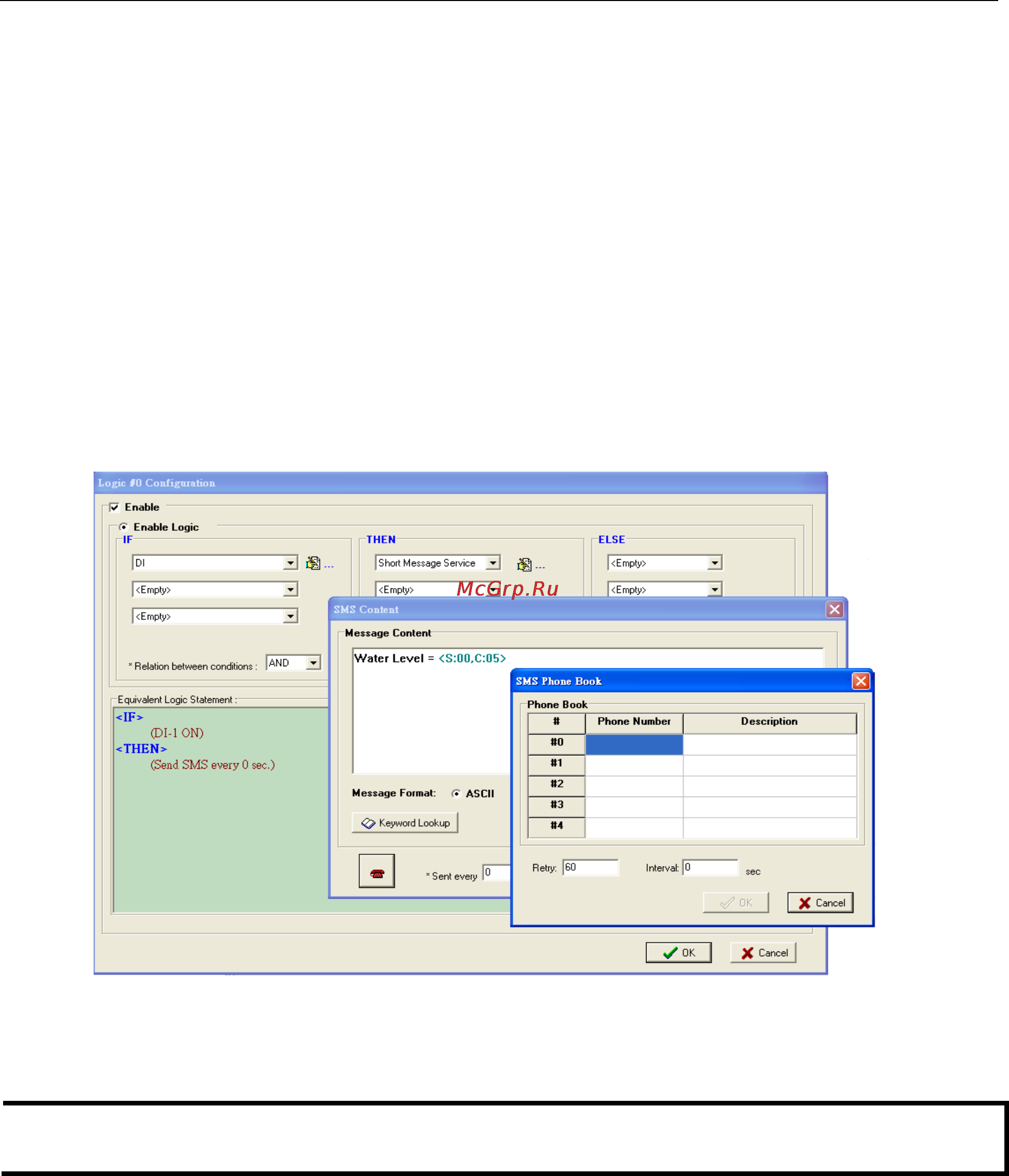

Step 4: Input the Click&Go logic shown below (refer to Chapter 4 for details).

If DI=On Then Send SMS

Step 5: Don’t forget to set up the phone number shown at the bottom of the message window.

Step 6: Close the popup window, click Upload to ioLogik, and then reboot the device.

Step 7: After rebooting, click Run. The logic will go live. Once the water level is detected by a sensor, your

mobile phone will receive the SMS.

NOTE

1. The above procedure can be handled over the LAN or from a remote location.

2. The E

-Mail, SNMP Trap, and TCP/UDP alarm can be configured in the same way.
