ioLogik W5300 Click&Go Logic

4-26

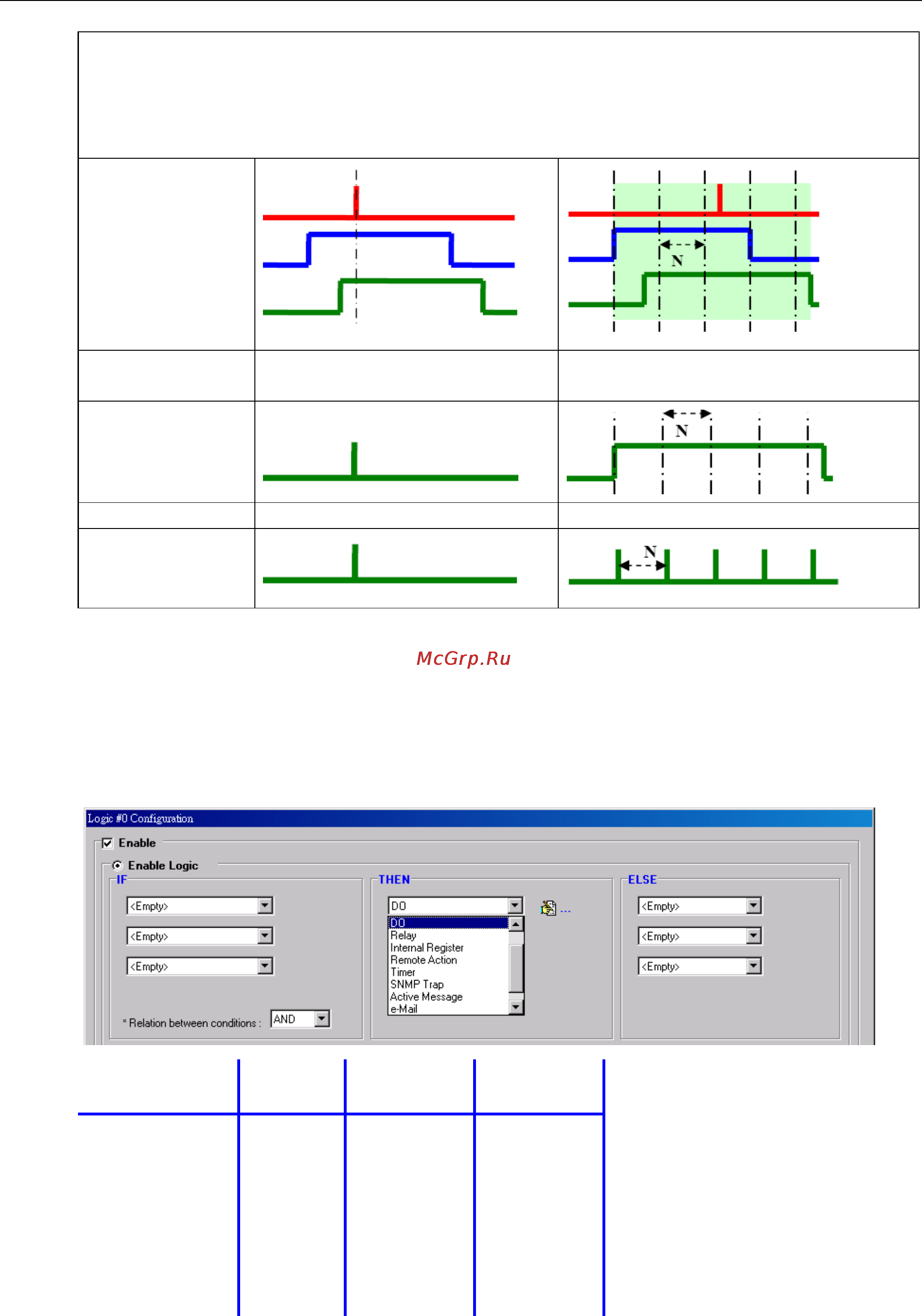

Edge Detection for One Condition

In this scenario, the rule checks DI-0 for a change in status and DI-1 and DI-2 for status only. The repeat

interval will not have an effect if the AND relationship is used, because the edge condition for DI-

0 can never

be sustained over a length of time. With the OR relationship, the IF conditions will be satisfied as long as DI-

or DI-2 is “on”, and the THEN actions will be triggered over interval N.

DI-0 = OFF to ON

DI-1 = ON

DI-2 = ON

Relation between

conditions

AND OR

“IF” conditions

satisfied

Repeat interval N/A “Timer = N sec”

“THEN” action

triggered

THEN/ELSE Actions

Under the THEN column, you can specify up to 3 actions that will be performed when the IF conditions are

satisfied. 3 actions under the ELSE column will also be performed when the IF is NOT satisfied. Possible

actions include changing the status of a DO channel, starting or stopping an Event Counter, or sending a

message by SNMP trap, TCP, UDP, or e-mail.

If Conditions

Result of

AND Logic

Trigger of

Then Actions

Trigger of

ELSE Actions

A1 A2 A3

0 0 0 0 NO YES

0 0 1 0 NO YES

0 1 0 0 NO YES

0 1 1 0 NO YES

1 0 0 0 NO YES

1 0 1 0 NO YES

1 1 0 0 NO YES

1 1 1 1 YES YES
