ioLogik W5300 The ioAdmin Utility
3-41
The Chart below shows the Carrier Check behavior:
PING Check before system restart: A remote destination is used in this setting to indicate if the Internet
connection is still alive. The user can specify a public IP or URL and the number of retries that are allowed.
• Dest IP/URL: Can either be an AOPC server IP or any public URL for the device to check its connection with
the internet.
• Auto Retry: Will be activated when the AOPC can’t connect with the AOPC server. The W5300 will tell the
machine to ping the Dest IP/URL to check for an Internet connection.
• Continuous Check Until 3 failures: The W5300 continuously check its connection with the IP/URL to
ensure that it is constantly connected to the internet (could incur a high cose, depending on your cellular
plan).
• Network Log: The Network Log records the activity of the cellular connections. Click the Export Log
button to retrieve the log file.
System Reconnect after ____ hours
• If Carrier Check before system restart or PING Check before system restart is selected, the system
will check if there is still a wireless connection.
• If the wireless signal is unstable and disconnects, the ioLogik W5300 will first reboot the modem to restore
the physical layer connection. Enable System Reconnect to reinitiate the W5300. If rebooting the modem
does not recover your connection, the disconnection may be caused by a higher layer communication
problem. You may select a System Reconnect interval from 1 to 24 hours.

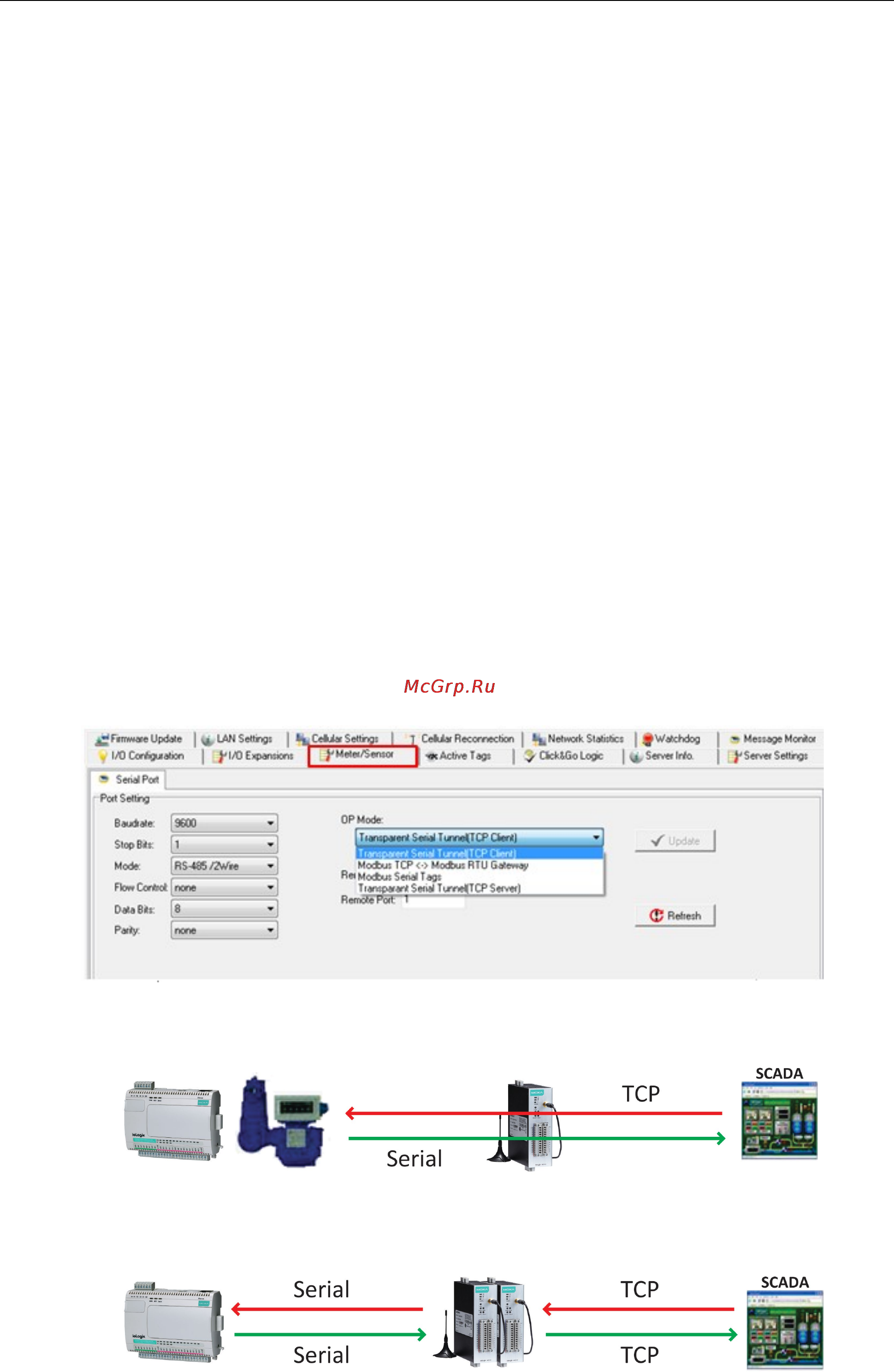

Meter/Sensor
OP Mode
The ioLogik W5300 supports four OP modes, Transparent Serial Tunnel (TCP Server and TCP Client),
Modbus TCP <-> Modbus RTU Gateway, and Modbus Serial Tags.
• Transparent Serial Tunnel: Transparent Serial Tunnel mode creates a TCP socket to a remote host
program and transparently sends and receives data to attached legacy serial devices.
• Modbus RTU Gateway: This function allows users to attach a serial Modbus/RTU meter to the ioLogik
W5300’s serial port; in this case, the ioLogik W5300 will act as a Modbus/RTU to Modbus/TCP gateway.
