ioLogik W5300 The ioAdmin Utility
3-34

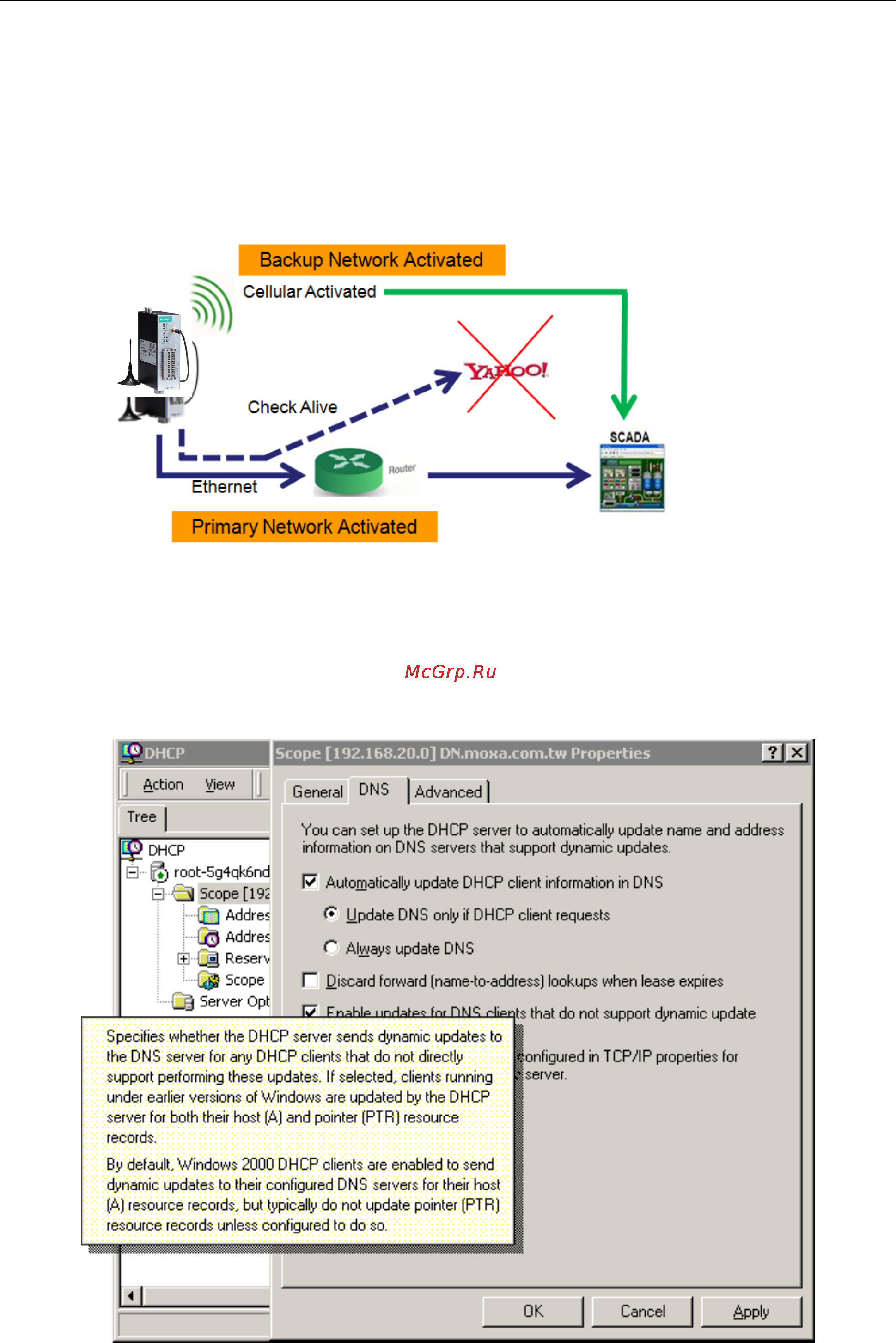

3. Ethernet WAN (Cellular Backup):
The ioLogik W5300 may also be configured with redundant network interfaces, so that it uses cellular
networks only as a backup connection. When this mode is selected, the primary interface will be the
Ethernet connection, over the Internet. Should this primary interface fail, the ioLogik W5300 will
automatically switch to the cellular interface, and then switch back to the primary Ethernet interface when
it again becomes available. Note to configure the cellular backup mode, you must specify an IP/URL that the
ioLogik will use to test Internet connectivity. We recommend using either large, established sites like
Google or Yahoo! to configure this test IP/URL, or using the IP/URL of your own central servers.
DDNS Settings
If you are unable to configure your AOPC server with a static IP address, you can still configure your network
with push commnications for edge I/O. To do this, you will configure the ioLogik W5300 with a URL that it can
use to register with a dynamic DNS service. This will first require you to register with a DDNS service provider,
and enter its information into the DDNS function in the ioLogik W5300.
