ioLogik W5300 Click&Go Logic

4-34

NOTE

Send every

means to send the SMS to all the recipients; SMS Escalation will send SMS to the recipients

sequentially and wait for the response (acknowledgement).

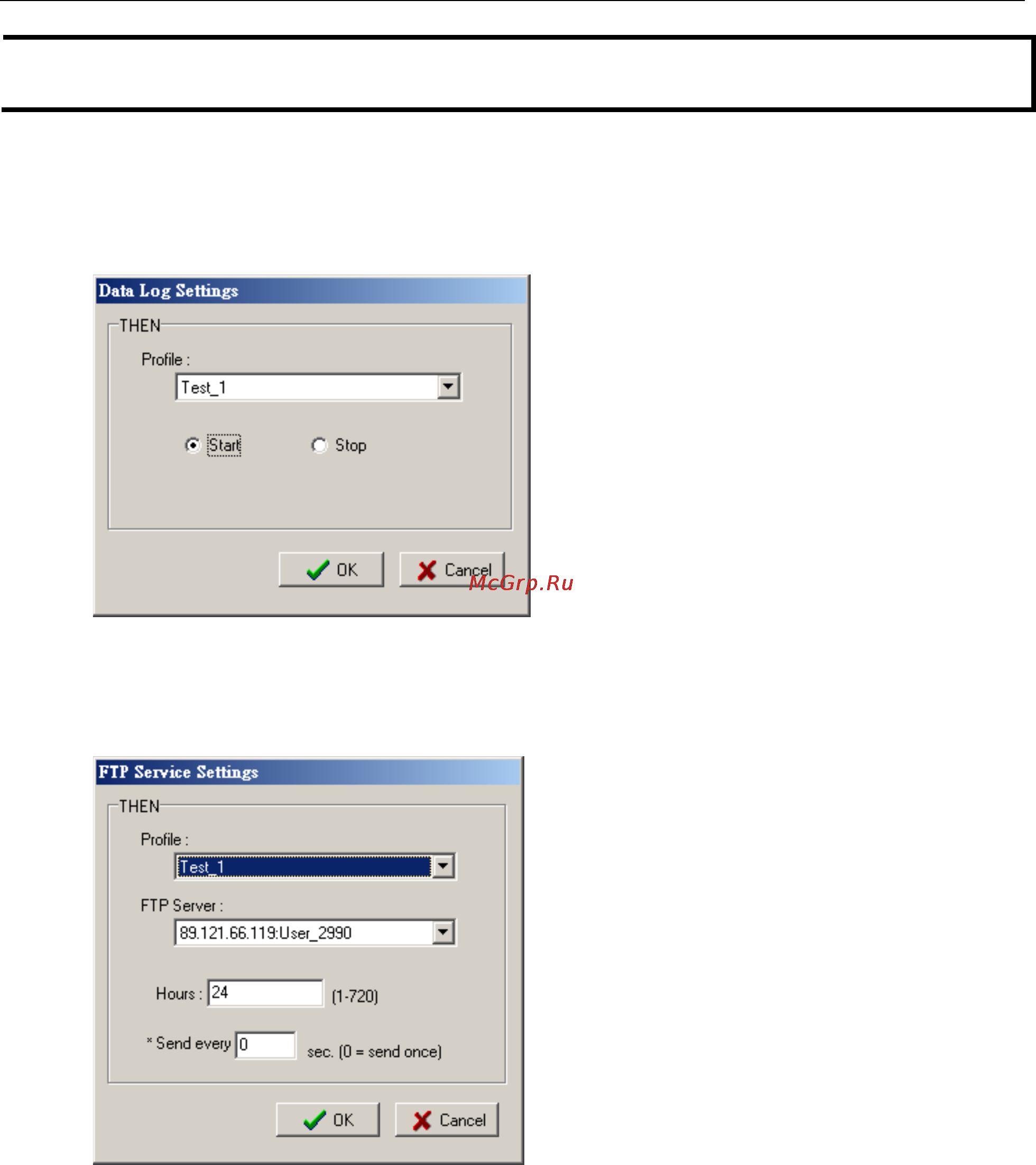

Data Log Start/Stop

The Data Log Start/Stop function provides the capability to start or stop logging based on a specific event (IF

Conditions), such as to start logging when the pressure (AI) reaches the maximum limit and to stop logging

when it returns to normal.

FTP Service

The FTP Service function provides upload service for data log files stored on the SD card. Combining this

function with Schedule or Timer in the IF condition will create periodical or scheduled uploads of the log file.

Profile: Select a pre-configured FTP server.

Hours: The ioLogik W5300 will send all the log files containing all the entries within this specified time period.

Send Every: The datalogging file will be sent every this number of seconds.

The following diagram gives an example. Log_01 to Log_05 were created by the same profile. If configuring the

Hours to 24, the ioLogik will upload the entire Log_01, Log_02, and Current Log_03. In the Next 24 hrs, the

ioLogik will upload the entire Log_03, Log_04, and Current Log_05. On the FTP Server, the Current Log_03 will

be overwritten by the entire Log_03 when an additional 24 hrs has passed.
