ioLogik W5300 Click&Go Logic

4-22

Internal Register (Integer)

Internal Register (Integer) represents a status flag to link the status of the first logic to the second one. It

is used most often with the Timer function, or to combine other input statuses together. The Internal Register

function also allows a PC to control the ioLogik’s local output when the remote output is controlled by a

Click&Go log (e.g., digital output, active message, e-mail, or SNMP Trap). Select the IF condition for the

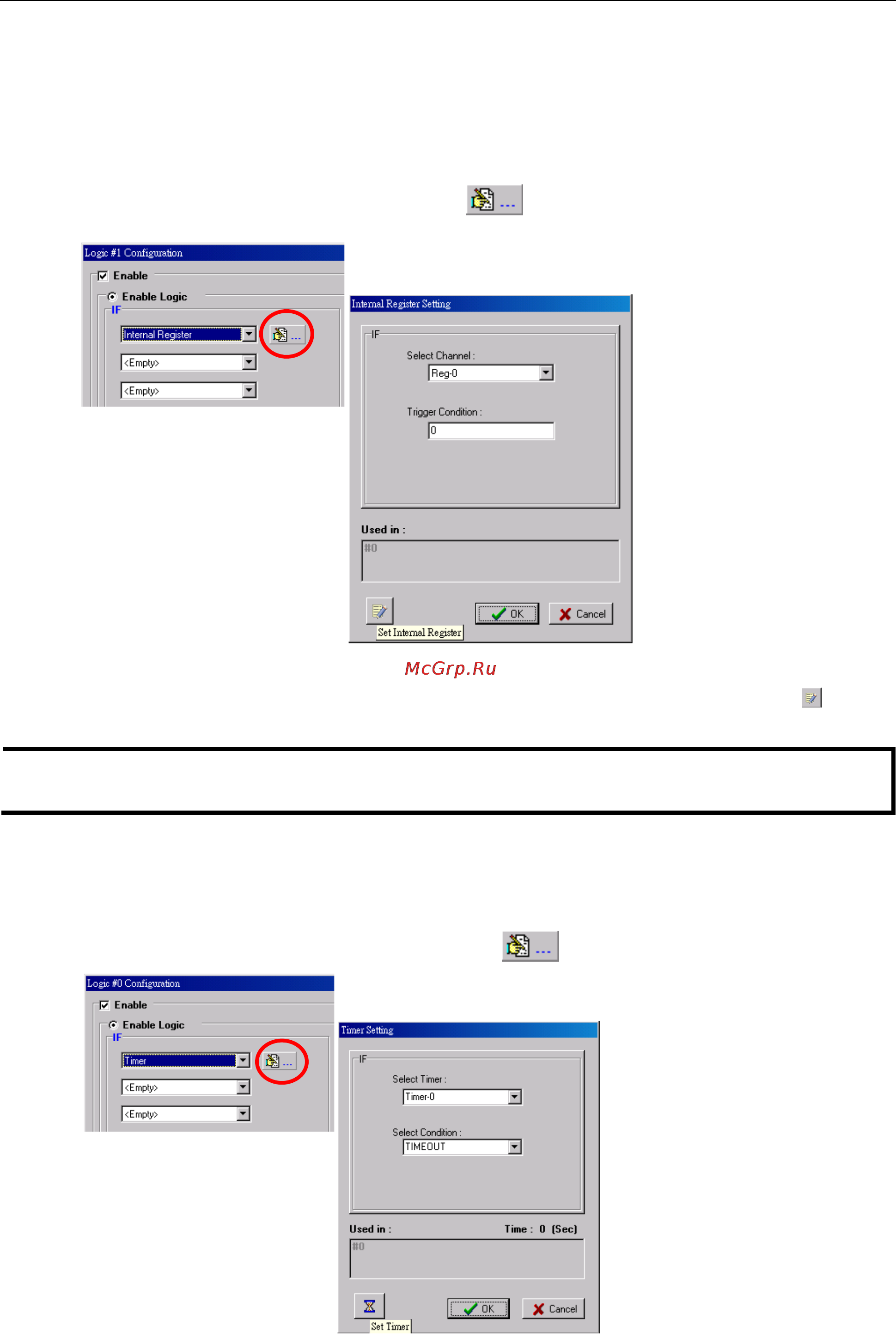

Internal Register and click on the property button ( ) to enter the Set Internal Register window.

In the above figure, the “Used in:” column indicates that this Internal Register is also used with Rule-0, which

helps the user identify the relationship between the rules. Also, the Set Internal Register button ( ) will help

to define the default values of all Internal Registers.

NOTE

Internal Registers can be controlled by Modbus/TCP protocol. Refer to the

appendix

for the address list for all

Internal Registers.

Timer

The Timer function can be used to control the timing of a logic rule in the IF conditions. “TIMEOUT” is the only

operator here. For example, you can delay the triggering of an action or repeat an action periodically. Select the

IF condition for Timer and click on the property button ( ) to enter the Timer Settings window.
