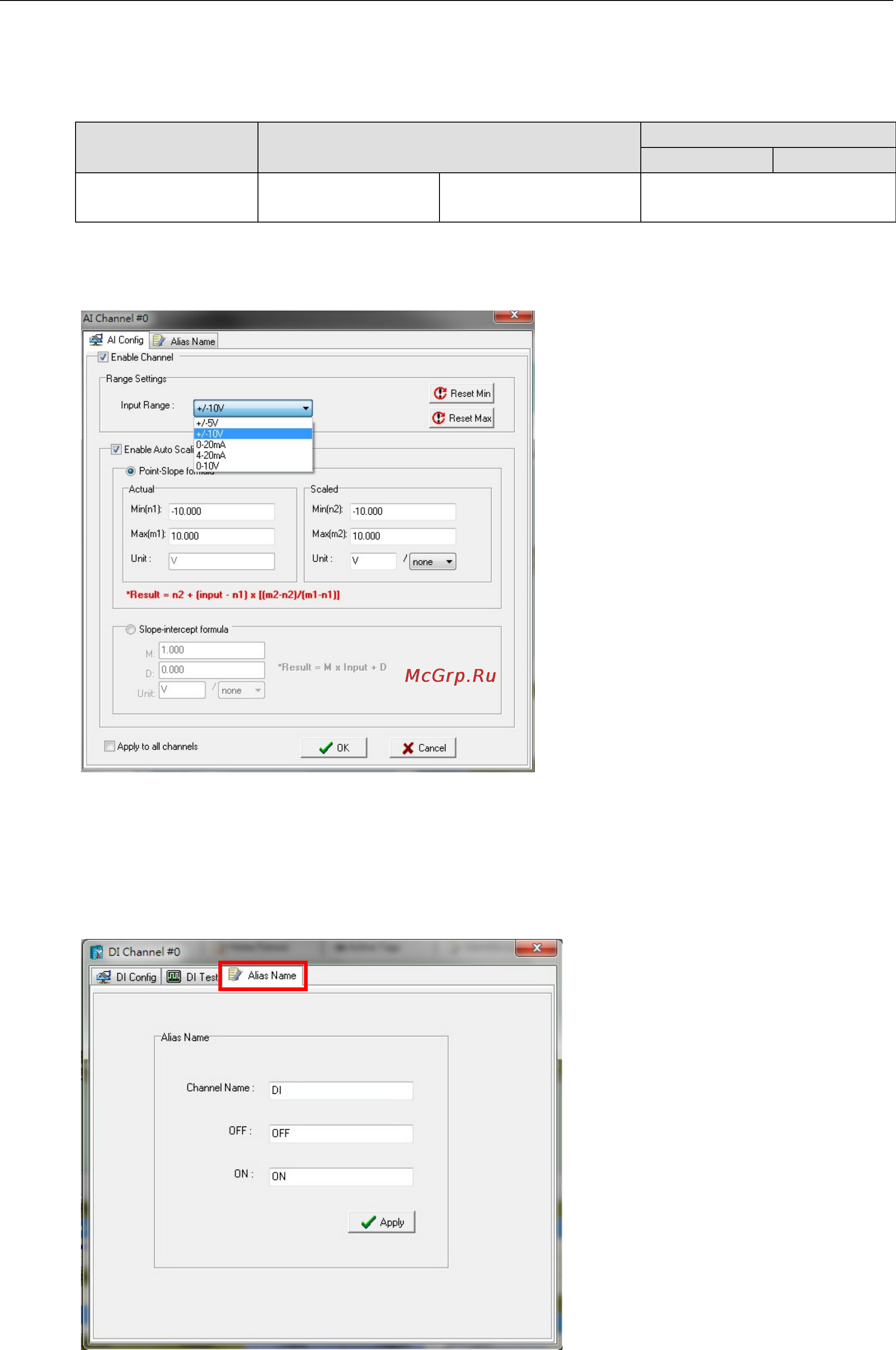

ioLogik W5300 Click&Go Logic
4-7
Analog Input Mode Selection
Analog input channels can use either voltage or current to transmit signals.
Model Number of Analog Input Channels
Mode Selection
Voltage Current
ioLogik W5340-HSPA
ioLogik W5340
4 ±5 V, ±10 V, 0-10 V
0 to 20 mA,
4 to 20 mA
When logged in as administrator, double click on a channel on the I/O Configuration panel to configure that
channel’s settings. A window will open with configuration options for that channel. Each AI channel will be
configured to measure either voltage or current according to the Range Settings.
Alias Configuration
Alias Name helps users configure the alias of a DI or DO channels and define the logic level (0 or 1) for the
ON/OFF status. The Alias can be monitored by the ioAdmin utility, or queried by using a user-defined program
based on the Moxa MXIO library or standard Modbus/TCP protocols.
