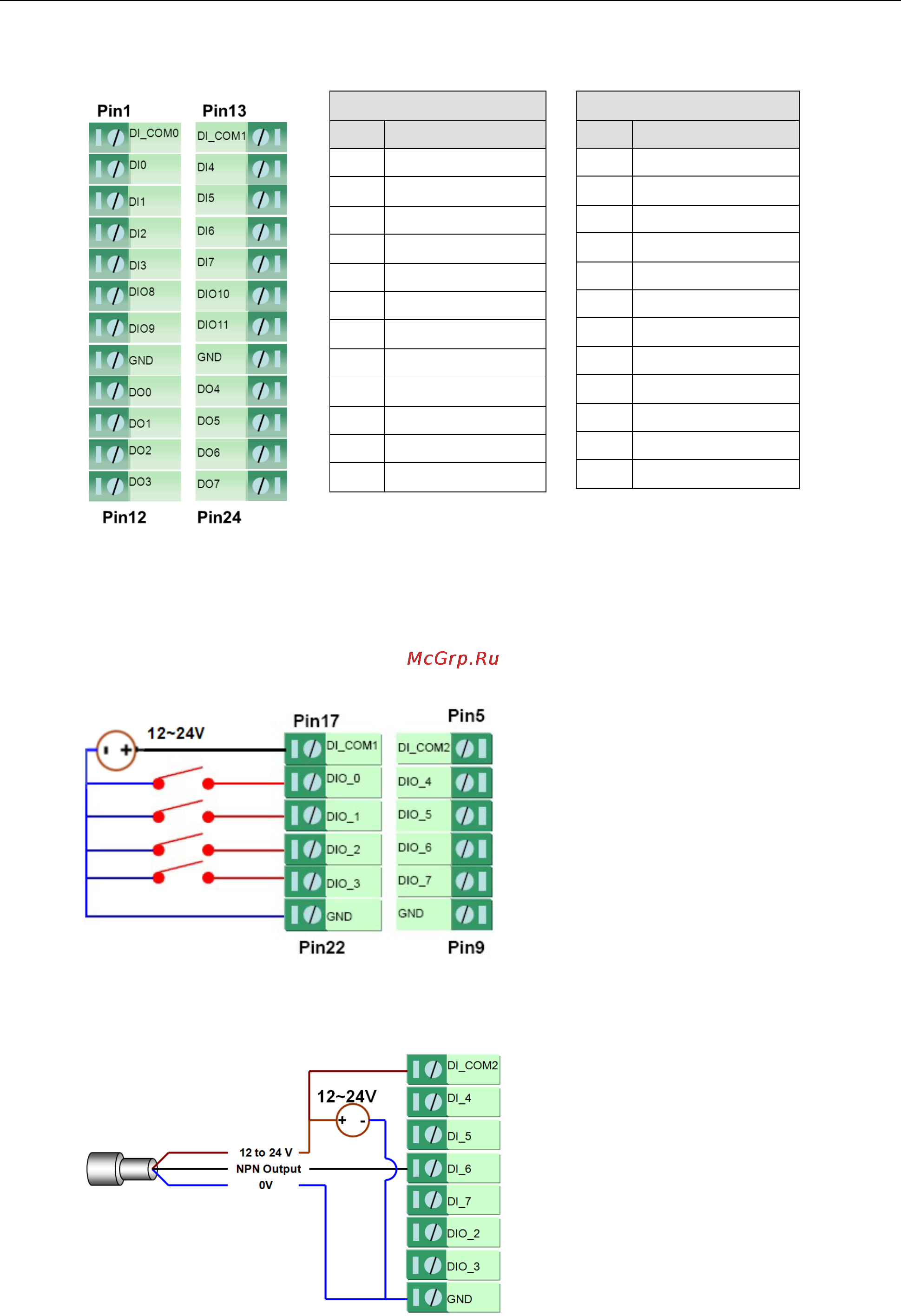

ioLogik W5300 Pin-outs and Cable Wiring
A-4
TB2: I/O Terminal Block (W5312)
Terminal Block (Left)
Pin Signals
1 DI_COM0
2 DI0
3 DI1
4 DI2
5 DI3
6 DIO8
7 DIO9
8 GND
9 DO0
10 DO1
11 DO2
12 DO3
Terminal Block (Left)
Pin Signals
13 DI_COM1
14 DI4
15 DI5
16 DI6
17 DI7
18 DIO10
19 DIO11
20 GND
21 DO4
22 DO5
23 DO6
24 DO7
Cable Wiring
Digital Input Dry Contact
Digital Input Wet Contact
NPN Type Sensors Connection
