ioLogik W5300 The ioAdmin Utility

3-25

After the restart ioAdmin should automatically detect your ioLogik E1200 devices. You may now use ioAdmin’s

Click&Go, Active Tags, and Data Logging panels to complete the configuration of the I/O expansion units.

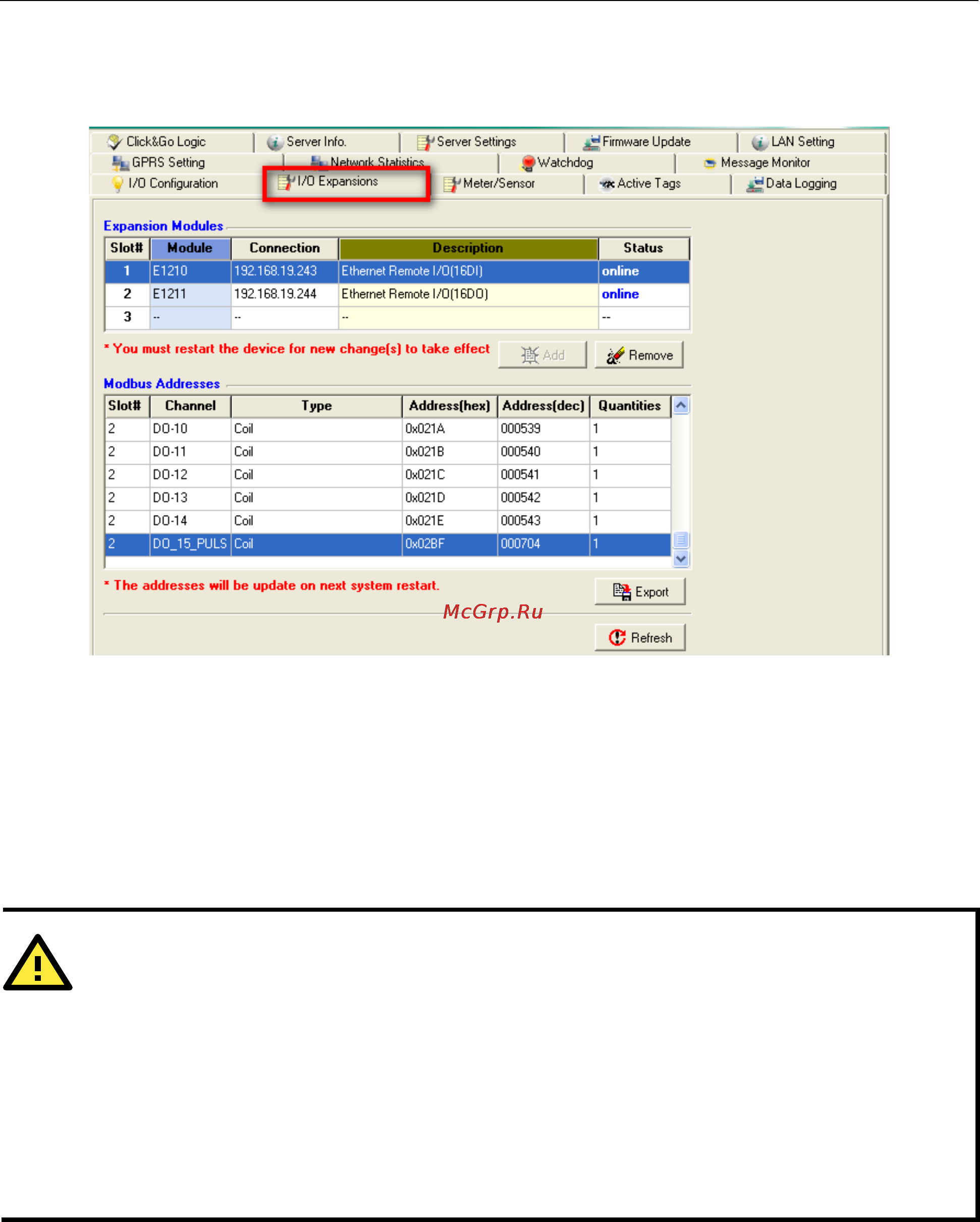

Once the devices are detected, you should see them listed in the I/O Expansions panel as shown below.

The Slot# column shown in the I/O Expansion panel will list the ioLogik E1200 units in the order their

configuration files are added. This means that if you first import the device closest to your ioLogik W5300,

that device will be listed as Slot# 1. If you then add the E1200 that is most distant from the W5300 (i.e.: the

module that is last in the chain), that module will be listed as Slot# 2, while the middle device (second in the

chain) will be added last, and so listed as Slot# 3. To avoid confusion, please make sure that you add the

devices in the order that makes the most sense for your topology.

The I/O Expansion panel will show the Modbus Address; the list of Modbus addresses may be exported to

a local file using the Export button.

ATTENTION

The following ioLogik E1200 models

may be used as external I/O expansion units:

E1210

(16 DIs), E1211 (16 DOs), E1212 (8 DIs and 8 DIOs), E1213

(4DI, 4 source DO, 4 DIO (source DO),

E1214

(6 DIs and 6 Relays), E1240 (8 DIs), E1241 (4 AOs), E1242 (4 AIs, 4 DIs, and 4 DIOs), E1260

RTDs), and

E1262 (8TCs).

In addition to the models listed above, all

E12XX-T models may also be used for external I/O expansion.

Please keep in mind that

ioLogik E12000 expansion units can only be used with ioLogik W5300 series using

the

following

firmware versions:

W5312

: V1.3 and above; W5340: V1.6 and above; W5340-HSPA: V1.3 and above

5340 models with firmware v1.5 can support these 5 models: E1210, E1211, E1212, E1214, and E1240.
