ioLogik W5300 Click&Go Logic
4-21

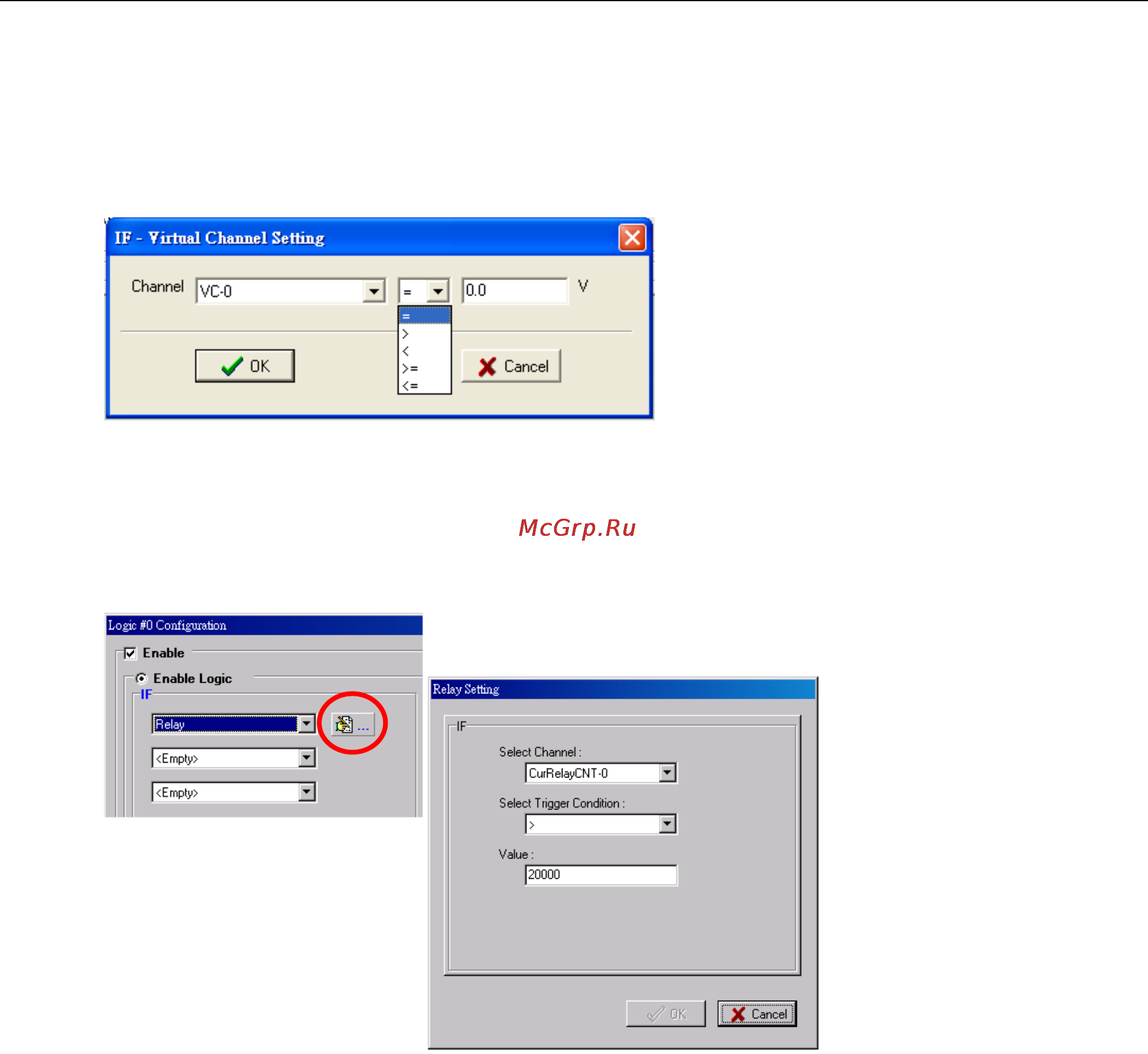

Virtual Channel
VC refers to the readings of a statistics channel. The value can be recorded in the data log file, or specified to
trigger an action. Units for the value are determined by the user defined unit, or the scaling results. For
example, VC-0 > 15 ml/s represents a water flow amount greater than 15 ml/s.
Relay (Counter)
Relay refers to the current counts of the relay usage. Checking the current counts of a relay will produce the
action. For example, if the average life-cycle of a relay is 25,000 times, an alarm e-mail may be generated
when the counter reaches 20,000 times (CurRelayCNT-0 > 20000) to report the need for a replacement.
