ioLogik W5300 The ioAdmin Utility
3-4
Menu Bar: System
Several operations can be accessed from the System menu.

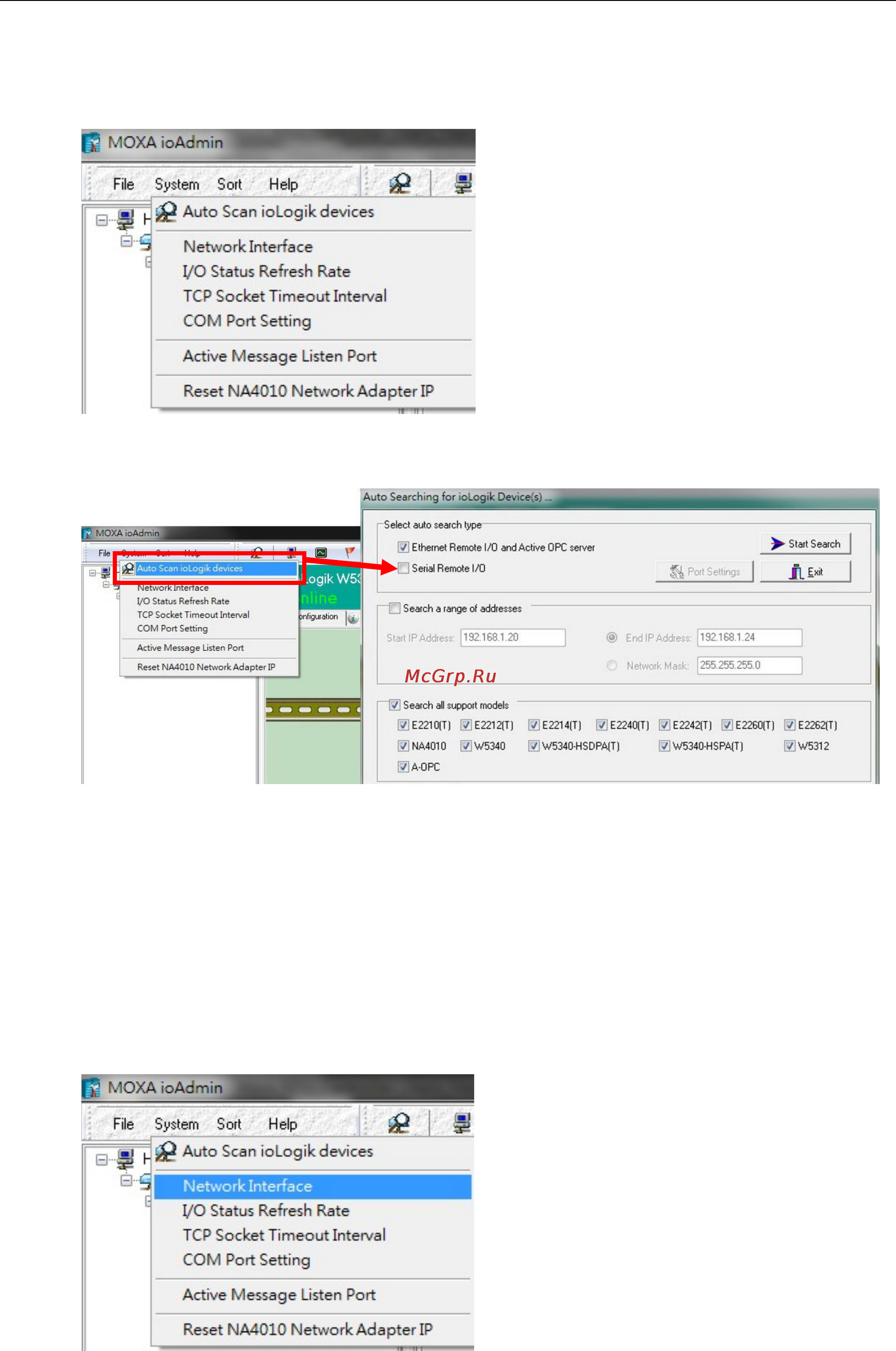

Auto Scan ioLogik Devices searches the network for connected ioLogik devices. This is useful when
connecting a new device for the first time, or when recovering from a network failure.
Auto-scan allows you to search according to Type, IP Range, or Model.
Type: Search for ioLogik remote I/O terminals by the type of connection, either Ethernet or Serial.
IP range: There are two ways to define a range of IPs to search: by entering a starting IP address and an
ending IP address in the appropriate boxes, or by using a netmask with a starting IP address.
Model: Search for selected models; click all that you are interested in finding.
Click Start Search to begin. Whenever a device is found, it will display in the lower portion of the window.
Network Interface: If the PC has multiple network adapters installed, this allows you to select which NIC the
device will connect over. The default network interface will be the same as the one set in Windows. If the
ioLogik device is not connected to the selected interface, the PC will not be able to detect it.
