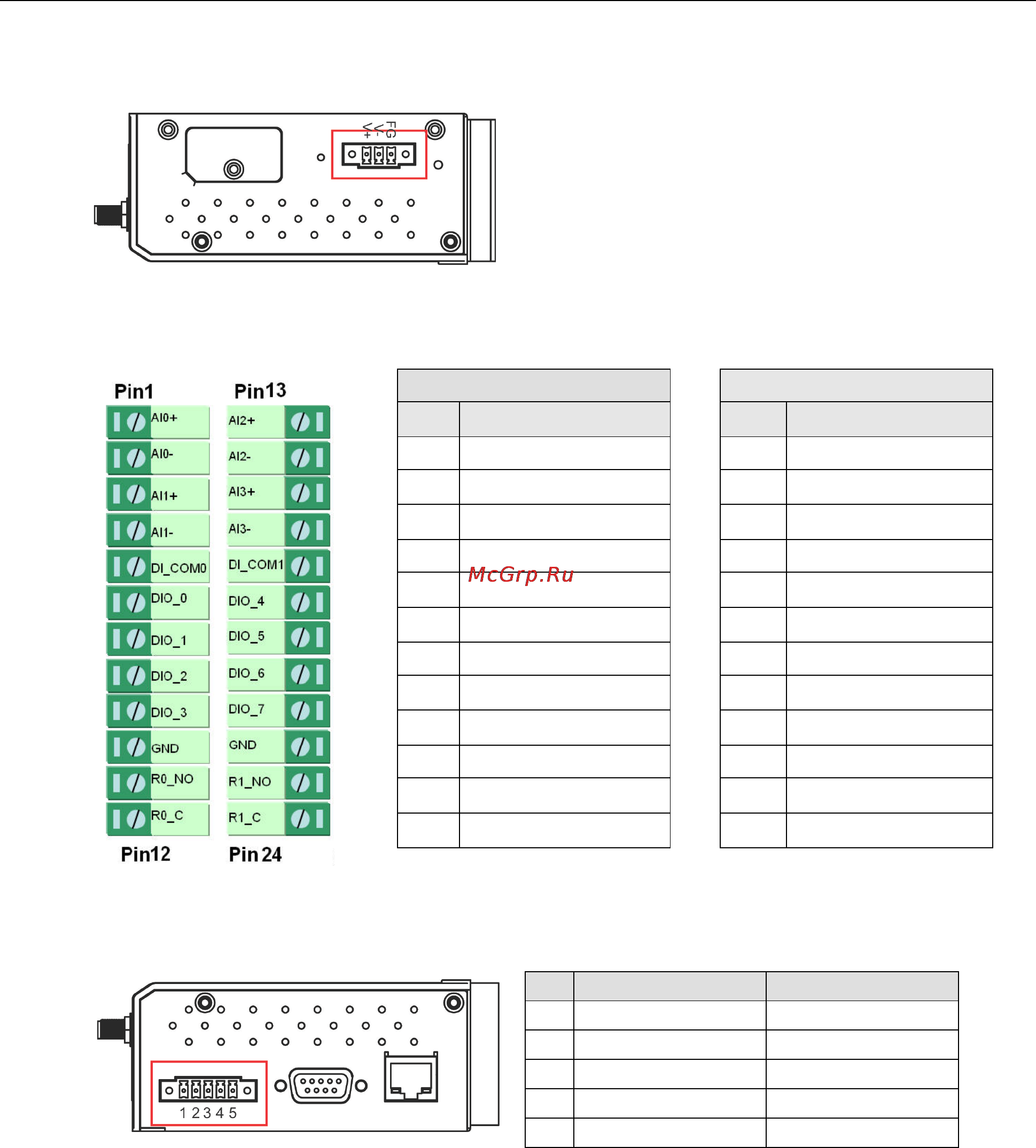

ioLogik W5300 Pin-outs and Cable Wiring
A-3
TB1: Power Input Terminal Block
TB2: I/O Terminal Block (W5340)
Terminal Block (Left)
PIN Signals
1 VINO+
2 VINO-
3 VIN1+
4 VIN1-
5 DI_COM1
6 DIO0
7 DIO1
8 DIO2
9 DIO3
10 GND
11 R0_NO
12 R0_C
Terminal Block (Right)
PIN Signals
13 VIN2+
14 VIN2-
15 VIN3+
16 VIN3-
17 DI_COM2
18 DIO4
19 DIO5
20 DIO6
21 DIO7
22 GND
23 R1_NO
24 R1_C
TB3: 5-pin, 4-wire/2-wire RS-422/485 Terminal Block
Pin RS-422/485(4W) RS-485(2W)
1 Signal GND GND
2 TxD-(A) –
3 TxD+(B) –
4 RxD-(A) Data-(A)
5 RxD+(B) Data+(B)
