ioLogik W5300 The ioAdmin Utility

3-27

Step 3: Connect the ioLogik W5300 and E1200.

Connect the W5300 to the first E1200 I/O expansion module using an Ethernet cable via the RJ45 port. You

may then daisy chain the second and third expansion modules using the E1200’s switched Ethernet ports.

Step 4: Restart the ioLogik W5300.

After you have exported the configuration files into the w5300’s ioAdmin utility, restart the ioLogik W5300.

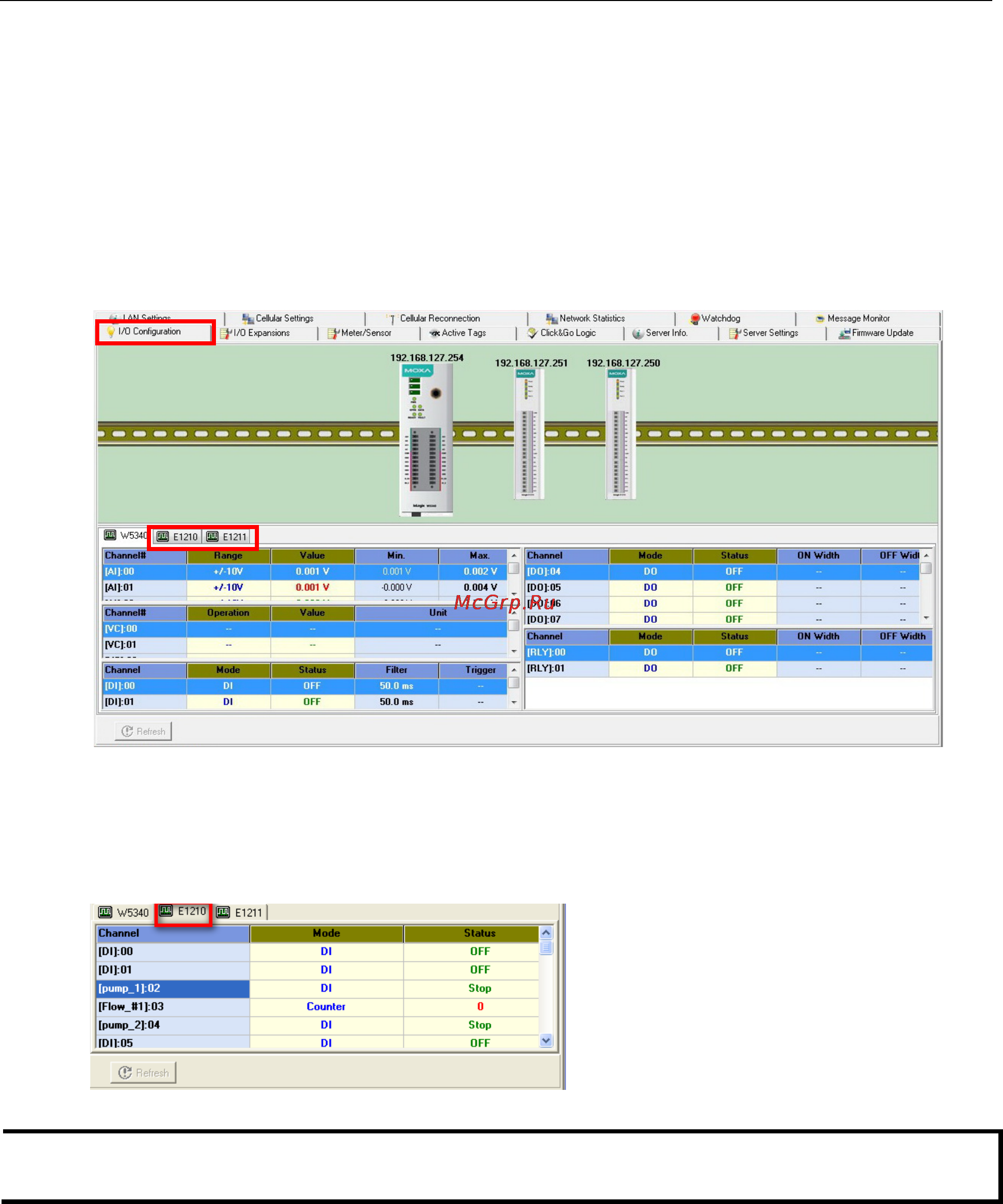

Open ioAdmin and log in. The ioLogik W5300 and expansion modules will be shown on the screen, with the IP

address of a device listed above the device. When you add an I/O expansion module, such as the ioLogik E1210

or E1211, additional tabs will appear, as shown below.

Step 5: Use ioAdmin to configue the higher order logic for the expansion modules.

Click on the I/O Expansion tab to check I/O status for individual devices, or to set the alias for a selected I/O

channel. You may also use the Click&Go, Data Logging, and Active Tags panels to configure automated

behavior and routines for each E1200 I/O terminal.

NOTE

You cannot configure the

E1200’s I/O channels usihg ioAdmin. The configuration must be done with t

he E1200

configuration tool

, either over the web console or using ioSearch.
