ioLogik W5300 The ioAdmin Utility
3-12

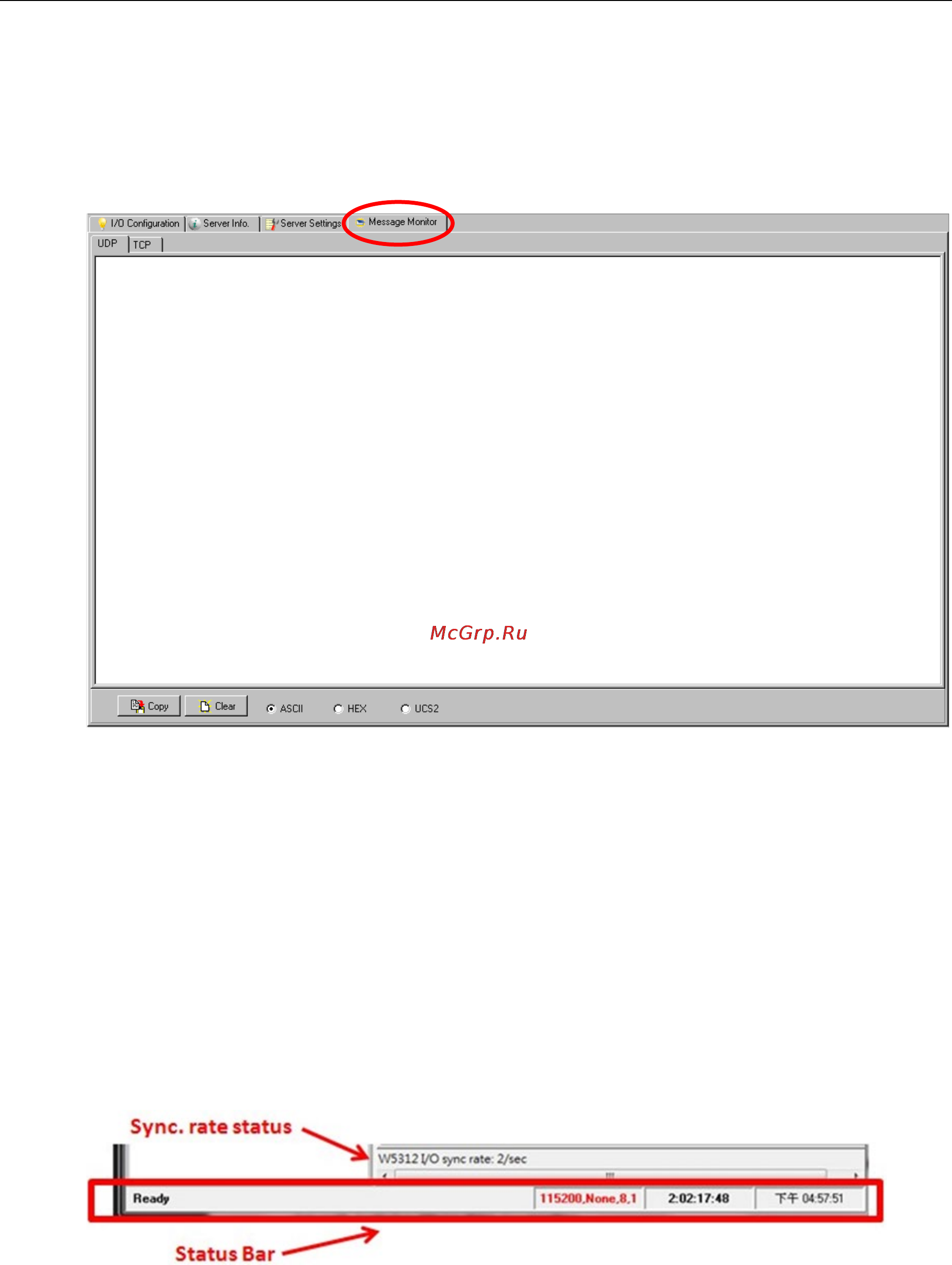

Message Monitor Panel (General)
The Message Monitor will display any TCP/UDP Active Messages reported by the ioLogik W5300. When you
install the unit for the first time, the ruleset will not have been defined yet, so there will be no messages on the
monitor. When a ruleset has been defined and activated, any TCP/UDP messages that have been triggered by
sensor events will be shown on the monitor.
Messages can be displayed in ASCII, HEX, or 2-byte Unicode (UCS2). To select your preferred code, check the
appropriate button at the bottom of the window. Unicode supports multiple languages.
Synchronization Rate Status Bar
The current sync rate is displayed on the bar at the bottom of the window. The number shows how often the
ioLogik is polled for device status from the ioAdmin utility. The rate can be adjusted by clicking Menu Bar
System I/O Status Refresh Rate. Higher sync rates result in a higher network load.
ioAdmin Status Bar
The status bar shows ioAdmin status information, such as program status (ready, searching), ioLogik I/O
details, and system time.
