ioLogik W5300 The ioAdmin Utility
3-9
ioAdmin Navigation Panel
The navigation panel shows an overview of every configured ioLogik device currently connected to the network,
with devices ordered according to the selected Sorting Views (see above). The default view is By
Connection. You can choose a different sorting method by clicking the quick-link buttons at the top of the
navigation panel.

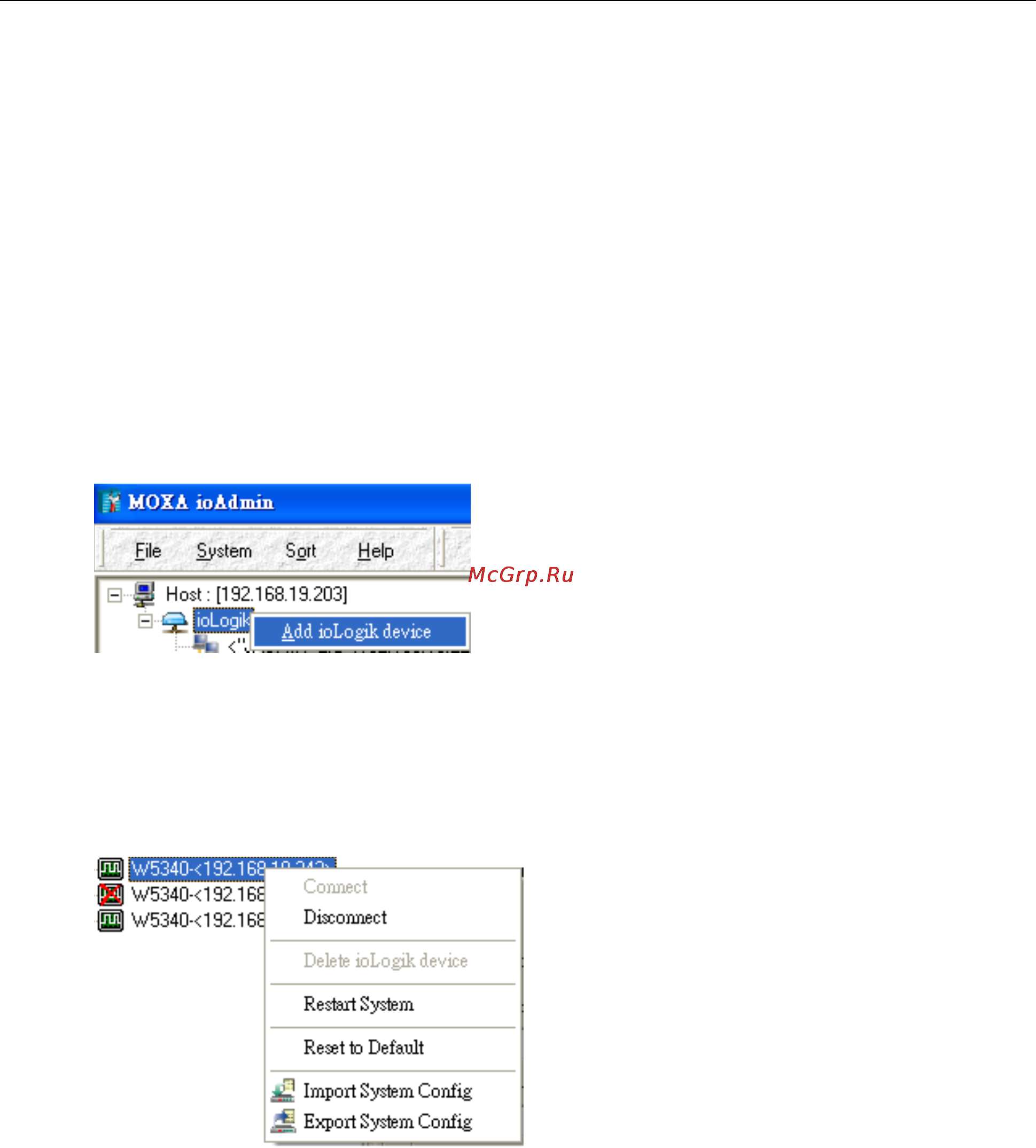

The navigation panel offers many functions (such as connect and disconnect). Advanced functions require
administrator rights. The action menu is accessed by right clicking on the server’s model name in the
navigation panel.
Basic Functions: Add, Connect, and Disconnect
Add ioLogik ioLogik device: Right click an ioLogik tag, then select this command to manually add an ioLogik
device or Active OPC server.
Connect: Attempt to connecting to the selected device over the network.
Disconnect: Drop the network connection to the selected ioLogik.
Advanced Functions: Delete, Restart, Reset, Import/Export Config
You must be logged in as administrator to use these commands.
Delete ioLogik device: Select this command to remove the selected ioLogik from the navigation panel. To
successfully delete a device from the device list shown in the navigation panel, the target must first be
disconnected from the network. Once deleted, a device must be reconnected to the network using the ioAdmin
search process, described above.
Restart System: Select this command to restart a selected ioLogik RTU.
Reset to Default: Select this command to reset all settings on the selected ioLogik, including the password
and all configuration settings, to factory default values.
Export System Config: Select this command to export the selected ioLogik’s configuration to a text file. We
strongly recommend that you use this to back up your configuration after you have finished configuring the
ioLogik for your application.
Import System Config: Select this command to load a configuration for the selected ioLogik from a
configuration file. The new configuration will not take effect until the ioLogik has been restarted. This command
can be used to restore a configuration after loading the factory defaults, or to duplicate a configuration to
multiple ioLogik units.
