ioLogik W5300 Click&Go Logic
4-15

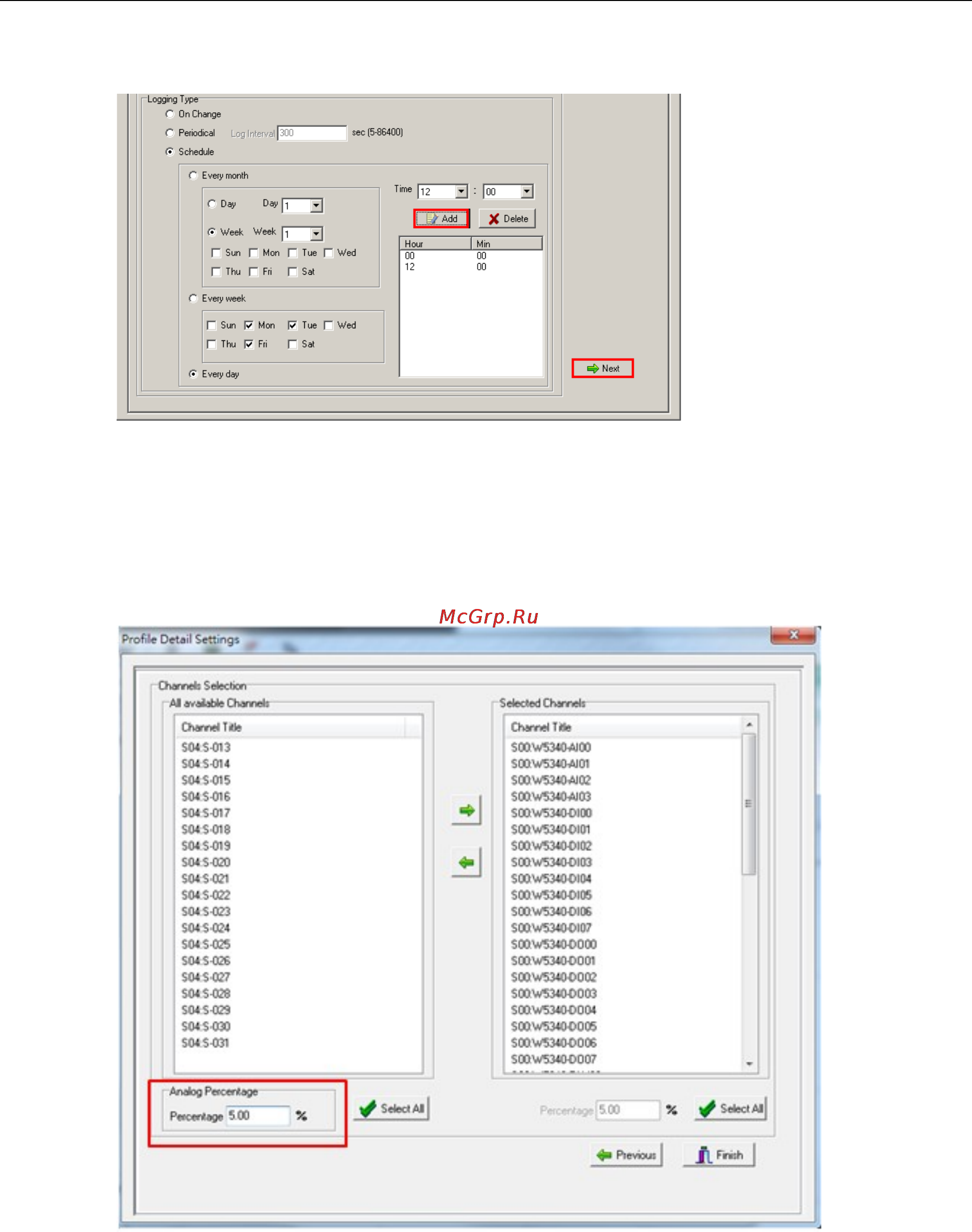

3. Define how to log the data by specifying the Logging Type. Users can choose to log when the I/O status
changes (On Change), to log periodically (Periodical), or by pre-configured schedule (Schedule).
The Schedule settings are extremely flexible and can log by day, week, or month. Specify the hours and
then click the Add button to add a setting of the schedule to the list.
Click Next to proceed.
4. Specify the channels to be logged. The percentage indicates the change of an analog channel when
choosing the On Change logging type. Specify the percentage for an analog channel before selecting the
channel in the right column.
5. Click Finish.
6. Click Save.
