11.73

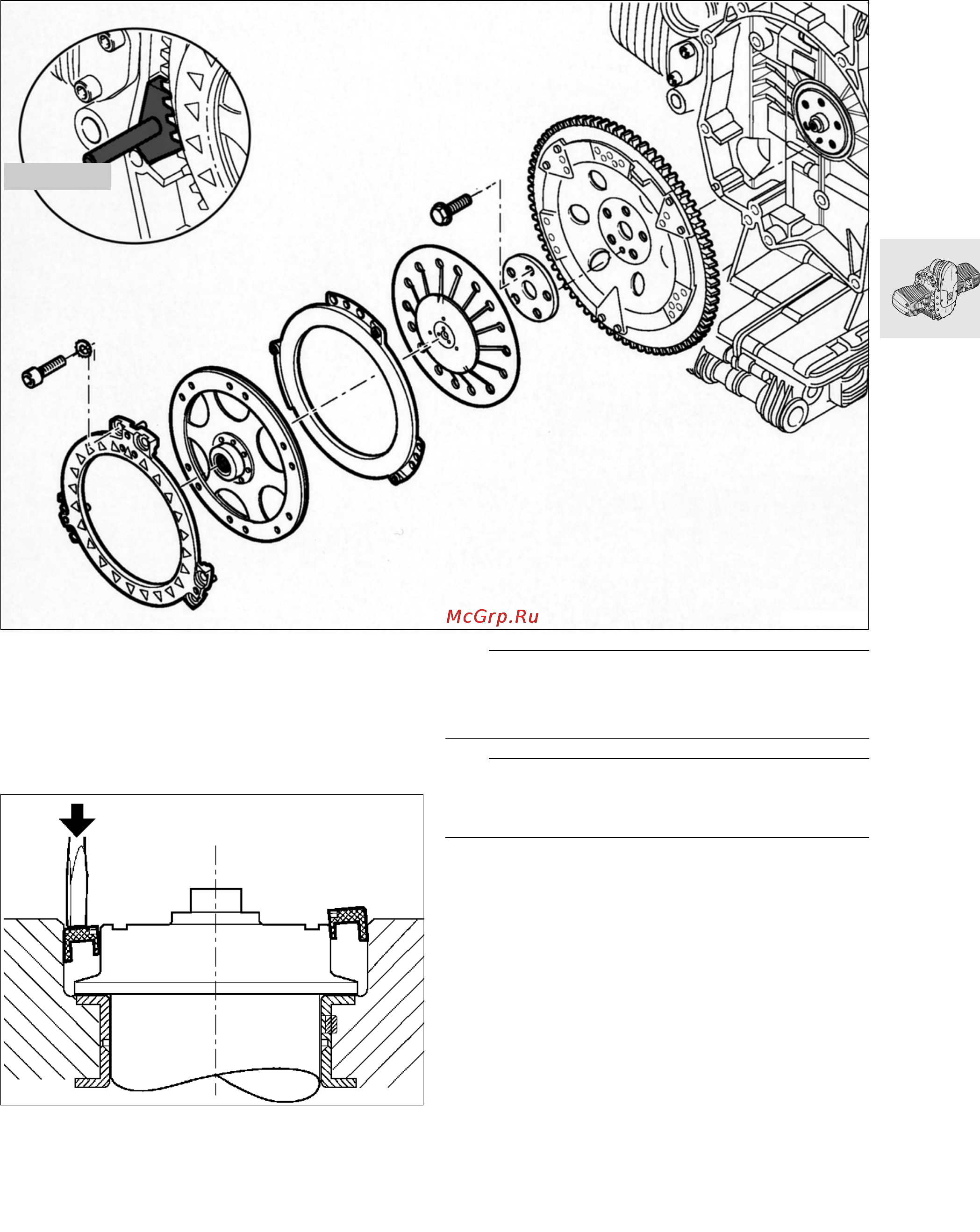

Removing radial shaft seal on crank-
shaft with engine installed
•
Lock clutch housing with retaining device,
BMW No. 11 5 640.
•
Remove clutch.
•
Carefully lever radial shaft seal out, using a
screwdriver.
e Caution:
Avoid damaging the sealing faces on the
housing and the crankshaft.
L Note:
When dismantling the crankcase, the radial seal can
be taken out.
11 5 640
RS210010
RS110270
