18.3
18

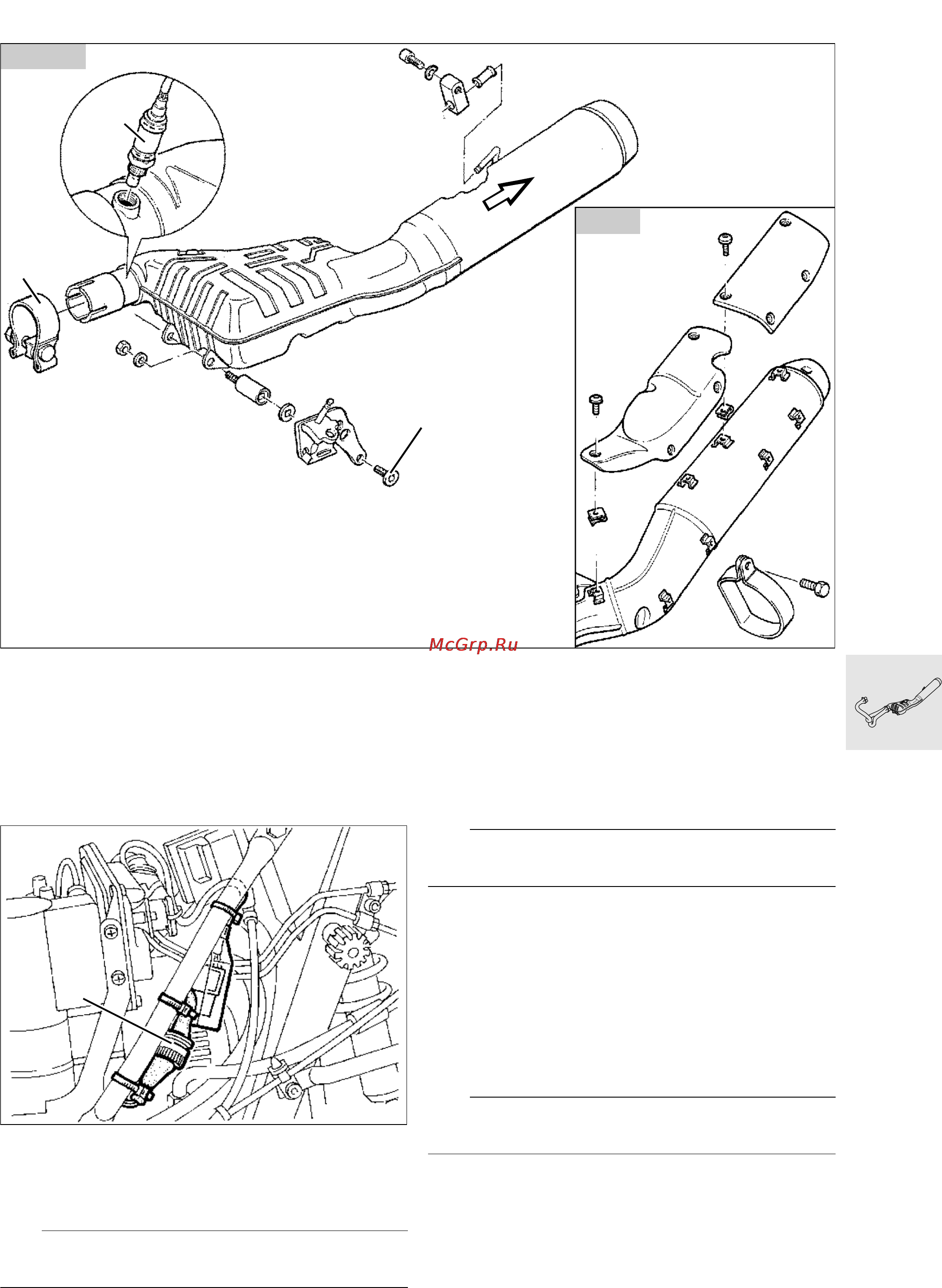

Removing and installing exhaust
system
Removing and installing muffler
(silencer)
•
[KAT] Detach fuel tank and pull it to rear.
•
Separate plug connector (1) for oxygen sensor
and detach cable.
e Caution:
Do not pull the oxygen sensor cable.
•
Loosen pipe clip (2).
•
Unfasten retaining screws (3).
•
[RS/RT] Take off the retainer at the rear muffler
mount.
•
[GS/R] Unscrew the rear pipe clip.
•
Remove rear muffler.
•
Install in the reverse order of work.
e Caution:
Note position of wiring for oxygen sensor.
X Tightening torque:
RS/RT] Muffler to footrest............................ 35 Nm
[GS/R] Muffler at rear frame......................... 24 Nm
Muffler to support plate for center stand ...... 20 Nm
Clip on muffler
(Grease clamping surface with Never Seeze) 50 Nm
•
[CAT] Remove and install oxygen sensor (5).
e Caution:
After trial run, read out Motronic fault memory.
X Tightening torque:
Oxygen sensor
(Grease with Never Seez) ............................. 55 Nm
5
2
GS/R
3
RS/RT
RS180020
1
RS180050
