46.34

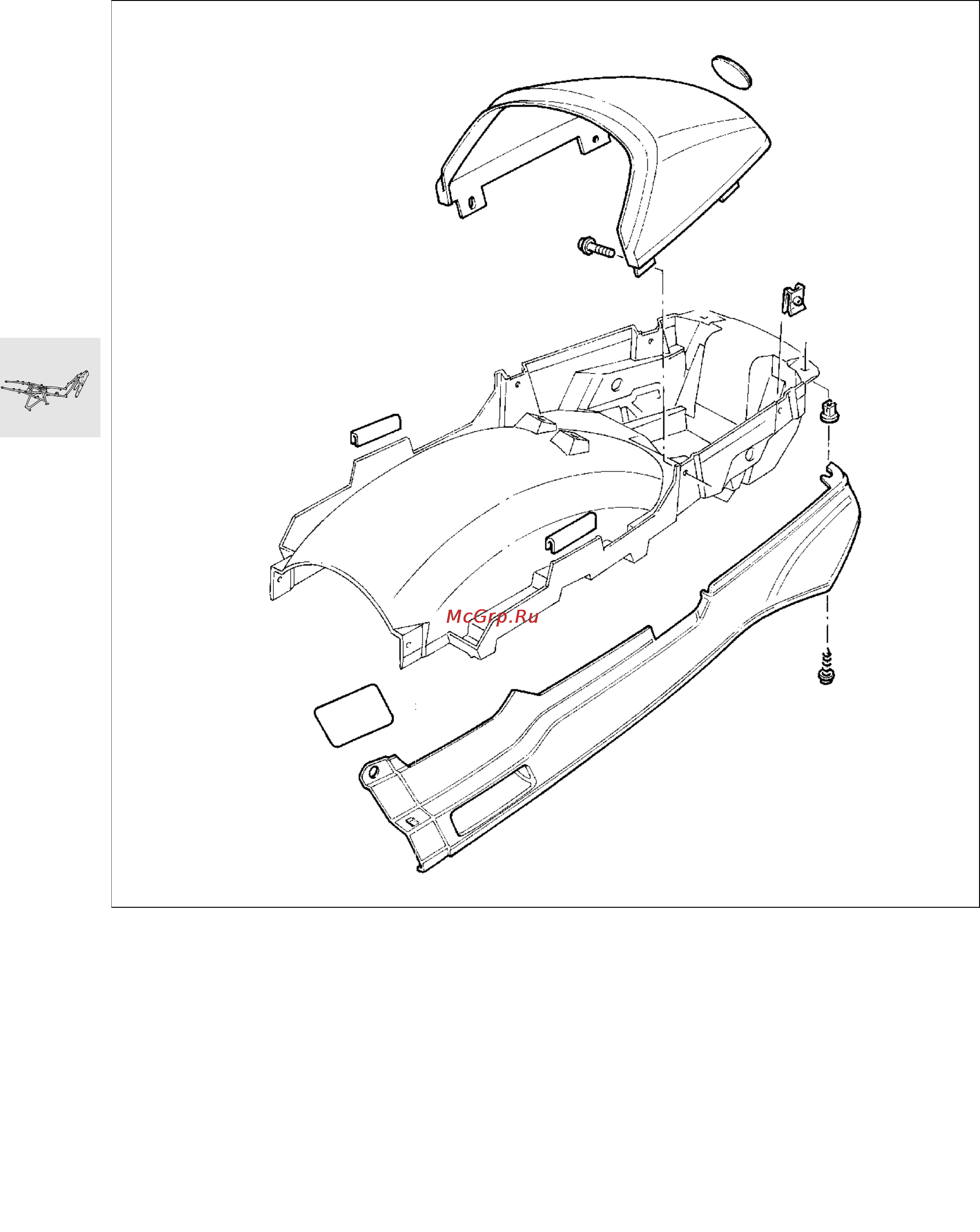

[RS] Removing and installing rear
fairing
•
Remove dualseat.
•
Remove rear light.
•
Remove rear fairing panel.
•
Install in the reverse order of work.
RS460040
