46.47

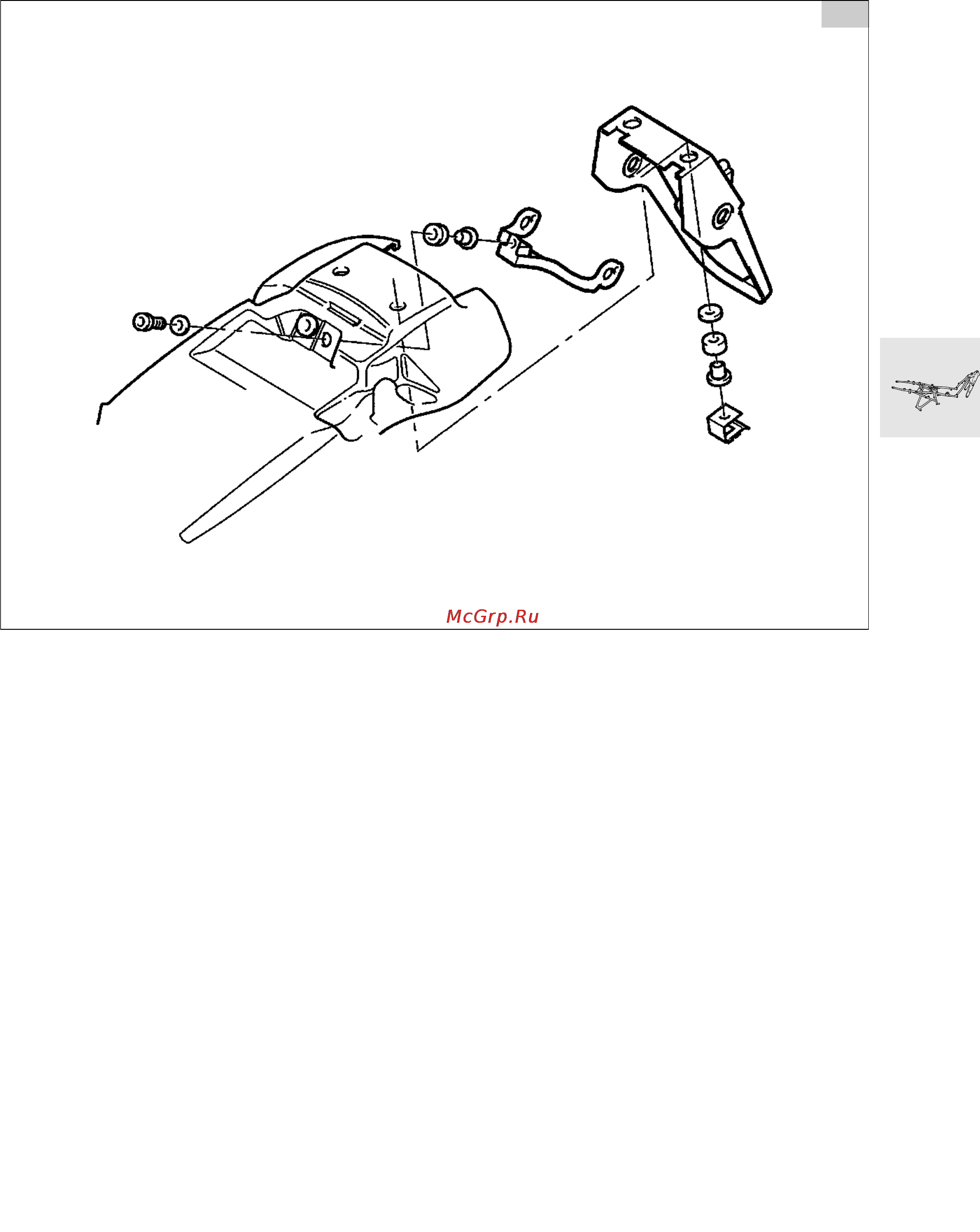

[GS/R] Removing and installing
number plate bracket
•
Take off rear section of dualseat.
•
[GS] Remove tool box.
•
[GS] Remove rear light.
•
Remove turn indicators.
•
Remove number plate bracket.
•
Install in the reverse order of work.
GS
GS460151
