11.41
Removing engine
L Note:
Auxiliary shaft, timing chains, chain tensioner/guide
rails and crankshaft can only be dismantled after the
engine has been removed. All other components
can be dismantled while the engine is still installed.
•
Drain engine oil.
•
[RT] Remove lower section of fairing.
•

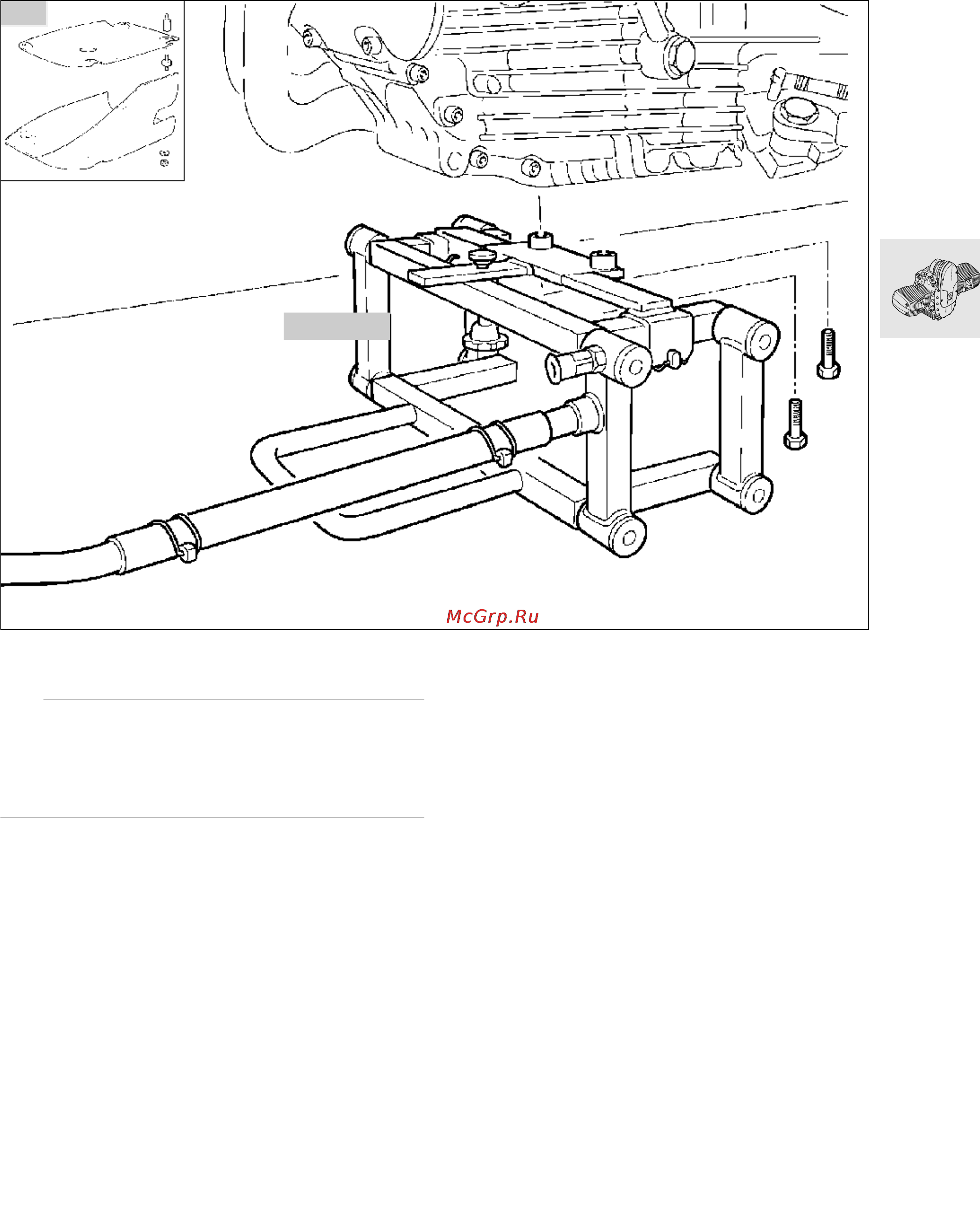

Attach stand, BMW No.001520 to motorcycle.
•
[GS] Use extension bushings and bolts,
BMW No. 00 1 527.
GS
00 1 520
RS110520
