11.85

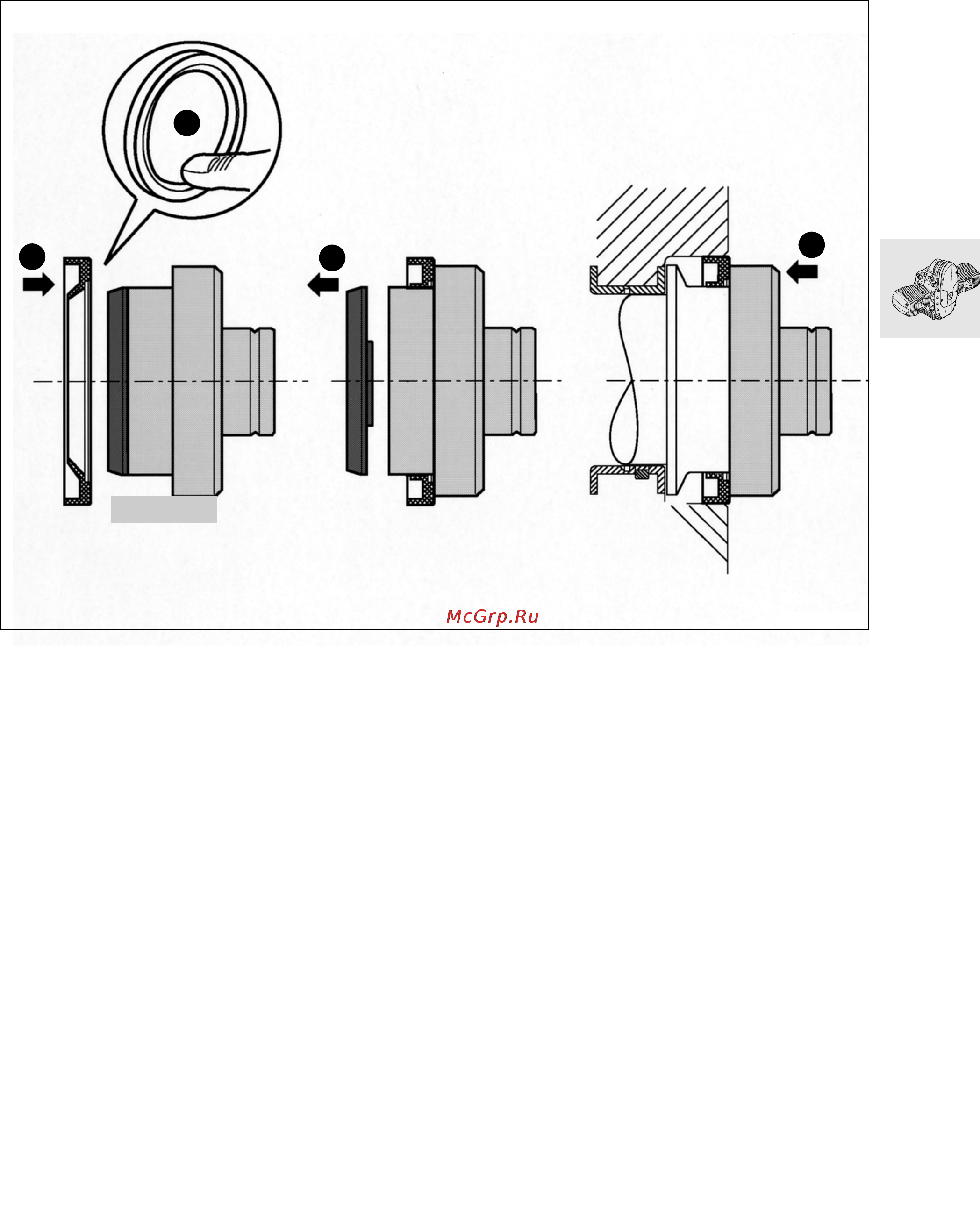

Installing radial seal on crankshaft
•
Pre-form the lip of the radial shaft seal carefuilly
by hand (1).
•
Oil the radial shaft seal at the sealing/contact
surface.
•
Place radial seal over sliding sleeve (2)/remove
sliding sleeve (3).
•
Drive radial shaft seal in with handle,
BMW No. 00 0 500, and drift with sliding sleeve,
BMW No. 11 5 660 (4).
2
3
4
1
11 5 660
RS110400
