12.10

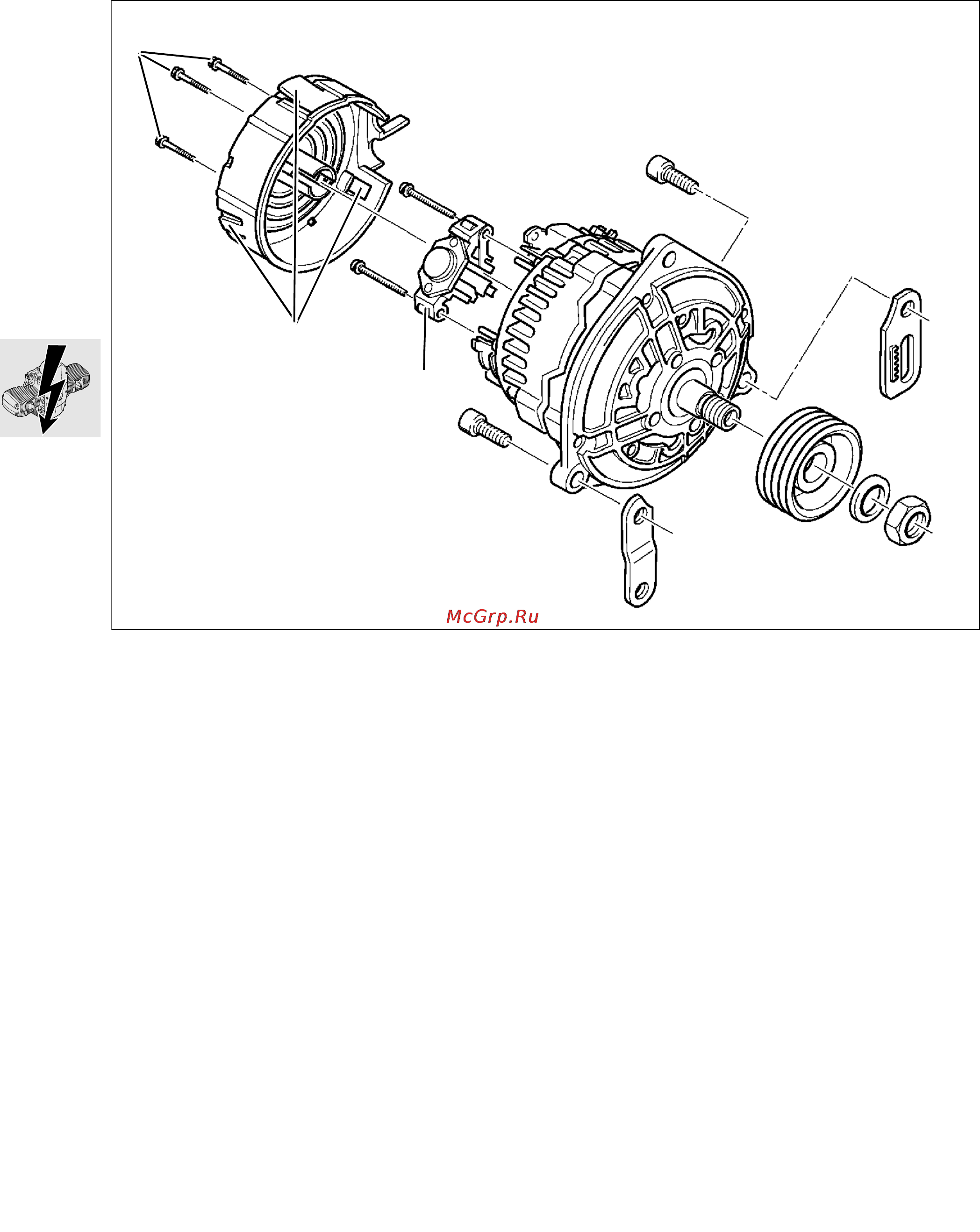

Dismantling/reassembling alterna-
tor
•
Take out the cover retaining screws (1).
•
Release clips (2) and remove the cover.
•
Remove voltage regulator (3).
•
Remove the Poly-V belt pulley.
•
Install in the reverse order of work.
X Tightening torque:
Belt pulley at alternator................................. 50 Nm
3
2
1
RS120050
