46.14

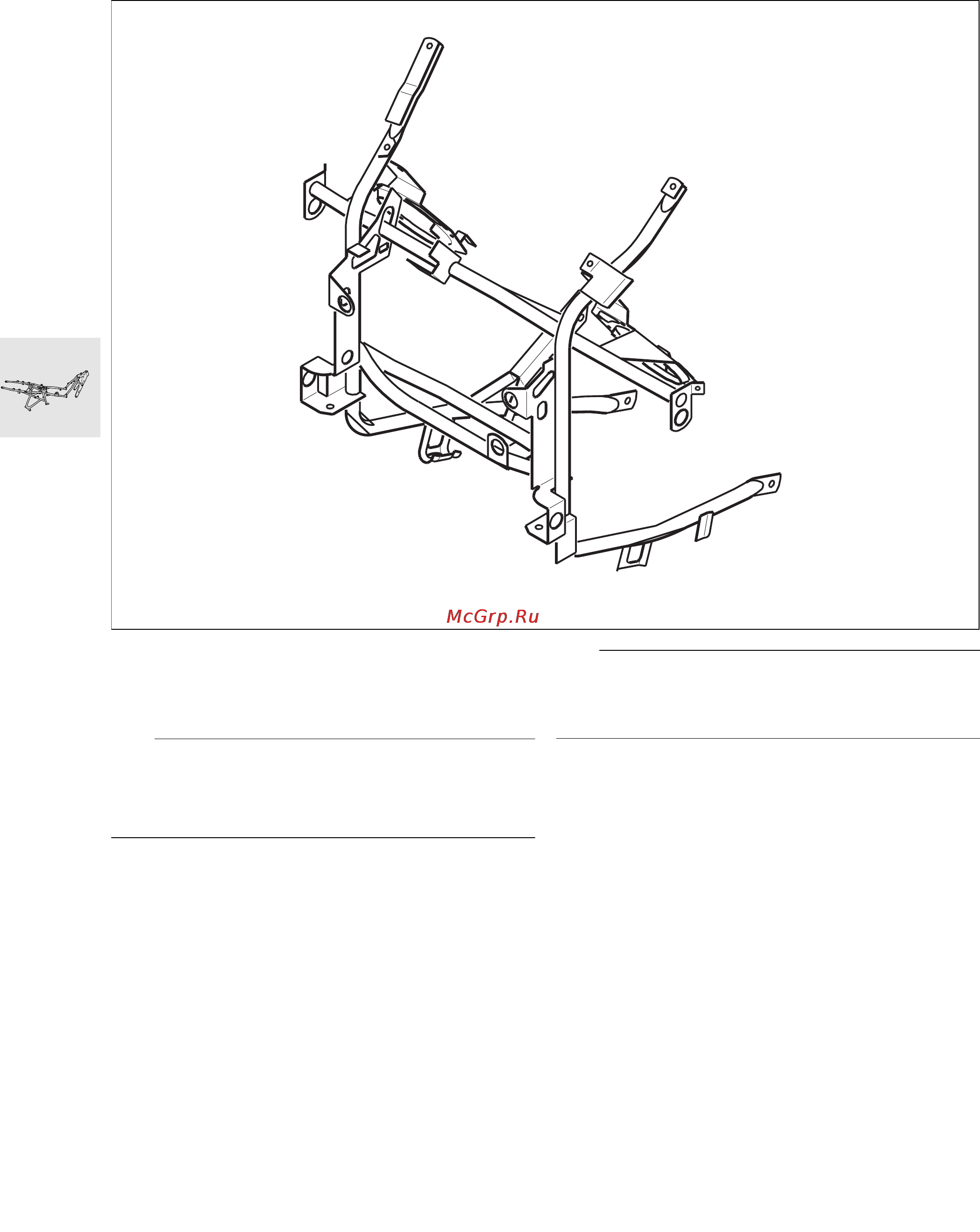

[RT] Removing and installing fairing
holder
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
Remove side mirrors.
•
Remove side trim panels.
•
Remove inner cover for trim.
•
Remove windshield.
•
Remove upper section of fairing.
•
Remove windshield holder.
•
Detach instrument cluster.
•
Remove storage compartment and air intake
stub pipe.
•
Detach plug strips, wiring harness and wires
from fairing holder.
•
Detach oil cooler mount.
•
Remove trim support bracket.
L Note:
Do not scratch the mudgard when setting down the
oil cooler.
•
Install in the reverse order of work.
X Tightening torque:
Fairing support bracket to frame ................. 20 Nm
RT460120
