46.16

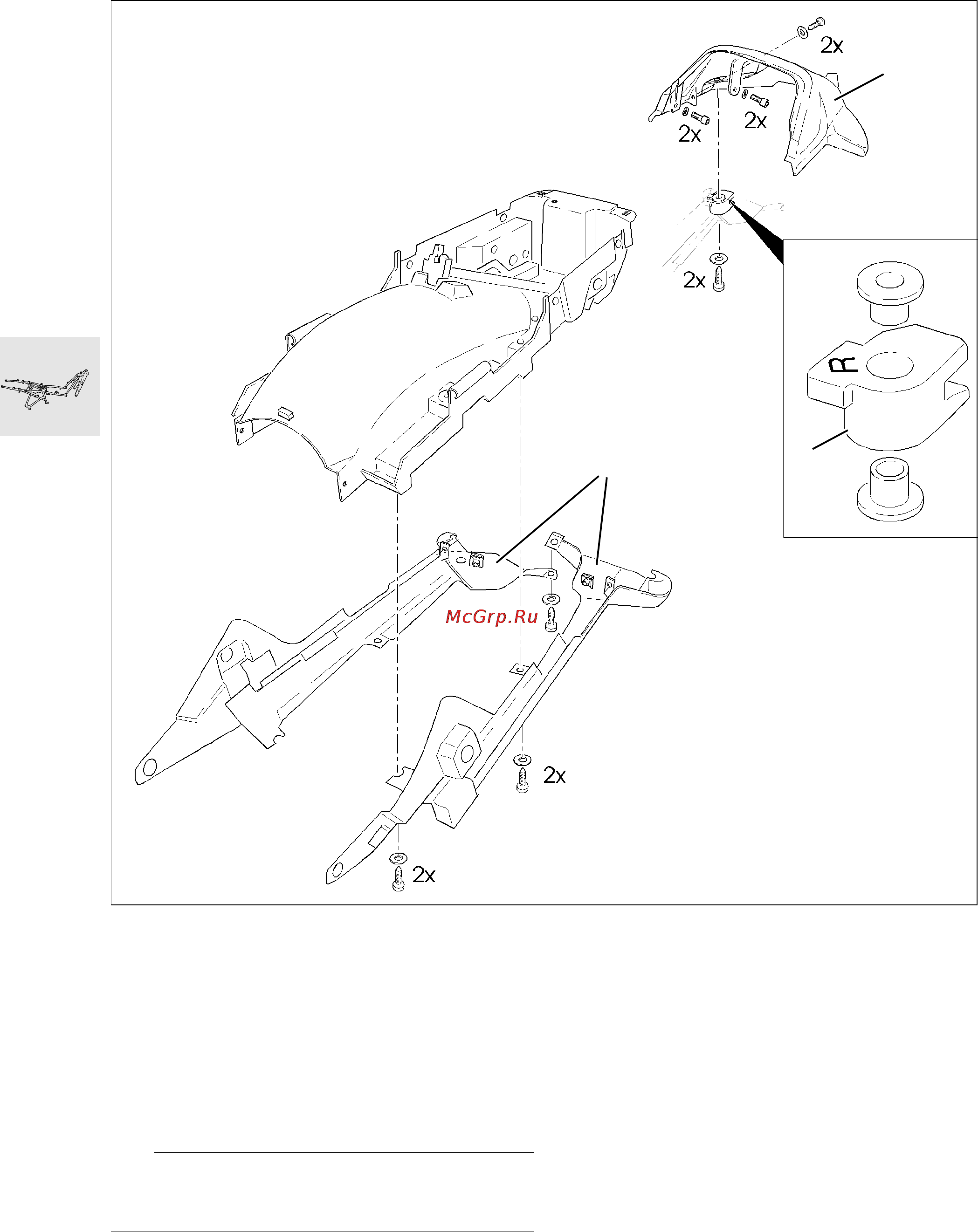

[RT] Removing and installing rear
fairing
•
Remove dualseat.
•
Remove small side sections of fairing.
•
Remove rear light.
•
Remove luggage rack and case holder.
•
Remove rear fairings (1) and (2).
•
Install in the reverse order of work.
L Note:
When installing, note right and left rubber
buffers (3).
3
1
2
RT460331
