12.7

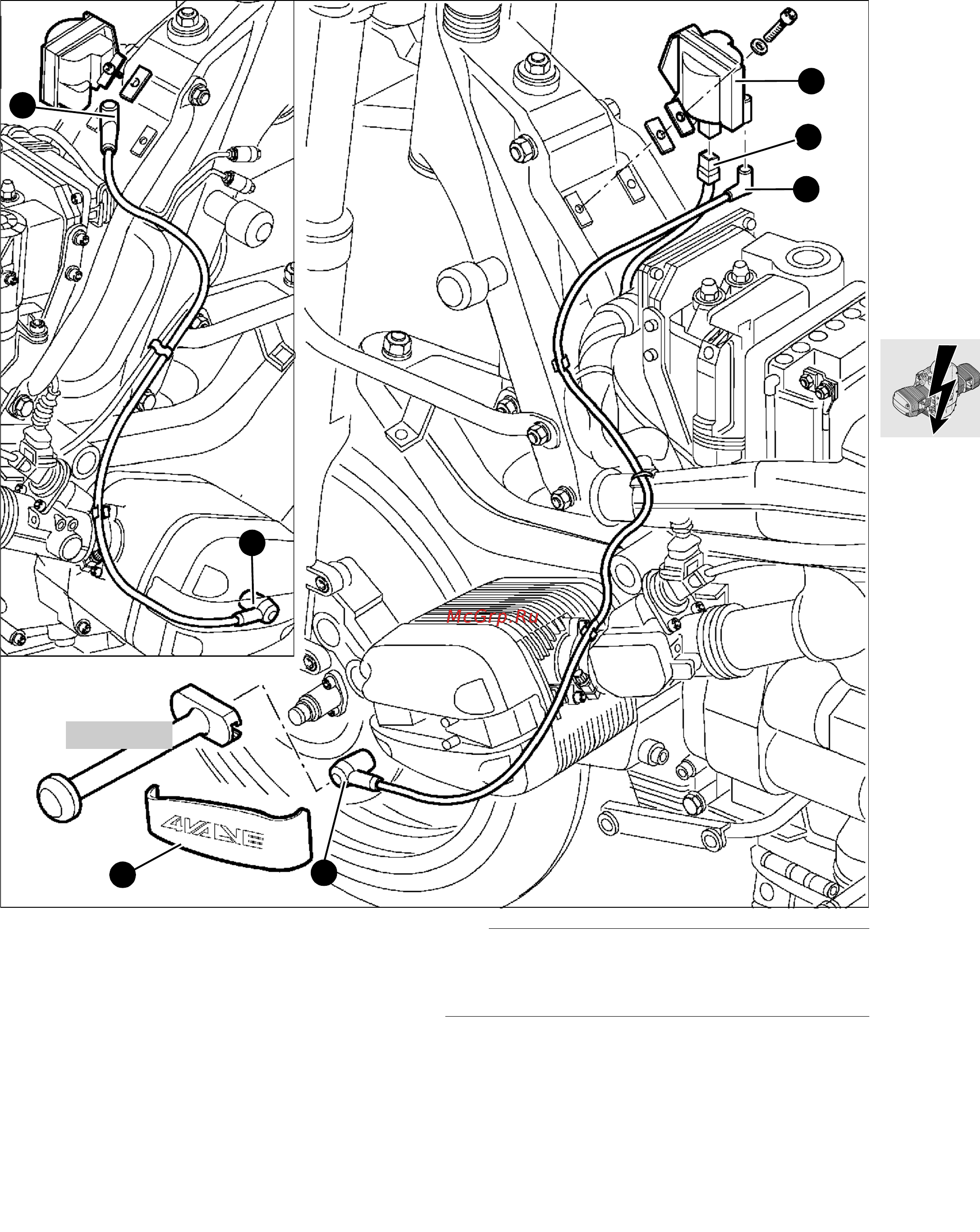

Removing and installing coil and
ignition lead
•
Remove dualseat.
•
[RS/GS/RT] Remove side sections of fairing.
•
[RS] Remove inner fairing panel at fuel tank.
•
[R] Remove tank cover.
•
Unscrew fuel tank mount.
•
Seal, loosen and pull off fuel feed and return line
with hose clip BMW No. 13 0 010.
•
Remove vent pipes.
•
Separate plug for fuel pump.
•
Remove fuel tank.
e Caution:
Switch off ignition. Disconnect ground (earth) cable
at battery and insulate it.
•
[GS/R] Detach Motronic control unit and pull it
out upwards.
•
Remove ignition coil (1).
•
Separate plug connector (2).
•
Pull off ignition lead (3).
•
Remove spark plug cover (4).
•
Remove plug cap (5) with puller,
BMW No.123520.
•
Remove ignition lead.
•
Install in the reverse order of work.
Checking ignition coil resistance
a See Technical Data.
12 3 520
4
5
1
2
3
3
5
RS120010
